Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

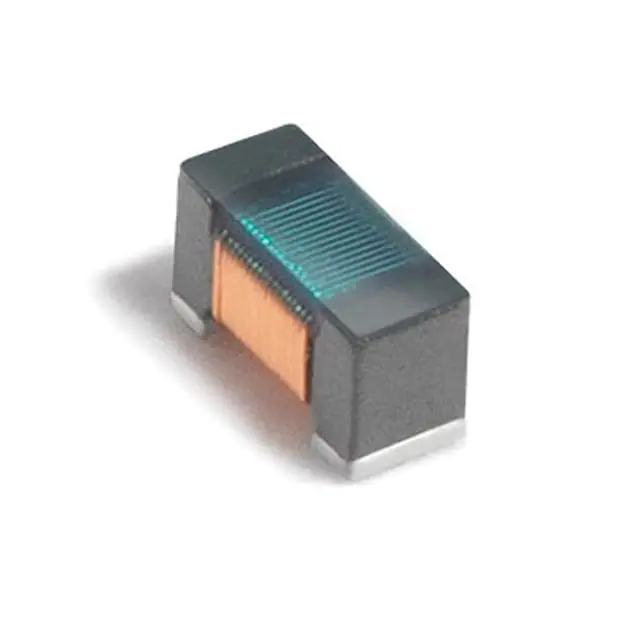

0402DF-421XJRWFIXED IND 420NH 400MA 510MOHM SM Coilcraft |
5,894 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 420 nH | ±5% | 400 mA | - | Unshielded | 510mOhm Max | - | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
1812PS-333KRCFIXED IND 33UH 1.1A 400MOHM SM Coilcraft |
5,822 |
|
Datasheet |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 33 µH | ±10% | 1.1 A | 460mA | Shielded | 400mOhm Max | 40 @ 1MHz | 30MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
0402DF-181XJRWFIXED IND 180NH 730MA 172MOHM SM Coilcraft |
5,680 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 180 nH | ±5% | 730 mA | - | Unshielded | 172mOhm Max | - | 1.68GHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
0402DF-771XJRWFIXED IND 770NH 220MA 1.35OHM SM Coilcraft |
4,923 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 770 nH | ±5% | 220 mA | - | Unshielded | 1.35Ohm Max | - | 585MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
0402DF-221XJRWFIXED IND 220NH 600MA 240MOHM SM Coilcraft |
4,883 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 220 nH | ±5% | 600 mA | - | Unshielded | 240mOhm Max | - | 1.56GHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
0402DF-901XJRWFIXED IND 900NH 230MA 1.5OHM SMD Coilcraft |
3,718 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 900 nH | ±5% | 230 mA | - | Unshielded | 1.5Ohm Max | - | 760MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
1812PS-102KRCFIXED IND 1UH 2.7A 50MOHM SM Coilcraft |
3,558 |
|
Datasheet |
1812PS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ceramic, Ferrite | 1 µH | ±10% | 2.7 A | 2.5A | Shielded | 50mOhm Max | 35 @ 1MHz | 685MHz | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | 1812 | 0.231" L x 0.196" W (5.87mm x 4.98mm) | 0.150" (3.80mm) |
|
|
0402DF-332XJRWFIXED IND 3.3UH 150MA 2.2OHM SMD Coilcraft |
2,965 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 3.3 µH | ±5% | 150 mA | - | Unshielded | 2.2Ohm Max | - | 80MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
0402DF-701XJRWFIXED IND 700NH 230MA 1.3OHM SMD Coilcraft |
2,617 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 700 nH | ±5% | 230 mA | - | Unshielded | 1.3Ohm Max | - | 600MHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
|
|
0402DF-770XJRWFIXED IND 77NH 1.1A 72 MOHM SMD Coilcraft |
2,515 |
|
Datasheet |
0402DF | 0402 (1005 Metric) | Strip | Active | Wirewound | Ferrite | 77 nH | ±5% | 1.1 A | - | Unshielded | 72mOhm Max | - | 2.05GHz | AEC-Q200 | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0402 | 0.044" L x 0.026" W (1.11mm x 0.66mm) | 0.026" (0.66mm) |
