Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

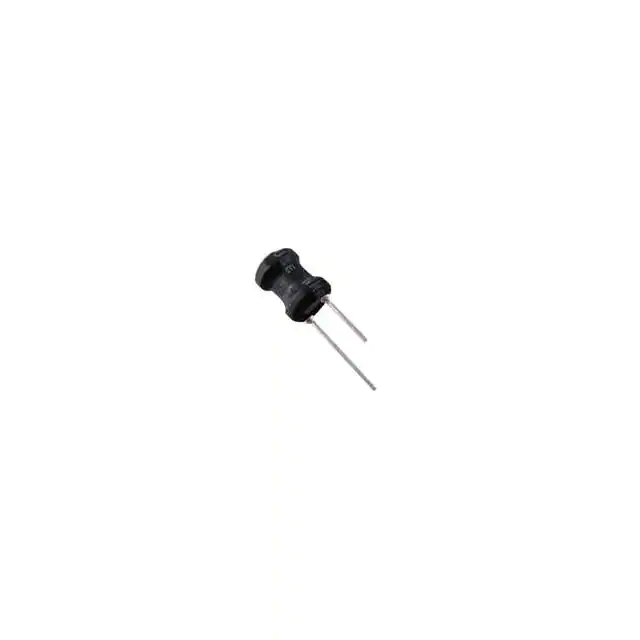

CTRLB9012F-270K27UH RADIAL FIXED INDUCTOR |
5 |
|
Datasheet |
CTRLB9012F | Radial, Vertical Cylinder | Bulk | Active | - | - | 27 µH | ±10% | 2.22 mA | - | Unshielded | 80mOhm Max | 40 @ 2.52MHz | 8.5MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
CTRLB9012F-821K820UH RADIAL FIXED INDUCTOR |
5 |
|
Datasheet |
CTRLB9012F | Radial, Vertical Cylinder | Bulk | Active | - | - | 820 µH | ±10% | 560 µA | - | Unshielded | 1.8Ohm Max | 20 @ 796kHz | 1.5MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
CTRLB9012F-4R7M4.7UH RADIAL FIXED INDUCTOR |
5 |
|
Datasheet |
CTRLB9012F | Radial, Vertical Cylinder | Bulk | Active | - | - | 4.7 µH | ±20% | 4.6 mA | - | Unshielded | 30mOhm Max | 20 @ 7.96MHz | 51MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
CTRLB9012F-472K4700UH RADIAL FIXED INDUCTOR |
5 |
|
Datasheet |
CTRLB9012F | Radial, Vertical Cylinder | Bulk | Active | - | - | 4.7 mH | ±10% | 240 µA | - | Unshielded | 13.6Ohm Max | 15 @ 252kHz | 500kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
CTRLB9012F-123K12000UH RADIAL FIXED INDUCTR |
5 |
|
Datasheet |
CTRLB9012F | Radial, Vertical Cylinder | Bulk | Active | - | - | 12 mH | ±10% | 150 µA | - | Unshielded | 34.7Ohm Max | 15 @ 79.6kHz | 280kHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
CTRLB9012F-151K150UH RADIAL FIXED INDUCTOR |
5 |
|
Datasheet |
CTRLB9012F | Radial, Vertical Cylinder | Bulk | Active | - | - | 150 µH | ±10% | 1.15 mA | - | Unshielded | 370mOhm Max | 20 @ 796kHz | 3.2MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
|
CTRLB9012F-100K10UH RADIAL FIXED INDUCTOR |
5 |
|
Datasheet |
CTRLB9012F | Radial, Vertical Cylinder | Bulk | Active | - | - | 10 µH | ±10% | 3.4 mA | - | Unshielded | 45mOhm Max | 50 @ 2.52MHz | 14MHz | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 0.354" Dia (9.00mm) | 0.480" (12.20mm) |
|
CTSPI3D12F-100MSMD SHIELDED POWER INDUCTOR |
5 |
|
Datasheet |
CTSPI3D12F | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 900 mA | 860mA | Shielded | 327mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.049" (1.25mm) |
|
|
CTSPI3D12F-1R2MSMD SHIELDED POWER INDUCTOR |
5 |
|
Datasheet |
CTSPI3D12F | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.2 µH | ±20% | 1.9 A | 2.2A | Shielded | 48mOhm | - | - | - | -40°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.165" L x 0.165" W (4.20mm x 4.20mm) | 0.049" (1.25mm) |
|
CTMMP2212F-1R0MSMD Shielded Power Inductor |
20 |
|
Datasheet |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 11 A | - | Shielded | 15mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.118" (3.00mm) |
|
|
CTMMP2212F-4R7MSMD Shielded Power Inductor |
15 |
|
Datasheet |
- | - | Bulk | Active | - | - | 4.7 µH | ±20% | 6 A | - | Shielded | 60mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.118" (3.00mm) |
|
|
CTMMP2212F-2R2MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 2.2 µH | ±20% | 8 A | - | Shielded | 35mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.213" L x 0.224" W (5.40mm x 5.70mm) | 0.118" (3.00mm) |
|
CTMC1812SF-2R2JSMD FERRITE CORE WW INDUCTOR |
10 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 380 mA | - | Unshielded | 700mOhm Max | 50 @ 7.96MHz | 160MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-R10KSMD FERRITE CORE WW INDUCTOR |
10 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±10% | 800 mA | - | Unshielded | 180mOhm Max | 35 @ 25.2MHz | 780MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-680JSMD FERRITE CORE WW INDUCTOR |
10 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±5% | 130 mA | - | Unshielded | 6Ohm Max | 50 @ 2.52MHz | 9.5MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-270JSMD FERRITE CORE WW INDUCTOR |
10 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±5% | 170 mA | - | Unshielded | 3.6Ohm Max | 50 @ 2.52MHz | 13MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-R18KSMD FERRITE CORE WW INDUCTOR |
10 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±10% | 700 mA | - | Unshielded | 240mOhm Max | 35 @ 25.2MHz | 570MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-330JSMD FERRITE CORE WW INDUCTOR |
10 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 160 mA | - | Unshielded | 4Ohm Max | 50 @ 2.52MHz | 12MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-2R7JSMD FERRITE CORE WW INDUCTOR |
10 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±5% | 370 mA | - | Unshielded | 750mOhm Max | 50 @ 7.96MHz | 150MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-R22KSMD FERRITE CORE WW INDUCTOR |
10 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 665 mA | - | Unshielded | 250mOhm Max | 40 @ 25.2MHz | 505MHz | - | -40°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
