Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTMC1812SF-121JSMD FERRITE CORE WW INDUCTOR |
10 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±5% | 110 mA | - | Unshielded | 8Ohm Max | 40 @ 796kHz | 7MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-1R8JSMD FERRITE CORE WW INDUCTOR |
10 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±5% | 390 mA | - | Unshielded | 650mOhm Max | 50 @ 7.96MHz | 190MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-1R5JSMD FERRITE CORE WW INDUCTOR |
10 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±5% | 410 mA | - | Unshielded | 600mOhm Max | 50 @ 7.96MHz | 210MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-181JSMD FERRITE CORE WW INDUCTOR |
10 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±5% | 102 mA | - | Unshielded | 9.5Ohm Max | 40 @ 796kHz | 5.5MHz | - | -40°C ~ 125°C | 796 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-1R0JSMD FERRITE CORE WW INDUCTOR |
10 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 450 mA | - | Unshielded | 500mOhm Max | 50 @ 7.96MHz | 250MHz | - | -40°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
|
CTMC1812SF-180JSMD FERRITE CORE WW INDUCTOR |
10 |
|
Datasheet |
CTMC1812SF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±5% | 190 mA | - | Unshielded | 2.8Ohm Max | 50 @ 2.52MHz | 16MHz | - | -40°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
CTMMP1307AF-100MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 10 µH | ±20% | 1.6 A | - | Shielded | 366mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.071" (1.80mm) |
|
|
CTMMP1307AF-2R2MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 2.2 µH | ±20% | 3.7 A | - | Shielded | 65mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.071" (1.80mm) |
|
|
CTMMP1307AF-6R8MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 6.8 µH | ±20% | 2.2 A | - | Shielded | 260mOhm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.071" (1.80mm) |
|
|
CTMMP2906F-6R8MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 6.8 µH | ±20% | 3.5 A | - | Shielded | 110mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.063" (1.60mm) |
|
|
CTMMP2906F-4R7MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 4.7 µH | ±20% | 5 A | - | Shielded | 72mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.063" (1.60mm) |
|
|
CTMMP2906F-2R2MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 2.2 µH | ±20% | 8 A | - | Shielded | 35mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.063" (1.60mm) |
|
|
CTMMP2906F-1R0MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 1 µH | ±20% | 10 A | - | Shielded | 17mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.063" (1.60mm) |
|
|
CTMMP2906F-3R3MSMD Shielded Power Inductor |
10 |
|
Datasheet |
- | - | Bulk | Active | - | - | 3.3 µH | ±20% | 8 A | - | Shielded | 60mOhm | - | - | - | -55°C ~ 125°C | - | - | Surface Mount | - | 0.260" L x 0.287" W (6.60mm x 7.30mm) | 0.063" (1.60mm) |
|
CTLQ1812NF-121J120UH 150MA SMD WW INDUCTOR |
8 |
|
Datasheet |
CTLQ1812NF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 120 µH | ±5% | 150 mA | - | Unshielded | 3Ohm Max | 40 @ 796kHz | 6.2MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|
|
CTLQ1812NF-681J680UH 65MA SMD WW INDUCTOR |
5 |
|
Datasheet |
CTLQ1812NF | 1812 (4532 Metric) | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±5% | 65 mA | - | Unshielded | 17Ohm Max | 40 @ 796kHz | 2.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.110" (2.80mm) |
|

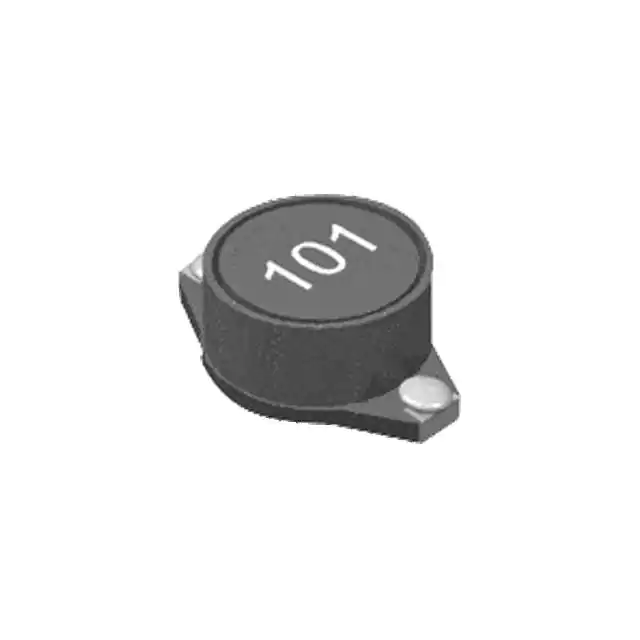

CTDSS1005F-225MOLDED POWER INDUCTOR |
10 |
|
Datasheet |
CTDSS1005F | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 mH | - | 100 mA | - | Shielded | 6.5Ohm Max | 55 @ 252kHz | 1MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.201" (5.10mm) |
|
|
CTDSS1005F-275MOLDED POWER INDUCTOR |
10 |
|
Datasheet |
CTDSS1005F | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.7 mH | - | 100 mA | - | Shielded | 8.6Ohm Max | 55 @ 252kHz | 1MHz | - | -25°C ~ 105°C | 1 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.201" (5.10mm) |
|
CTDO3308PF-224220UH SMD POWER INDUCTOR |
19 |
|
Datasheet |
CTDO3308PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 510 mA | 560mA | Unshielded | 1.06Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
|
|
CTDO3308PF-68368UH SMD POWER INDUCTOR |
15 |
|
Datasheet |
CTDO3308PF | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 900 mA | 1.1A | Unshielded | 540mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.118" (3.00mm) |
