High Frequency (RF) Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Coil Voltage | Operate Time | Release Time | Features | Operating Temperature | Mounting Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ARE134HRELAY RF SPDT 500MA 4.5V |
4,985 |
|
Datasheet |
ARE | Tube | Obsolete | Non Latching | 44.4 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 4.5VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Through Hole | PC Pin |
|
ARE13A12RELAY RF SPDT 500MA 12V |
3,187 |
|
Datasheet |
ARE | Tube | Obsolete | Non Latching | 16.7 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 12VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
G6Z-1P DC12RELAY RF SPDT 10MA 12V |
4,984 |
|
Datasheet |
G6Z | Tube | Obsolete | Non Latching | 16.7 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 12VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
G6Z-1P DC24RELAY RF SPDT 10MA 24V |
4,357 |
|
Datasheet |
G6Z | Tube | Obsolete | Non Latching | 8.3 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 18 VDC | 2.4 VDC | 24VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
G6Z-1PE DC5RELAY RF SPDT 10MA 5V |
4,833 |
|
Datasheet |
G6Z | Tube | Obsolete | Non Latching | 40 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | 0.5 VDC | 5VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
G6Z-1PE DC12RELAY RF SPDT 10MA 12V |
3,093 |
|
Datasheet |
G6Z | Tube | Obsolete | Non Latching | 16.7 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 12VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
G6Z-1PE DC24RELAY RF SPDT 10MA 24V |
4,970 |
|
Datasheet |
G6Z | Tube | Obsolete | Non Latching | 8.3 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 18 VDC | 2.4 VDC | 24VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Through Hole | PC Pin |
|
G6Z-1F DC5RELAY RF SPDT 10MA 5V |
4,566 |
|
Datasheet |
G6Z | Tube | Obsolete | Non Latching | 40 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | 0.5 VDC | 5VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
|
G6Z-1F DC12RELAY RF SPDT 10MA 12V |
2,920 |
|
Datasheet |
G6Z | Tube | Obsolete | Non Latching | 16.7 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 12VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
|
G6Z-1FE DC5RELAY RF SPDT 10MA 5V |
4,906 |
|
Datasheet |
G6Z | Tube | Obsolete | Non Latching | 40 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | 0.5 VDC | 5VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
|
G6Z-1FE DC12RELAY RF SPDT 10MA 12V |
4,767 |
|
Datasheet |
G6Z | Tube | Obsolete | Non Latching | 16.7 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 12VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
|
G6Z-1FE DC24RELAY RF SPDT 10MA 24V |
4,116 |
|
Datasheet |
G6Z | Tube | Obsolete | Non Latching | 8.3 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 18 VDC | 2.4 VDC | 24VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Surface Mount | Gull Wing |
|

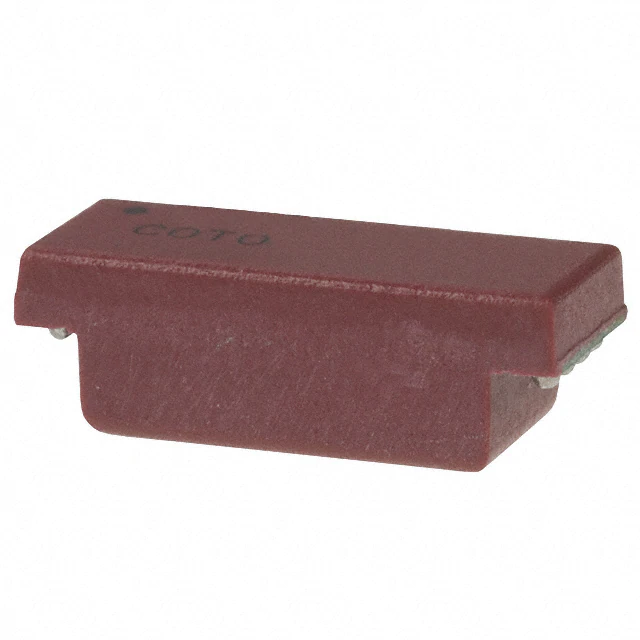

B10-05BRELAY RF SPST-NO 250MA 5V |
4,280 |
|
Datasheet |
B10 | Tube | Obsolete | Non Latching | 33.3 mA | SPST-NO (1 Form A) | 250 mA | 125VAC, 125VDC - Max | 3.8 VDC | 0.4 VDC | 5VDC | 0.1 ms | 0.03 ms | - | -20°C ~ 85°C | Surface Mount | BGA |
|
B40-0002BRELAY RF SPST-NO X 4 250MA 3.3V |
4,052 |
|
Datasheet |
B40 | Tube | Obsolete | Non Latching | 60 mA | SPST-NO (1 Form A) x 4 | 250 mA | 125VAC, 125VDC - Max | 2.4 VDC | 0.4 VDC | 3.3VDC | 0.1 ms | 0.03 ms | - | -20°C ~ 85°C | Surface Mount | BGA |
|
9814-03-10RELAY RF SPST-NO 250MA 3.3V |
2,420 |
|
Datasheet |
9800 | Tube | Obsolete | Non Latching | 47.1 mA | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 2.5 VDC | 0.4 VDC | 3.3VDC | 0.25 ms | 0.05 ms | Magnetic Shield | -20°C ~ 85°C | Surface Mount | Axial |
|
|

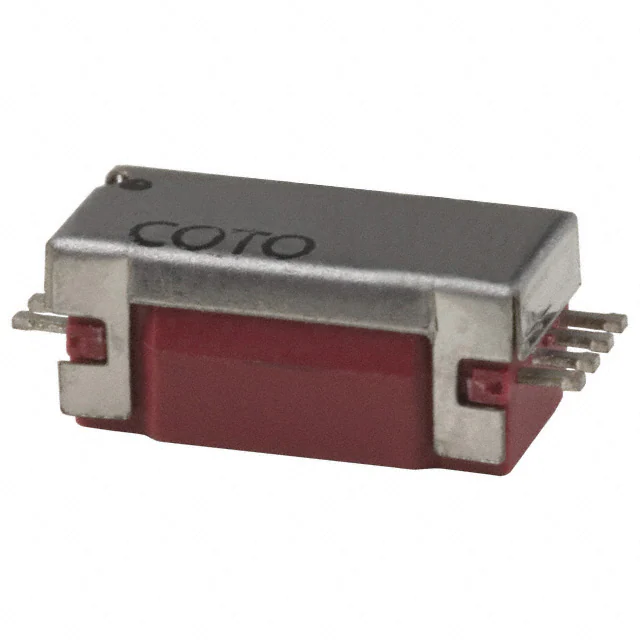

9814-05-10RELAY RF SPST-NO 250MA 5V |
3,947 |
|
Datasheet |
9800 | Tube | Obsolete | Non Latching | 33.3 mA | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 5VDC | 0.25 ms | 0.05 ms | Magnetic Shield | -20°C ~ 85°C | Surface Mount | Axial |
|
9852-03-00RELAY RF SPDT 100MA 3.3V |
4,471 |
|
Datasheet |
9800 | Tube | Obsolete | Non Latching | 47.1 mA | SPDT (1 Form C) | 100 mA | 30VAC, 30VDC - Max | 2.5 VDC | 0.4 VDC | 3.3VDC | 1 ms | 1 ms | Magnetic Shield | -20°C ~ 85°C | Surface Mount | Gull Wing |
|
9852-03-20RELAY RF SPDT 100MA 3.3V |
2,515 |
|
Datasheet |
9800 | Tube | Obsolete | Non Latching | 47.1 mA | SPDT (1 Form C) | 100 mA | 30VAC, 30VDC - Max | 2.5 VDC | 0.4 VDC | 3.3VDC | 1 ms | 1 ms | Magnetic Shield | -20°C ~ 85°C | Surface Mount | J Lead |
|
|
9852-05-10RELAY RF SPDT 100MA 5V |
3,163 |
|
Datasheet |
9800 | Tube | Obsolete | Non Latching | 45.5 mA | SPDT (1 Form C) | 100 mA | 30VAC, 30VDC - Max | 3.8 VDC | 0.4 VDC | 5VDC | 1 ms | 1 ms | Magnetic Shield | -20°C ~ 85°C | Surface Mount | Axial |
|
|
G6Z-1FE-A DC24RELAY RF SPDT 10MA 24V |
3,269 |
|
Datasheet |
G6Z | Bulk | Obsolete | Non Latching | 8.3 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 18 VDC | 2.4 VDC | 24VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Surface Mount | Gull Wing |
