High Frequency (RF) Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Coil Voltage | Operate Time | Release Time | Features | Operating Temperature | Mounting Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1617104-9RELAY RF DPDT 1A 5V |
3,591 |
|
- |
MW6, CII | Bulk | Obsolete | Non Latching | 100 mA | DPDT (2 Form C) | 1 A | 28VDC - Nom | 3.6 VDC | - | 5VDC | 4 ms | 3 ms | - | -55°C ~ 85°C | Through Hole | PC Pin |
|
|
1-1617100-2RELAY RF DPDT 1A 18V |
2,595 |
|
- |
MW4HP, CII | Bulk | Obsolete | Non Latching | 20 mA | DPDT (2 Form C) | 1 A | 28VDC - Nom | 10.5 VDC | 0.9 VDC | 18VDC | 2 ms | 1.5 ms | - | -65°C ~ 125°C | Through Hole | PC Pin |
|
|
1617107-2RELAY RF DPDT 1A 12V |
3,205 |
|
- |
MW6S, CII | Bulk | Obsolete | Non Latching | 14 mA | DPDT (2 Form C) | 1 A | 28VDC - Nom | 9 VDC | - | 12VDC | 4 ms | 2 ms | - | -65°C ~ 125°C | Through Hole | PC Pin |
|
|
MW6HP-18PRELAY RF DPDT 1A 18V |
3,238 |
|
Datasheet |
MW6HP, CII | Bulk | Active | Non Latching | 20 mA | DPDT (2 Form C) | 1 A | 28VDC - Nom | 10.5 VDC | 0.9 VDC | 18VDC | 2 ms | 1.5 ms | - | -65°C ~ 125°C | Through Hole | PC Pin |
|
|
MW6HP-5PRELAY RF DPDT 1A 5V |
4,578 |
|
- |
MW6HP, CII | Bulk | Active | Non Latching | 100 mA | DPDT (2 Form C) | 1 A | 28VDC - Nom | 2.7 VDC | 0.22 VDC | 5VDC | 2 ms | 1.5 ms | - | -65°C ~ 125°C | Through Hole | PC Pin |
|

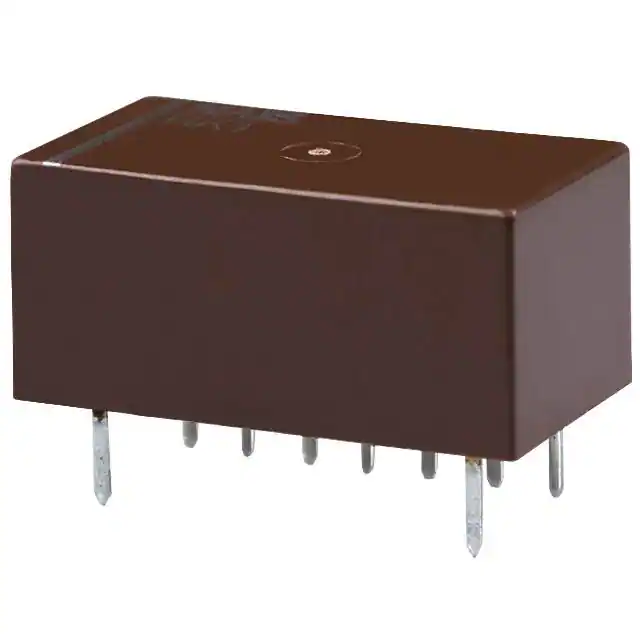

RK1-5VRELAY RF SPDT 10MA 5V |
2,170 |
|
Datasheet |
RK | Tube | Obsolete | Non Latching | 40 mA | SPDT (1 Form C) | 10 mA | 30VDC - Max | 3.75 VDC | 0.5 VDC | 5VDC | 10 ms | 6 ms | Sealed - Fully | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
RK1-12VRELAY RF SPDT 10MA 12V |
4,122 |
|
Datasheet |
RK | Tube | Obsolete | Non Latching | 16.7 mA | SPDT (1 Form C) | 10 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 12VDC | 10 ms | 6 ms | Sealed - Fully | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
RK1-24VRELAY RF SPDT 10MA 24V |
3,098 |
|
Datasheet |
RK | Tube | Obsolete | Non Latching | 8.3 mA | SPDT (1 Form C) | 10 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 24VDC | 10 ms | 6 ms | Sealed - Fully | -40°C ~ 70°C | Through Hole | PC Pin |
|

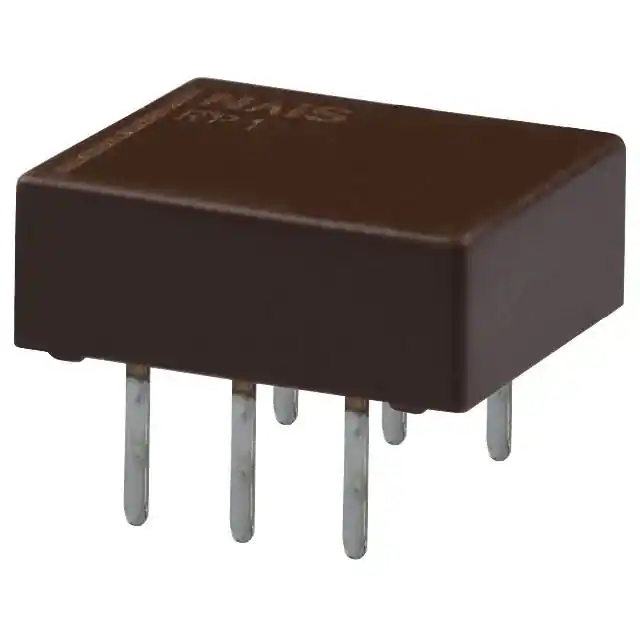

RP1-5VRELAY RF SPDT 100MA 5V |
4,127 |
|
Datasheet |
RP | Tube | Obsolete | Non Latching | 28.1 mA | SPDT (1 Form C) | 100 mA | 30VDC - Nom | 3.75 VDC | 0.5 VDC | 5VDC | 3 ms | 2 ms | - | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
RP1-12VRELAY RF SPDT 100MA 12V |
3,337 |
|
Datasheet |
RP | Tube | Obsolete | Non Latching | 11.7 mA | SPDT (1 Form C) | 100 mA | 30VDC - Nom | 9 VDC | 1.2 VDC | 12VDC | 3 ms | 2 ms | - | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
RP1-24VRELAY RF SPDT 100MA 24V |
2,303 |
|
Datasheet |
RP | Tube | Obsolete | Non Latching | 11.3 mA | SPDT (1 Form C) | 100 mA | 30VDC - Nom | 18 VDC | 2.4 VDC | 24VDC | 3 ms | 2 ms | - | -40°C ~ 70°C | Through Hole | PC Pin |
|
9802-05-00RELAY RF SPST-NO 250MA 5V |
2,507 |
|
Datasheet |
9800 | Bulk | Obsolete | Non Latching | 33.3 mA | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 5VDC | 0.25 ms | 0.05 ms | Magnetic Shield | -20°C ~ 85°C | Surface Mount | Gull Wing |
|

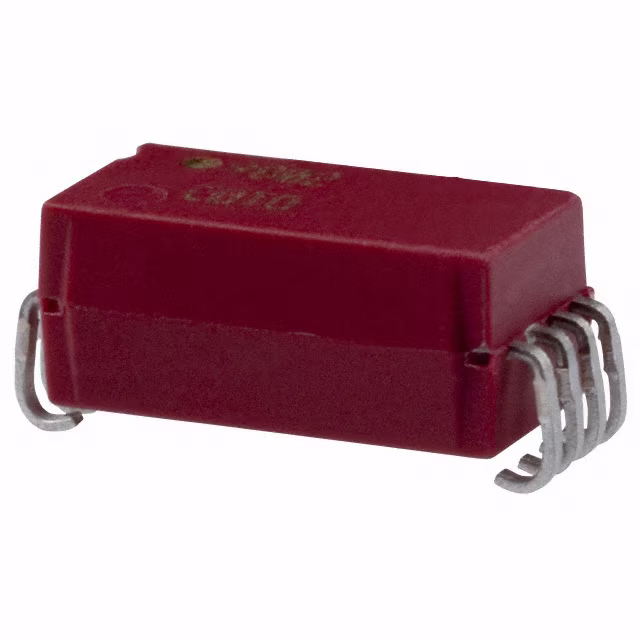

9802-05-20RELAY RF SPST-NO 250MA 5V |
3,627 |
|
Datasheet |
9800 | Tube | Obsolete | Non Latching | 33.3 mA | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 5VDC | 0.25 ms | 0.05 ms | Magnetic Shield | -20°C ~ 85°C | Surface Mount | J Lead |
|
9290-12-00RELAY RF SPST-NO 500MA 12V |
2,611 |
|
Datasheet |
9290 | Bulk | Active | Non Latching | 20 mA | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 12VDC | 0.4 ms | 0.1 ms | Magnetic Shield | -20°C ~ 85°C | Surface Mount | Gull Wing |
|
9802-05-10RELAY RF SPST-NO 250MA 5V |
3,176 |
|
Datasheet |
9800 | Tube | Obsolete | Non Latching | 33.3 mA | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 5VDC | 0.25 ms | 0.05 ms | Magnetic Shield | -20°C ~ 85°C | Surface Mount | Axial |
|

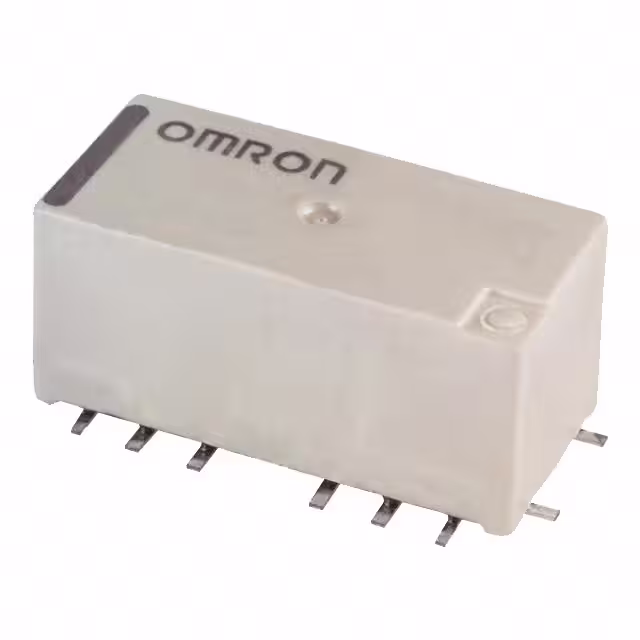

G6W-1F DC12RELAY RF SPDT 10MA 12V |
3,048 |
|
Datasheet |
G6W | Bulk | Obsolete | Non Latching | 16.7 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9.6 VDC | 1.2 VDC | 12VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
|
G6W-1F DC24RELAY RF SPDT 10MA 24V |
3,714 |
|
Datasheet |
G6W | Bulk | Obsolete | Non Latching | 8.3 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 19.2 VDC | 2.4 VDC | 24VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
|
G6W-1F DC4.5RELAY RF SPDT 10MA 4.5V |
4,422 |
|
Datasheet |
G6W | Bulk | Obsolete | Non Latching | 44.4 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.6 VDC | 0.45 VDC | 4.5VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Surface Mount | Gull Wing |
|

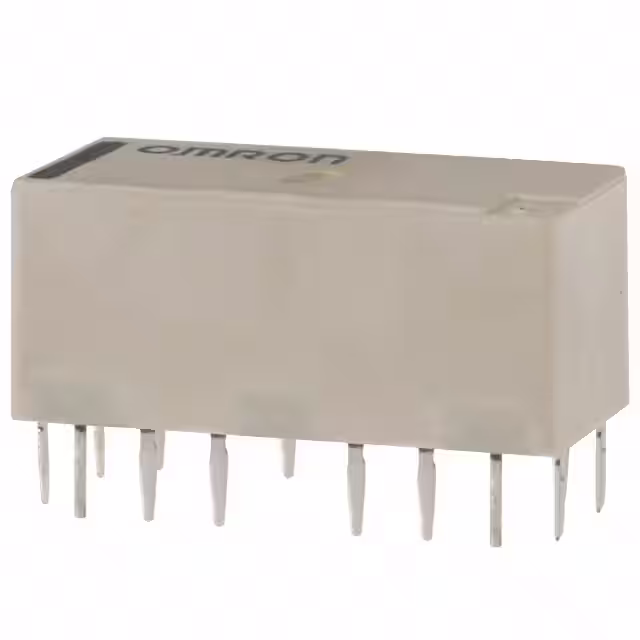

G6W-1P DC24RELAY RF SPDT 10MA 24V |
2,969 |
|
Datasheet |
G6W | Bulk | Obsolete | Non Latching | 8.3 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 19.2 VDC | 2.4 VDC | 24VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Through Hole | PC Pin |
|

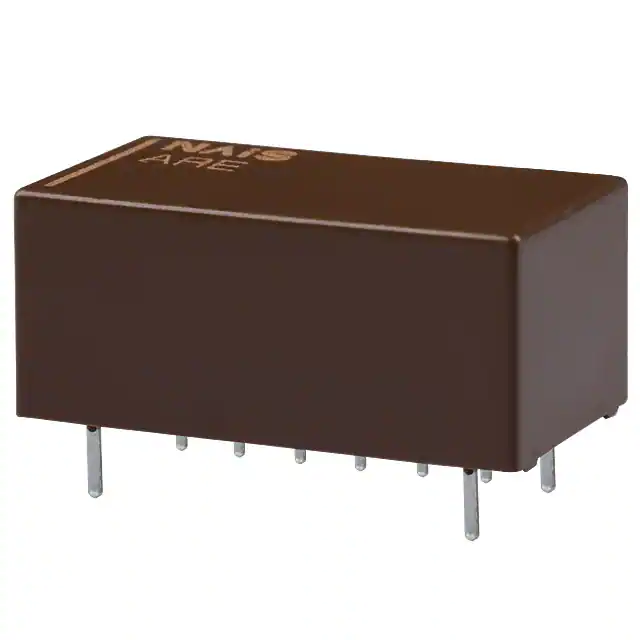

ARE1312RELAY RF SPDT 500MA 12V |
2,578 |
|
Datasheet |
ARE | Bulk | Obsolete | Non Latching | 16.7 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 12VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Through Hole | PC Pin |
