High Frequency (RF) Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Coil Voltage | Operate Time | Release Time | Features | Operating Temperature | Mounting Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G6ZU-1FE-A DC9RELAY RF SPDT 10MA 9V |
4,311 |
|
Datasheet |
G6Z | Tube | Obsolete | Latching, Single Coil | 22.2 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 6.75 VDC | - | 9VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
G6ZU-1P-A DC12RELAY RF SPDT 10MA 12V |
4,603 |
|
Datasheet |
G6Z | Tube | Obsolete | Latching, Single Coil | 16.7 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | - | 12VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
G6ZU-1PE-A DC12RELAY RF SPDT 10MA 12V |
2,082 |
|
Datasheet |
G6Z | Tube | Obsolete | Latching, Single Coil | 16.7 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | - | 12VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
G6ZU-1PE DC12RELAY RF SPDT 10MA 12V |
3,601 |
|
Datasheet |
G6Z | Tube | Obsolete | Latching, Single Coil | 16.7 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | - | 12VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
G6ZU-1PE DC4.5RELAY RF SPDT 10MA 4.5V |
3,758 |
|
Datasheet |
G6Z | Tube | Obsolete | Latching, Single Coil | 44.4 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.38 VDC | - | 4.5VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Through Hole | PC Pin |
|
9002-12-10RELAY RF SPST-NO 500MA 12V |
2,988 |
|
Datasheet |
9000 | Tube | Obsolete | Non Latching | 16 mA | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 12VDC | 0.35 ms | 0.1 ms | Magnetic Shield | -20°C ~ 85°C | Through Hole | PC Pin |
|
|
9002-05-02RELAY RF SPST-NC 500MA 5V |
4,667 |
|
Datasheet |
9000 | Tube | Obsolete | Non Latching | 14.3 mA | SPST-NC (1 Form B) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 5VDC | 0.35 ms | 0.1 ms | - | -20°C ~ 85°C | Through Hole | PC Pin |
|
|
9402-05-10RELAY RF SPST-NO 500MA 5V |
3,368 |
|
Datasheet |
9400 | Tube | Obsolete | Non Latching | 25 mA | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 5VDC | 0.4 ms | 0.2 ms | - | -20°C ~ 85°C | Surface Mount | Axial |
|
9402-12-30RELAY RF SPST-NO 500MA 12V |
3,842 |
|
Datasheet |
9400 | Tube | Obsolete | Non Latching | 14.5 mA | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 12VDC | 0.4 ms | 0.2 ms | - | -20°C ~ 85°C | Through Hole | PC Pin |
|
|
9402-12-10RELAY RF SPST-NO 500MA 12V |
4,107 |
|
Datasheet |
9400 | Tube | Obsolete | Non Latching | 14.5 mA | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 12VDC | 0.4 ms | 0.2 ms | - | -20°C ~ 85°C | Surface Mount | Axial |
|
|
9402-05-30RELAY RF SPST-NO 500MA 5V |
4,005 |
|
Datasheet |
9400 | Tube | Obsolete | Non Latching | 25 mA | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 3.75 VDC | 0.4 VDC | 5VDC | 0.4 ms | 0.2 ms | - | -20°C ~ 85°C | Through Hole | PC Pin |
|
|
9903-05-00RELAY RF SPST-NO 250MA 5V |
2,704 |
|
Datasheet |
9900 | Tube | Obsolete | Non Latching | 33.3 mA | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 5VDC | 0.25 ms | 0.05 ms | Magnetic Shield | -20°C ~ 85°C | Surface Mount | Gull Wing |
|
|
9903-05-10RELAY RF SPST-NO 250MA 5V |
2,505 |
|
Datasheet |
9900 | Tube | Obsolete | Non Latching | 33.3 mA | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 3.8 VDC | 0.4 VDC | 5VDC | 0.25 ms | 0.05 ms | Magnetic Shield | -20°C ~ 85°C | Surface Mount | Axial |
|
ARE104HRELAY RF SPDT 500MA 4.5V |
2,417 |
|
Datasheet |
ARE | Box | Obsolete | Non Latching | 44.4 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 4.5VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Through Hole | PC Pin |
|

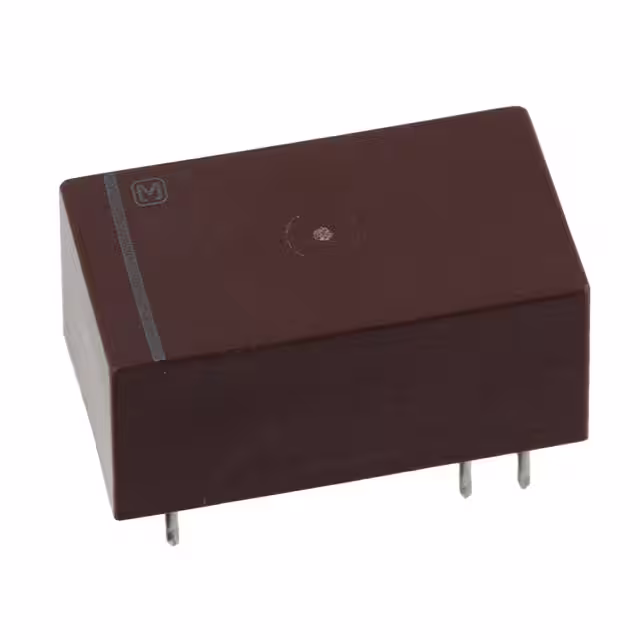

RK1-L2-12VRELAY RF SPDT 10MA 12V |
2,569 |
|
Datasheet |
RK | Tube | Obsolete | Latching, Dual Coil | 33.3 mA | SPDT (1 Form C) | 10 mA | 30VDC - Max | 9 VDC | - | 12VDC | 10 ms | 6 ms | Sealed - Fully | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
HF24-1A54-9RELAY RF SPST-NO 1.5 A 24V |
3,595 |
|
Datasheet |
HF | Bulk | Active | Non Latching | 24 mA | SPST-NO (1 Form A) | 1.5 A | 500VAC, 500VDC - Max | 16.8 VDC | 3.6 VDC | 24VDC | 3 ms | 1 ms | - | -40°C ~ 85°C | Through Hole | PC Pin |
|
|
MW6-12PRELAY RF DPDT 1A 12V |
2,268 |
|
- |
MW6, CII | Bulk | Active | Non Latching | 31 mA | DPDT (2 Form C) | 1 A | 28VDC - Nom | 8.4 VDC | - | 12VDC | 4 ms | 3 ms | - | -55°C ~ 85°C | Through Hole | PC Pin |
|
|
ARE1012RELAY RF SPDT 500MA 12V |
4,555 |
|
Datasheet |
ARE | Bulk | Obsolete | Non Latching | 16.7 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 12VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
G6Z-1F-A-TR DC5RELAY RF SPDT 10MA 5V |
4,967 |
|
Datasheet |
G6Z | Tape & Reel (TR) | Active | Non Latching | 40 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 3.75 VDC | 0.5 VDC | 5VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
|
G6Z-1F-R-TR DC12RELAY RF SPDT 10MA 12V |
3,172 |
|
Datasheet |
G6Z | Tape & Reel (TR) | Active | Non Latching | 16.7 mA | SPDT (1 Form C) | 10 mA | 30VAC, 30VDC - Max | 9 VDC | 1.2 VDC | 12VDC | 10 ms | 10 ms | Sealed - Fully | -40°C ~ 70°C | Surface Mount | Gull Wing |
