High Frequency (RF) Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Coil Type | Coil Current | Contact Form | Contact Rating (Current) | Switching Voltage | Must Operate Voltage | Must Release Voltage | Coil Voltage | Operate Time | Release Time | Features | Operating Temperature | Mounting Style | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

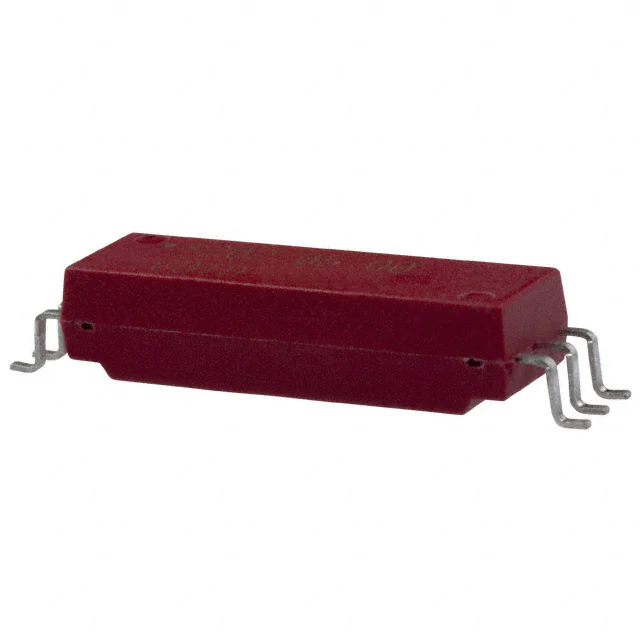

9202-12-00TRRELAY RF SPST-NO 500MA 12V |
4,551 |
|
Datasheet |
9200 | Tape & Reel (TR) | Active | Non Latching | 18.5 mA | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 9 VDC | 1 VDC | 12VDC | 0.4 ms | 0.1 ms | Sealed - Hermetically | -20°C ~ 85°C | Surface Mount | Gull Wing |
|
MW3-5ARELAY RF 5A 3GHZ HIGH FREQ |
3,835 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MW6S-26PRELAY RF 26P 6GHZ SENSITIVE |
3,525 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ARE13A03C90RELAY RF SPDT 500MA 3V |
4,120 |
|
Datasheet |
ARE | Tube | Obsolete | Non Latching | 66.7 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | 0.3 VDC | 3VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
|
ARE1324C90RELAY RF SPDT 500MA 24V |
2,025 |
|
Datasheet |
ARE | Tray | Obsolete | Non Latching | 8.3 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 24VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
ARE1309C90RELAY RF SPDT 500MA 9V |
4,767 |
|
Datasheet |
ARE | Tray | Obsolete | Non Latching | 22.2 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 6.75 VDC | 0.9 VDC | 9VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
ARE13A03ZC90RELAY RF SPDT 500MA 3V |
3,757 |
|
Datasheet |
ARE | Tape & Reel (TR) | Obsolete | Non Latching | 66.7 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | 0.3 VDC | 3VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
|
ARE1009C90RELAY RF SPDT 500MA 9V |
2,485 |
|
Datasheet |
ARE | Tray | Obsolete | Non Latching | 22.2 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 6.75 VDC | 0.9 VDC | 9VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
ARE1012C90RELAY RF SPDT 500MA 12V |
2,154 |
|
Datasheet |
ARE | Tray | Obsolete | Non Latching | 16.7 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 12VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
ARE13A09C90RELAY RF SPDT 500MA 9V |
4,319 |
|
Datasheet |
ARE | Tube | Obsolete | Non Latching | 22.2 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 6.75 VDC | 0.9 VDC | 9VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
|
ARE10A12C90RELAY RF SPDT 500MA 12V |
4,131 |
|
Datasheet |
ARE | Tube | Obsolete | Non Latching | 16.7 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 12VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
|
ARE13A24C90RELAY RF SPDT 500MA 24V |
2,695 |
|
Datasheet |
ARE | Tube | Obsolete | Non Latching | 8.3 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 24VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
|
ARE13A12C90RELAY RF SPDT 500MA 12V |
2,084 |
|
Datasheet |
ARE | Tube | Obsolete | Non Latching | 16.7 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 12VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
|
ARE1024C90RELAY RF SPDT 500MA 24V |
3,336 |
|
Datasheet |
ARE | Tray | Obsolete | Non Latching | 8.3 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 24VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
ARE134HC90RELAY RF SPDT 500MA 4.5V |
2,428 |
|
Datasheet |
ARE | Tray | Obsolete | Non Latching | 44.4 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 3.38 VDC | 0.45 VDC | 4.5VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Through Hole | PC Pin |
|
|
ARE10A09C90RELAY RF SPDT 500MA 9V |
3,132 |
|
Datasheet |
ARE | Tube | Obsolete | Non Latching | 22.2 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 6.75 VDC | 0.9 VDC | 9VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
|
ARE10A24C90RELAY RF SPDT 500MA 24V |
3,378 |
|
Datasheet |
ARE | Tube | Obsolete | Non Latching | 8.3 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 24VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
|
ARE10A12ZC90RELAY RF SPDT 500MA 12V |
2,492 |
|
Datasheet |
ARE | Tape & Reel (TR) | Obsolete | Non Latching | 16.7 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 9 VDC | 1.2 VDC | 12VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
|
ARE13A24ZC90RELAY RF SPDT 500MA 24V |
3,329 |
|
Datasheet |
ARE | Tape & Reel (TR) | Obsolete | Non Latching | 8.3 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 18 VDC | 2.4 VDC | 24VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Surface Mount | Gull Wing |
|
|
ARE1303C90RELAY RF SPDT 500MA 3V |
4,167 |
|
Datasheet |
ARE | Tray | Obsolete | Non Latching | 66.7 mA | SPDT (1 Form C) | 500 mA | 30VDC - Max | 2.25 VDC | 0.3 VDC | 3VDC | 10 ms | 5 ms | - | -40°C ~ 70°C | Through Hole | PC Pin |
