Force Sensors, Load Cells - Industrial
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Operating Force | Output | Accuracy | Voltage - Supply | Actuator Type | Actuator Style/Size | Includes | Sensor Type | Operating Temperature | Compensated Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SEN-13329LOAD CELL - 10KG STRAIGHT BAR TA |
486 |
|
- |
10.00kgf (22lbs) | Resistive | ±0.05% | - | 5V ~ 10V | Diaphragm | - | Load Cell | Sensor | -10°C ~ 55°C | |
|
SEN-14727MINI LOAD CELL 100G STRAIGHT BAR |
273 |
|
- |
0.10kgf (0.220lbs) | Analog Voltage | ±0.05% | - | 6V | - | - | Load Cell | Sensor | -10°C ~ 40°C | |
|
SEN-14728MINI LOAD CELL 500G STRAIGHT BAR |
203 |
|
- |
0.50kgf (1.10lbs) | Analog Voltage | ±0.05% | - | 6V | - | - | Load Cell | Sensor | -10°C ~ 40°C | |
|
SEN-14729LOAD CELL 5KG STRAIGHT BAR TAL22 |
763 |
|
- |
5.00kgf (11lbs) | Analog Voltage | ±0.05% | - | 3V ~ 10V | - | - | Load Cell | Sensor | -10°C ~ 55°C | |
|

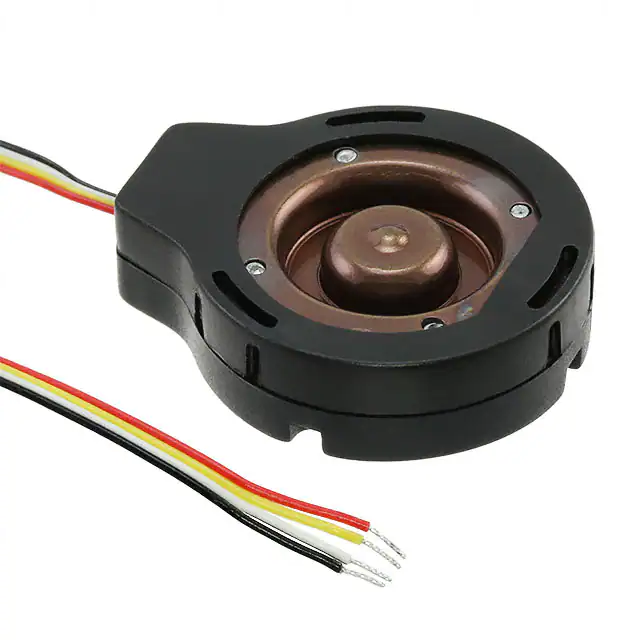

FX1901-0001-0200-LSENSOR TENSE LOAD CELL |
109 |
|
- |
90.72kgf (200lbs) | Voltage | ±1% | - | 5V | Pushbutton | - | Load Cell | Sensor | 0°C ~ 50°C | |
|

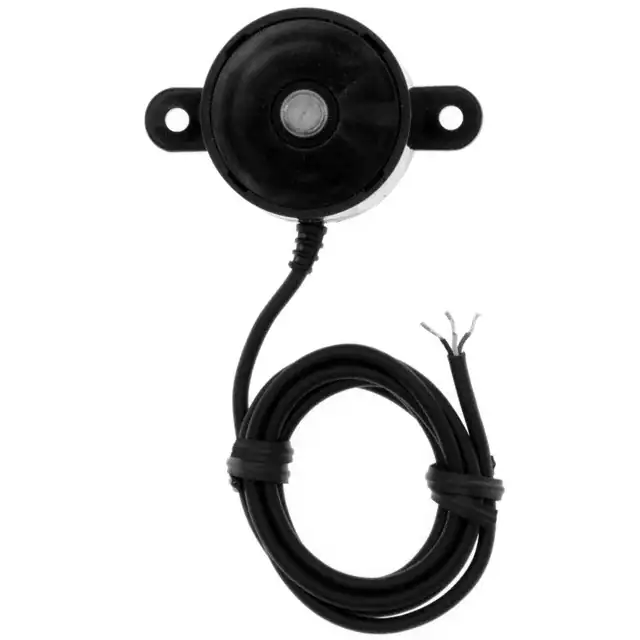

FC2231-0000-0025-LSENSOR FORCE LOAD CELL 25LBS |
402 |
|
- |
11.34kgf (25lbs) | 0.5 V ~ 4.5 V | ±1% | 0°C ~ 50°C | 5V | Pushbutton | Round, 6mm | Load Cell | Sensor | -40°C ~ 85°C | |
|
|
FC2231-0000-0050-LSENSOR FORCE LOAD CELL 50LBS |
56 |
|
- |
22.68kgf (50lbs) | 0.5 V ~ 4.5 V | ±1% | 0°C ~ 50°C | 5V | Pushbutton | Round, 6mm | Load Cell | Sensor | -40°C ~ 85°C | |
|
|
FC2231-0000-0100-LSENSOR FORCE LOAD CELL 100LBS |
41 |
|
- |
45.36kgf (100lbs) | 0.5 V ~ 4.5 V | ±1% | 0°C ~ 50°C | 5V | Pushbutton | Round, 6mm | Load Cell | Sensor | -40°C ~ 85°C | |
|
|
FC2231-0000-0010-LSENSOR FORCE LOAD CELL 10LBS |
391 |
|
- |
4.54kgf (10lbs) | 0.5 V ~ 4.5 V | ±1% | 0°C ~ 50°C | 5V | Pushbutton | Round, 6mm | Load Cell | Sensor | -40°C ~ 85°C | |
|

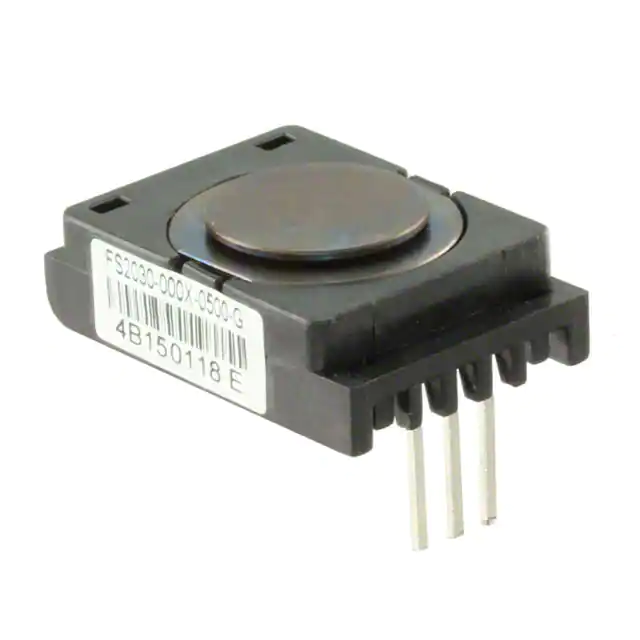

FS2030-000X-0500-GSENSOR FORCE LOAD CELL |
482 |
|
- |
226.80kgf (500lbs) | Voltage | ±1% | 0°C ~ 50°C | 3.3V ~ 12V | Button | - | Load Cell | Sensor | 0°C ~ 70°C | |
|

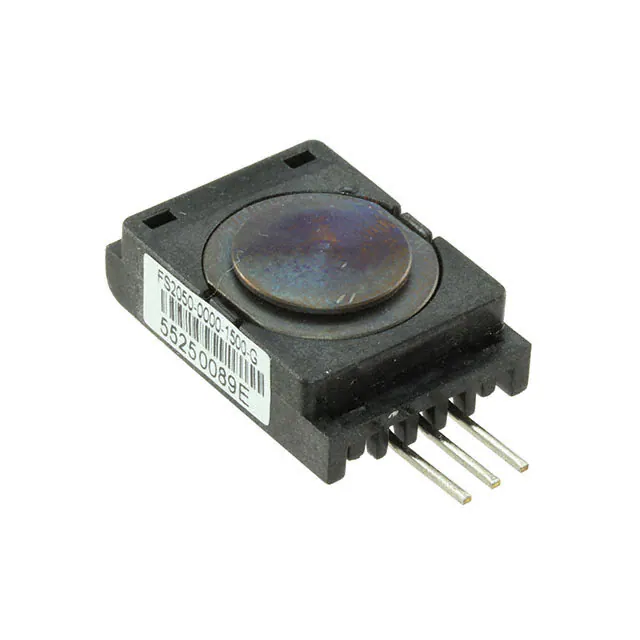

FS2050-0000-1500-GSENSOR FORCE LOAD CELL 3.3LBS |
65 |
|
- |
1.5kgf (3.3lbs) | 1 V ~ 4 V | ±1% | 0°C ~ 50°C | 3.3V ~ 12V | Plunger | Round, 12.2mm | Load Cell | Sensor | 0°C ~ 70°C | |
|

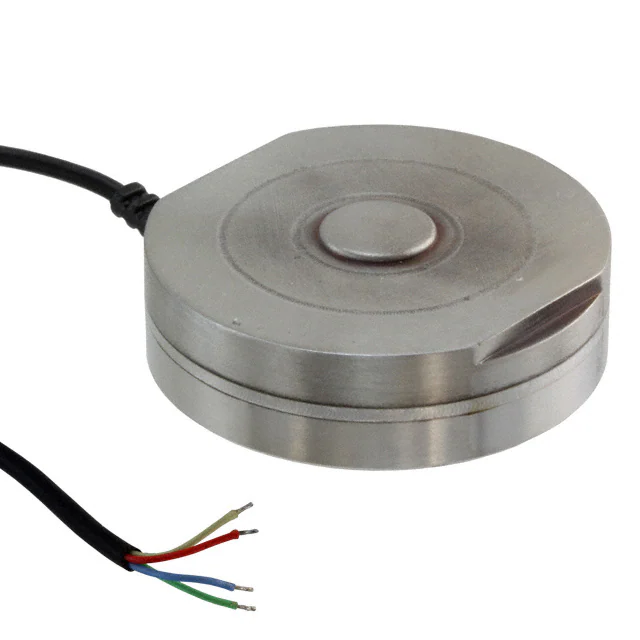

FC2311-0000-0500-LSENSOR FORCE LOAD CELL 500LBS |
95 |
|
- |
226.80kgf (500lbs) | 100mV | ±1% | 0°C ~ 50°C | 2V ~ 10V | Pushbutton | Round, 8mm | Load Cell | Sensor | -40°C ~ 85°C | |
|
FC2331-0000-1000-LFC23 AMPLIFIED 2FT CABLE 1000L |
41 |
|
- |
453.59kgf (1000lbs) | 0.5 V ~ 4.5 V | ±1% | 0°C ~ 50°C | 2V ~ 10V | Pushbutton | Round, 8mm | Load Cell | Sensor | -40°C ~ 85°C | |
|
|
FX29K0-100A-0100-L100LBF COMPRESSION LOAD CELL, I2 |
106 |
|
- |
50.00kgf (110lbs) | Digital | ±1% | 0°C ~ 50°C | 5.5V | Pushbutton | - | Load Cell | Sensor | 0°C ~ 85°C | |
|
|
FS1901-0000-0500-G500 GRAM FORCE 20MV/V FORCE LOAD |
383 |
|
- |
500gf | Analog, Ratiometric | ±1% | - | 2V ~ 10V | Button | Round, 2.7mm | Load Cell | - | 0°C ~ 40°C | |
|

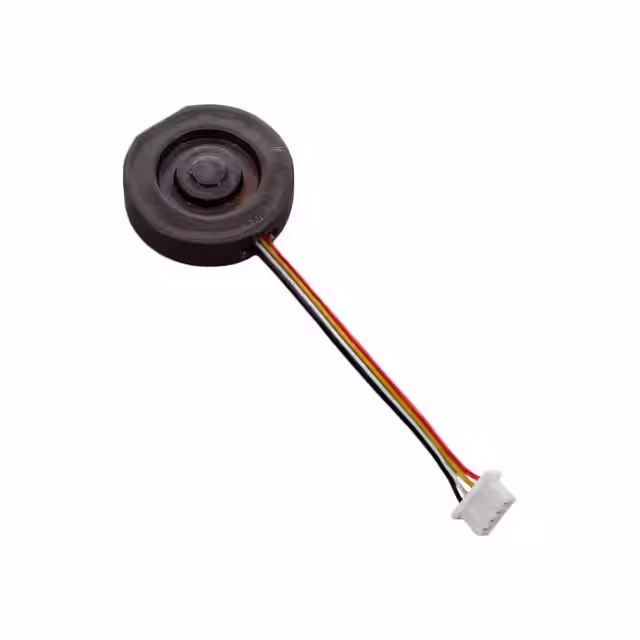

FX293X-040B-0010-LFORCE SENSOR |
35 |
|
- |
5.00kgf (11lbs) | 0.5 V ~ 4.5 V | ±1% | 0°C ~ 50°C | 4.75V ~ 5.25V | Pushbutton | - | Load Cell | Sensor | 0°C ~ 85°C | |
|

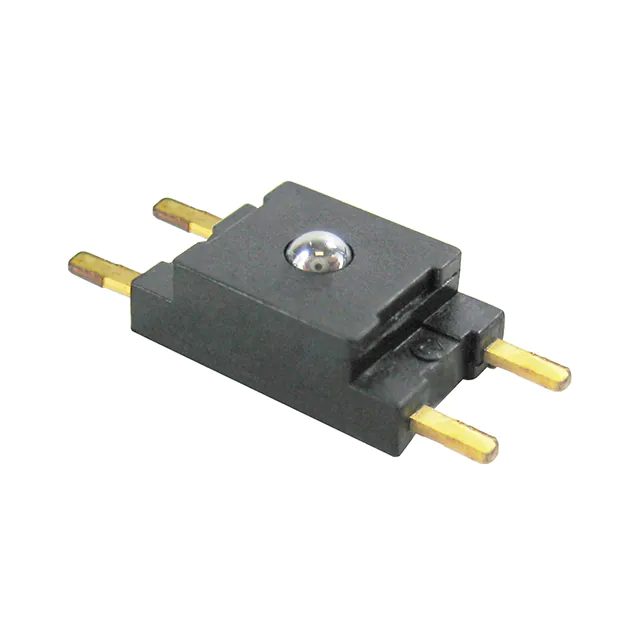

FSS005WNGBSENSOR FORCE SURF MOUNT 1.124LBS |
131 |
|
- |
0 ~ 5N | Analog, Ratiometric | ±0.5% | - | 3.3V ~ 12.5V | Ball | Round, 1.98mm | Resistive | Sensor | -40°C ~ 85°C | |
|
|
FS1901-0000-1000-G1000 GRAM FORCE 20MV/V FORCE LOA |
21 |
|
- |
500gf | Analog, Ratiometric | ±1% | - | 2V ~ 10V | Button | Round, 2.7mm | Load Cell | - | 0°C ~ 40°C | |
|
|
FSS020WNSBSENSOR FORCE SURF MOUNT 0-20N |
33 |
|
- |
0 ~ 20N | Analog, Ratiometric | ±0.5% | - | 3.3V ~ 12.5V | Ball | - | Resistive | Sensor | -40°C ~ 85°C | |
|
|
FSS005WNSBSENSOR FORCE SURF MOUNT 1.124LBS |
26 |
|
- |
0 ~ 5N | Analog, Ratiometric | ±0.5% | - | 3.3V ~ 12.5V | Ball | Round, 1.98mm | Resistive | Sensor | -40°C ~ 85°C |
