Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Part Status | Number of Channels | Inputs - Side 1/Side 2 | Common Mode Transient Immunity (Min) | Input Type | Output Type | Operating Temperature | Current - Output / Channel | Data Rate | Voltage - Isolation | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Qualification | Voltage - Forward (Vf) (Typ) | Mounting Style | Grade | Current - DC Forward (If) (Max) | Voltage - Supply | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FOD2200OPTOISO 5KV TRI-STATE 8DIP |
4,732 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 10kV/µs | DC | Tri-State | -40°C ~ 85°C | 25 mA | 2.5MBd | 5000Vrms | 300ns, 300ns | 80ns, 25ns | - | 1.4V | Through Hole | - | 10mA | 4.5V ~ 20V | 8-DIP |
|
HCPL-7601-000EOPTOISO 3.75KV OPEN COLL 8DIP |
3,503 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 1kV/µs | DC | Open Collector, Schottky Clamped | -40°C ~ 85°C | 50 mA | 10MBd | 3750Vrms | 75ns, 75ns | 24ns, 10ns | - | 1.5V | Through Hole | - | 20mA | 4.5V ~ 5.5V | 8-DIP |
|
PC411L0NIP0FOPTOISO 3.75KV PUSH PULL 5MFP |
4,320 |
|
Datasheet |
OPIC™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 15kV/µs | DC | Push-Pull, Totem Pole | -40°C ~ 85°C | 2 mA | 15Mbps | 3750Vrms | 60ns, 60ns | 4ns, 3ns | - | 1.6V | Surface Mount | - | 20mA | 4.5V ~ 5.5V | 5-MFP |
|
|
PC411L0YIP0FOPTOISO 3.75KV PUSH PULL 5MFP |
3,089 |
|
Datasheet |
OPIC™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 15kV/µs | DC | Push-Pull, Totem Pole | -40°C ~ 85°C | 2 mA | 15Mbps | 3750Vrms | 60ns, 60ns | 4ns, 3ns | - | 1.6V | Surface Mount | - | 20mA | 4.5V ~ 5.5V | 5-MFP |
|
|
PC956L0NSZ0FOPTOISO 5KV OPEN COLLECTOR 8DIP |
3,486 |
|
Datasheet |
OPIC™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 15kV/µs | DC | Open Collector | -40°C ~ 85°C | 15 mA | 2Mbps | 5000Vrms | 550ns, 400ns | - | - | 1.6V | Through Hole | - | 25mA | 4.5V ~ 35V | 8-DIP |
|
|
PC401TJ0000FOPTOISO 3.75KV OPEN COLL 5MFP |
3,164 |
|
- |
OPIC™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Obsolete | 1 | 1/0 | - | DC | Open Collector | -25°C ~ 85°C | 50 mA | - | 3750Vrms | 3µs, 6µs | 100ns, 50ns | - | 1.1V | Surface Mount | - | 50mA | 3V ~ 15V | 5-MFP |
|
|
PC911L0NSZ0FOPTOISO 5KV PUSH PULL 8DIP |
3,363 |
|
Datasheet |
OPIC™ | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 15kV/µs | DC | Push-Pull, Totem Pole | -40°C ~ 85°C | 2 mA | 15Mbps | 5000Vrms | 60ns, 60ns | 4ns, 3ns | - | 1.6V | Through Hole | - | 20mA | 4.5V ~ 5.5V | 8-DIP |
|
6N137FOPTOISO 2.5KV 1CH OPEN COLL 8DIP |
2,320 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 200V/µs, 500V/µs (Typ) | DC | Open Collector | 0°C ~ 70°C | 50 mA | 10MBd | 2500Vrms | 75ns, 75ns | 30ns, 30ns | - | 1.65V | Through Hole | - | 20mA | 4.5V ~ 5.5V | 8-DIP |
|
TLP2200(TP1,F)OPTOISO 2.5KV TRI-STATE 8SMD |
2,513 |
|
- |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 1kV/µs | DC | Tri-State | -40°C ~ 85°C | 25 mA | 2.5MBd | 2500Vrms | 400ns, 400ns | 35ns, 20ns | - | 1.55V | Surface Mount | - | 10mA | 4.5V ~ 20V | 8-SMD |
|
|
TLP2601(F)OPTOISO 2.5KV OPN COLLECTOR 8DIP |
3,605 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 1kV/µs | DC | Open Collector, Schottky Clamped | -40°C ~ 85°C | 25 mA | 10MBd | 2500Vrms | 75ns, 75ns | 30ns, 30ns | - | 1.65V | Through Hole | - | 20mA | 4.5V ~ 5.5V | 8-DIP |
|
|
TLP2630(F)OPTOISO 2.5KV 2CH OPEN COLL 8DIP |
2,484 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 2/0 | 200V/µs, 500V/µs (Typ) | DC | Open Collector, Schottky Clamped | -40°C ~ 85°C | 16 mA | 10MBd | 2500Vrms | 75ns, 75ns | 30ns, 30ns | - | 1.65V | Through Hole | - | 20mA | 4.5V ~ 5.5V | 8-DIP |
|
|
TLP2631(F)OPTOISO 2.5KV 2CH OPEN COLL 8DIP |
2,606 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 2/0 | 1kV/µs | DC | Open Collector, Schottky Clamped | -40°C ~ 85°C | 16 mA | 10MBd | 2500Vrms | 75ns, 75ns | 30ns, 30ns | - | 1.65V | Through Hole | - | 20mA | 4.5V ~ 5.5V | 8-DIP |
|

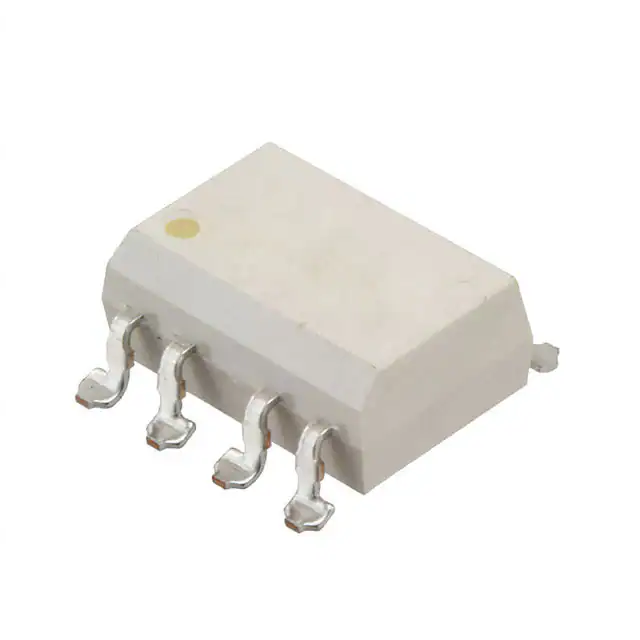

TLP2631TP1FOPTOISO 2.5KV 2CH OPEN COLL 8SMD |
3,580 |
|
- |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 1kV/µs | DC | Open Collector, Schottky Clamped | -40°C ~ 85°C | 16 mA | 10MBd | 2500Vrms | 75ns, 75ns | 30ns, 30ns | - | 1.65V | Surface Mount | - | 20mA | 4.5V ~ 5.5V | 8-SMD |
|
6N137SDVOPTOISO 2.5KV 1CH OPEN COLL 8SMD |
2,080 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 1 | 1/0 | 10kV/µs (Typ) | DC | Open Collector | -40°C ~ 85°C | 50 mA | 10Mbps | 2500Vrms | 75ns, 75ns | 50ns, 12ns | - | 1.4V | Surface Mount | - | 50mA | 4.5V ~ 5.5V | 8-SMD |
|
|
6N137SVOPTOISO 2.5KV 1CH OPEN COLL 8SMD |
3,663 |
|
Datasheet |
- | 8-SMD, Gull Wing | Bulk | Obsolete | 1 | 1/0 | 10kV/µs (Typ) | DC | Open Collector | -40°C ~ 85°C | 50 mA | 10Mbps | 2500Vrms | 75ns, 75ns | 50ns, 12ns | - | 1.4V | Surface Mount | - | 50mA | 4.5V ~ 5.5V | 8-SMD |
|
6N137VOPTOISO 2.5KV 1CH OPEN COLL 8DIP |
4,073 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | 1 | 1/0 | 10kV/µs (Typ) | DC | Open Collector | -40°C ~ 85°C | 50 mA | 10Mbps | 2500Vrms | 75ns, 75ns | 50ns, 12ns | - | 1.4V | Through Hole | - | 50mA | 4.5V ~ 5.5V | 8-DIP |
|
|
6N137WVOPTOISO 2.5KV 1CH OPEN COLL 8DIP |
4,376 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Bulk | Obsolete | 1 | 1/0 | 10kV/µs (Typ) | DC | Open Collector | -40°C ~ 85°C | 50 mA | 10Mbps | 2500Vrms | 75ns, 75ns | 50ns, 12ns | - | 1.4V | Through Hole | - | 50mA | 4.5V ~ 5.5V | 8-MDIP |
|
|
PS9117-AOPTOISO 3.75KV OPN COLLECTOR 5SO |
4,662 |
|
Datasheet |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Bulk | Obsolete | 1 | 1/0 | 15kV/µs | DC | Open Collector | -40°C ~ 85°C | 25 mA | 10Mbps | 3750Vrms | 75ns, 75ns | 20ns, 5ns | - | 1.65V | Surface Mount | - | 30mA | 4.5V ~ 5.5V | 5-SO |
|
FOD816300WOPTOISOLATOR 5KV DARLINGTON 4DIP |
2,178 |
|
Datasheet |
- | 4-DIP (0.400", 10.16mm) | Tube | Obsolete | 1 | - | - | AC, DC | Darlington | -30°C ~ 100°C | 80 mA | - | 5000Vrms | - | 60µs, 53µs | - | 1.2V | Through Hole | - | 50mA | - | 4-DIP |
|
FOD8163SOPTOISOLATOR 5KV DARLINGTON 4SMD |
3,907 |
|
Datasheet |
- | 4-SMD, Gull Wing | Tube | Obsolete | 1 | - | - | AC, DC | Darlington | -30°C ~ 100°C | 80 mA | - | 5000Vrms | - | 60µs, 53µs | - | 1.2V | Surface Mount | - | 50mA | - | 4-SMD |
