Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RV1S9261ACCSP-10YV#SC0LSSO5 |
3,195 |
|
Datasheet |
RV | 5-SMD, Gull Wing | Strip | Active | 1 | 1/0 | 5000Vrms | 100kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 15Mbps | 60ns, 60ns | - | 1.54V | 20mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSSO |
|
ACPL-K24L-000EOPTOISO 5KV 2CH PUSH PULL 8SO |
2,198 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tube | Active | 2 | 2/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 5MBd | 250ns, 250ns | 11ns, 11ns | 1.5V | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched |
|
ACPL-M61T-000EOPTOISO 4KV OPN COLLECTOR 5SO |
1,848 |
|
Datasheet |
R²Coupler™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 4000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 5-SO |
|
PS9117A-AXOPTOISO 3.75KV OPN COLLECTOR 5SO |
325 |
|
Datasheet |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 5-SO |
|
H11N1TVMOPTOISO 4.17KV OPN COLL 6DIP |
336 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | 7.5ns, 12ns | 1.4V | 30mA | 4V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 6-DIP |
|
PS9009-Y-AXLSO-5 |
1,715 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 200ns, 200ns | 25ns, 4.6ns | 1.56V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSOP |
|
|
PS9009-Y-V-AXLSO-5 |
1,645 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 5000Vrms | 50kV/µs | DC | Push-Pull, Totem Pole | 25 mA | - | 200ns, 200ns | 25ns, 4.6ns | 1.56V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 5-LSOP |
|
ACNV2601-300EOPTOISO 7.5KV OPEN COLL 10DIP GW |
2,247 |
|
Datasheet |
- | 10-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 7500Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 80ns, 80ns | 25ns, 10ns | 1.64V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 10-DIP Gull Wing |
|
HCPL-7710-500EOPTOISO 3.75KV PUSH PULL 8DIP GW |
3,418 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing |
|
ACSL-7210-06REOPTOISO 3.75KV 2CH PUSH PULL 8SO |
1,079 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 1/1 | 3750Vrms | 25kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 5.1ns, 3.8ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO |
|
HCPL-7710OPTOISO 3.75KV PUSH PULL 8DIP |
866 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 12.5MBd | 40ns, 40ns | 13ns, 5ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
H11N1SMOPTOISO 4.17KV OPN COLL 6SMD |
355 |
|
Datasheet |
- | 6-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | 7.5ns, 12ns | 1.4V | 30mA | 4V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 6-SMD |
|
|
HCPL-7720-500EOPTOISO 3.75KV PUSH PULL 8DIP GW |
5,249 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-0721-500EOPTOISO 3.75KV PUSH PULL 8SO |
1,792 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
ACPL-K73L-500EOPTOISO 5KV 2CH PUSH PULL 8SSO |
963 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 5000Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 55ns, 55ns | 3.5ns, 3.5ns | 1.5V | 10mA | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched |
|
|
HCPL-4661-300EOPTOISO 3.75KV OPEN COLL 8DIP GW |
1,126 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-7723-500EOPTOISO 3.75KV PUSH PULL 8DIP GW |
279 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 50MBd | 22ns, 22ns | 8ns, 6ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
PS9817A-2-AXOPTOISO 2.5KV 2CH OPEN COL 8SSOP |
760 |
|
Datasheet |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Bulk | Not For New Designs | 2 | 2/0 | 2500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.65V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SSOP |
|

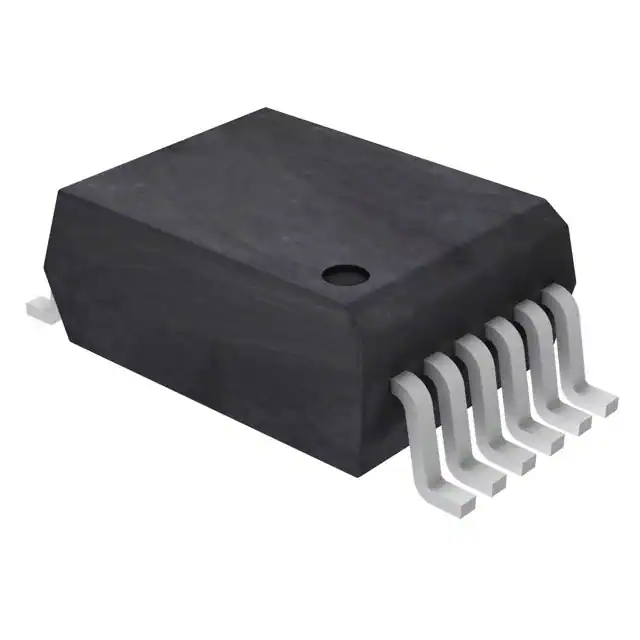

ACFL-6211T-000EOPTOISO 5KV 2CH PSH PULL SO12 |
995 |
|
Datasheet |
R²Coupler™ | 12-BSOP (0.295", 7.50mm Width) | Tube | Active | 2 | 1/1 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 12-SO |
|
ACNT-H61LC-000E15MM CTI600V OPTOCOUPLER (10MBD) |
824 |
|
Datasheet |
- | 8-SOIC (0.535", 13.60mm Width) | Tube | Active | 1 | 1/0 | 7500Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 10MBd | 100ns, 100ns | 10ns, 10ns | 1.38V | 10mA | 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched |
