Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6N134OPTOISO 1.5KV 2CH OPEN COL 16DIP |
25 |
|
Datasheet |
- | 16-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10MBd | 100ns, 100ns | 35ns, 35ns | 1.55V | 20mA | 4.5V ~ 5.5V | - | - | -55°C ~ 125°C | Through Hole | 16-DIP |
|
H11L3OPTOISO 5KV OPEN COLLECTOR 6DIP |
52 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.15V | 60mA | 3V ~ 16V | - | - | -55°C ~ 100°C | Through Hole | 6-DIP |
|
TLP250H(D4-LF1,F)X36 PB-F DRIVER COUPLER DIP8 GUL |
69 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2.5 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 20mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SMD |
|
APS1241S20 MBPS TYPE PHOTOIC COUPLER (TO |
100 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20Mbps | 55ns, 55ns | 2ns, 2ns | 1.6V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 5-SOP |
|
HCPL-0723OPTOISO 3.75KV PUSH PULL 8SO |
50 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 50MBd | 22ns, 22ns | 8ns, 6ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
5962-8876901PAOPTOISO 1.5KV 2CH PUSH PULL 8DIP |
15 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Push-Pull, Totem Pole | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
5962-8876901XAOPTOISO 1.5KV PUSH PULL 8DIP GW |
21 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Push-Pull, Totem Pole | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | - | - | -55°C ~ 125°C | Surface Mount | 8-DIP Gull Wing |
|

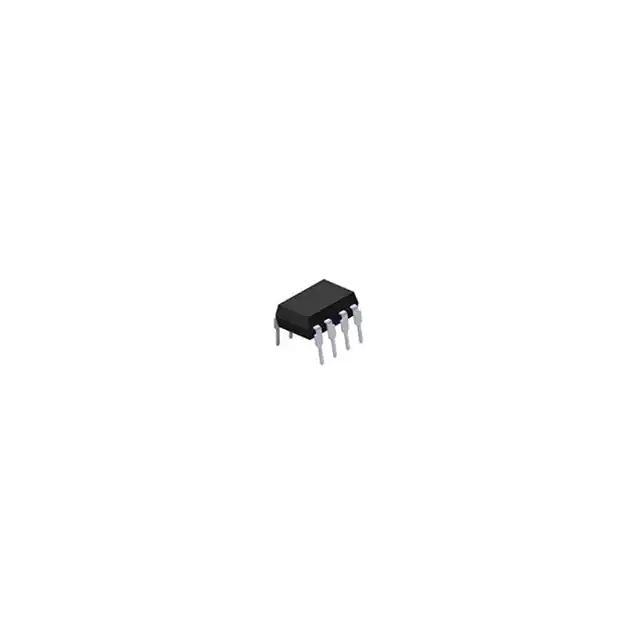

EL2630OPTOISO 5KV OPEN COLLECTOR 8DIP |
29 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | 20mA | 7V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
6N137SVMOPTOISO 5KV 1CH OPEN COLL 8SMD |
45 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
|
ICPL2601SMT&ROPTOISOLATOR 2.5KV OPN COLL 8SMD |
1,046 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 2500Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 25 mA | 10Mbps | 75ns, 75ns | - | 1.55V | 20mA | 7V | - | - | 0°C ~ 70°C | Surface Mount | 8-SMD Gull Wing |
|
EL2630-VOPTOISO 5KV OPEN COLLECTOR 8DIP |
45 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.4V | 20mA | 7V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
ACPL-K73L-000EOPTOISO 5KV 2CH PUSH PULL 8SSO |
43 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tube | Active | 2 | 2/0 | 5000Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 55ns, 55ns | 3.5ns, 3.5ns | 1.5V | 10mA | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched |
|
|
HCPL-5201OPTOISO 1.5KV TRI-STATE 8DIP |
16 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Tri-State | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
5962-8876903FCOPTOISO 1.5KV PUSH PULL 16FLATPK |
16 |
|
Datasheet |
- | 16-FlatPack | Tube | Active | 4 | 4/0 | 1500VDC | 1kV/µs | DC | Push-Pull, Totem Pole | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | - | - | -55°C ~ 125°C | Surface Mount | 16-FlatPack |
|
|
TLP2363(EHIGH SPEED PHOTOCOUPLER; 10MBD; |
46 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector | 25 mA | 10Mbps | 80ns, 80ns | 23ns, 7ns | 1.5V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO, 5 Lead |
|
MOC5008SM6PIN SCHMITT TRIGGER, SINGLE OPT |
65 |
|
Datasheet |
MOC500 | 6-SMD (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5300Vrms | - | DC | Tri-State | 50 mA | 1MHz | - | 100ns, 100ns | 1.5V (Max) | 50mA | 16V | - | - | -25°C ~ 85°C | Surface Mount | 6-SMD |
|
|
H11L3G6PIN SCHMITT TRIGGER, SINGLE OPT |
65 |
|
Datasheet |
H11L3 | 6-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5300Vrms | - | DC | Open Collector | 50 mA | 1MHz | 6µs, 3µs | 100ns, 100ns | 1.5V (Max) | 50mA | 3V ~ 15V | - | - | -25°C ~ 85°C | Through Hole | 6-DIP |
|
|
IS900SM6PIN SCHMITT TRIGGER, SINGLE OPT |
65 |
|
Datasheet |
IS900 | 6-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | - | DC | Tri-State | 50 mA | 1MHz | - | 100ns, 100ns | 1.15V | 60mA | 16V | - | - | -55°C ~ 100°C | Surface Mount | 6-SMD |
|
|
H11L2G6PIN SCHMITT TRIGGER, SINGLE OPT |
65 |
|
Datasheet |
H11L2 | 6-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5300Vrms | - | DC | Open Collector | 50 mA | 1MHz | 6µs, 3µs | 100ns, 100ns | 1.5V (Max) | 50mA | 3V ~ 15V | - | - | -25°C ~ 85°C | Through Hole | 6-DIP |
|
|
IS609G6PIN SCHMITT TRIGGER, SINGLE OPT |
65 |
|
Datasheet |
IS609 | 6-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5300Vrms | - | DC | Tri-State | 50 mA | 1MHz | - | 50ns, 90ns | 1.5V (Max) | 50mA | 16V | - | - | -25°C ~ 85°C | Through Hole | 6-DIP |
