Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H11L2TVMLOGIC IC OUTPUT OPTOCOUPLER, 750 |
605 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Bulk | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | - | - | -40°C ~ 85°C | Through Hole | 6-DIP |
|
6N137TSVMHIGH SPEED 10MBIT/S LOGIC GATE O |
1,000 |
|
Datasheet |
- | 8-SMD, Gull Wing | Bulk | Active | 1 | 1/0 | 5000Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 30ns, 10ns | 1.45V | 50mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD |
|
TLP2748(TP,EOPTOISO 5KV PUSH PULL SO6L |
4,566 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 30kV/µs | DC | Push-Pull, Totem Pole | 50 mA | - | 120ns, 120ns | 3ns, 3ns | 1.55V | 15mA | 4.5V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO |
.jpg)
|
HCNW2601-000EOPTOISO 5KV OPEN COLLECTOR 8DIP |
1 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.64V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
HCPL-2631-000EOPTOISO 3.75KV 2CH OPEN COL 8DIP |
2,454 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
ACPL-064L-000EOPTOISO 3.75KV 2CH PUSH PULL 8SO |
2,575 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 2 | 2/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 10MBd | 80ns, 80ns | 12ns, 12ns | 1.3V | 8mA | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
|
ACNT-H61L-000EOPTOISO 7.5KV PUSH PULL 8SO |
3,514 |
|
Datasheet |
- | 8-SOIC (0.535", 13.60mm Width) | Tube | Active | 1 | 1/0 | 7500Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | - | 10MBd | - | - | - | - | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Stretched |
|
|
HCPL-5200OPTOISO 1.5KV TRI-STATE 8DIP |
4,845 |
|
Datasheet |
- | 8-CDIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 1500VDC | 1kV/µs | DC | Tri-State | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | - | - | -55°C ~ 125°C | Through Hole | 8-DIP |
|
TLP2761(D4-TP,EHIGH SPEED LOGIC OUTPUT OPTOCOUP |
2,678 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 20kV/µs | AC, DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 80ns, 80ns | 3ns, 3ns | 1.5V | 10mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO |
|
TLP250H(F)X36 PB-F DRIVER COUPLER DIP 8 TH |
2,858 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 3750Vrms | 40kV/µs | DC | Push-Pull, Totem Pole | 2.5 A | - | 500ns, 500ns | 50ns, 50ns | 1.57V | 20mA | 10V ~ 30V | - | - | -40°C ~ 125°C | Through Hole | 8-DIP |
|
TLP2662(F)OPTOISO 5KV 2CH OPN COL 8DIP |
3 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 5000Vrms | 20kV/µs | DC | Open Collector | 25 mA | 10MBd | 75ns, 75ns | 12ns, 3ns | 1.55V | 20mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Through Hole | 8-DIP |
|
|
HCPL-060LOPTOISO 3.75KV OPN COLLECTOR 8SO |
4,258 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
5962-88769022AOPTOISO 1.5KV PUSH PULL 20LCCC |
4,716 |
|
Datasheet |
- | 20-CLCC | Tube | Active | 2 | 2/0 | 1500VDC | 1kV/µs | DC | Push-Pull, Totem Pole | 15 mA | 5MBd | 350ns, 350ns | 45ns, 10ns | 1.3V | 8mA | 4.5V ~ 20V | - | - | -55°C ~ 125°C | Surface Mount | 20-LCCC (8.89x8.89) |
|
|
TLP5772(TP,EOPTOISO 5KV 1CH PSH PULL 6SO |
2,802 |
|
Datasheet |
- | 6-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 35kV/µs | DC | Push-Pull, Totem Pole | - | - | 150ns, 150ns | 15ns, 8ns | 1.65V | 8mA | 10V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO |
|
VO0611TOPTOISO 4KV OPEN DRAIN 8SOIC |
3,866 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 4000Vrms | 15kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SOIC |
|
APS1551SZOPTOISO 3.75KV PUSH PULL |
2,923 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 50Mbps | 30ns, 30ns | 4ns, 5ns | 1.6V | 25mA | 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO, 5 Lead |
.JPG)
|
TLP104(E)OPTOISO 3.75KV OPEN COLL SO6-5 |
4,016 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector | 8 mA | 1Mbps | 550ns, 400ns | - | 1.61V | 25mA | 4.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|
|
TLP2366(V4,EOPTOISO 3.75KV PSH PULL SO6-5 |
3,312 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 40ns, 40ns | 15ns, 15ns | 1.61V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 6-SO, 5 Lead |
|

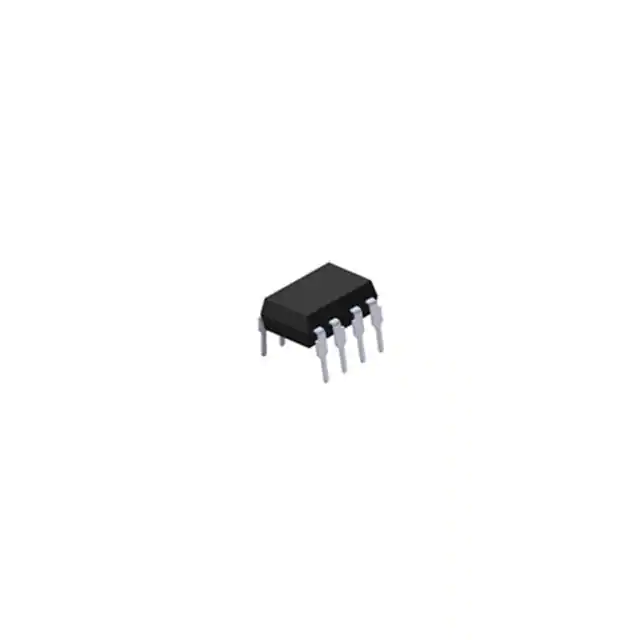

EL2601OPTOISO 5KV OPEN COLLECTOR 8DIP |
2,511 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 40ns, 10ns | 1.4V | 50mA | 7V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
6N1378 PIN 10 MBITS HIGH SPEED LOGIC |
3,623 |
|
Datasheet |
Optocoupler | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 37ns, 10ns | 1.4V | 50mA | 7V | - | - | -55°C ~ 85°C | Through Hole | 8-DIP |
