Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
HCNW2201OPTOISO 5KV PUSH PULL 8DIP |
4,431 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 180ns, 160ns (Typ) | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
PS9851-2-F3-AXOPTOISO 2.5KV 2CH PSH PULL 8SSOP |
2,492 |
|
Datasheet |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | 2 | 2/0 | 2500Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15Mbps | 60ns, 60ns | 4ns, 4ns | 1.6V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 8-SSOP |
|
ACPL-M61U-000EOPTOISO 3.75KV OPN COLLECTOR 5SO |
3,167 |
|
Datasheet |
R²Coupler™ | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 5-SO |
|
PS9513-V-AXOPTOISO 5KV OPEN COLLECTOR 8DIP |
3,362 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Bulk | Discontinued at Digi-Key | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
|
TLP2160(TP,F)OPTOISO 2.5KV 2CH PUSH PULL 8SO |
2,307 |
|
- |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 2500Vrms | 20kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 20MBd | 40ns, 40ns | 15ns, 15ns | 1.55V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO |
|
PS9587L3-AXOPTOISO 5KV OPEN COLL 8DIP GW |
2,450 |
|
Datasheet |
NEPOC | 8-SMD, Gull Wing | Bulk | Discontinued at Digi-Key | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 10ns | 1.65V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
ACSL-7210-56REOPTOISO 3.75KV 2CH PUSH PULL 8SO |
3,330 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 1/1 | 3750Vrms | 25kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 5.1ns, 3.8ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO |
|
HCPL2631OPTOISO 2.5KV 2CH OPEN COLL 8DIP |
4,297 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Obsolete | 2 | 2/0 | 2500Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|

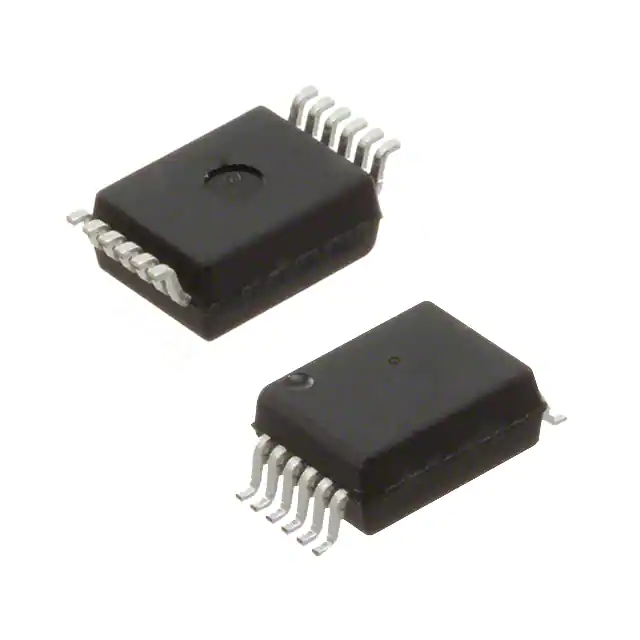

ACFL-6211U-000EOPTOISO 5KV 2CH PSH PULL SO12 |
3,497 |
|
Datasheet |
R²Coupler™ | 12-BSOP (0.295", 7.50mm Width) | Tube | Active | 2 | 1/1 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | - | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 12-SO |
|
|
ACFL-6211U-560EOPTOISO 5KV 2CH PSH PULL SO12 |
2,594 |
|
Datasheet |
R²Coupler™ | 12-BSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 2 | 1/1 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | - | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 12-SO |
|
|
ACFL-6212U-560EOPTOISO 5KV 2CH PSH PULL SO12 |
3,479 |
|
Datasheet |
R²Coupler™ | 12-BSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 2 | 1/1 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | - | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 12-SO |
|
H11N1OPTOCOUPLER SCMITT TRIGGER OUT |
4,613 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 7500Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | - | 1.4V | 3.2mA | - | - | - | - | Through Hole | 6-DIP |
|
|
H11N1300OPTOCOUP VDE SCHM TRIG OUT 6DIP |
4,627 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm) | Tube | Obsolete | 1 | 1/0 | 7500Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | - | 1.4V | 3.2mA | - | - | - | - | Through Hole | 6-DIP |
.jpg)
|
PS9309L-AXOPTOISO 5KV PUSH PULL 6SDIP |
4,294 |
|
Datasheet |
- | 6-SOIC (0.268", 6.80mm Width) | Bulk | Discontinued at Digi-Key | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 1Mbps | 200ns, 200ns | 24ns, 3.2ns | 1.55V | 20mA | 4.5V ~ 20V | - | - | -40°C ~ 110°C | Surface Mount | 6-SDIP Gull Wing |
|
H11N1300WOPTOCOUP VDE WIDE SCHM TRIG 6DIP |
2,591 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | 1 | 1/0 | 7500Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | - | 1.4V | 3.2mA | - | - | - | - | Through Hole | 6-DIP |
|
H11N13SOPTOCOUP VDE SCHM TRIG OUT SMD |
4,074 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bag | Obsolete | 1 | 1/0 | 7500Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | - | 1.4V | 3.2mA | - | - | - | - | Surface Mount | 6-SMD |
|
|
H11N1SOPTOCOUPLER SCHMITT TRIG OUT SMD |
4,597 |
|
Datasheet |
- | 6-SMD, Gull Wing | Bag | Obsolete | 1 | 1/0 | 7500Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | - | 1.4V | 3.2mA | - | - | - | - | Surface Mount | 6-SMD |
|
|
H11N1WOPTOCOUP WIDE SCHM TRIG OUT 6DIP |
2,762 |
|
Datasheet |
- | 6-DIP (0.400", 10.16mm) | Tube | Obsolete | 1 | 1/0 | 7500Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | - | 1.4V | 3.2mA | - | - | - | - | Through Hole | 6-DIP |
|
|
ACFL-6211U-060EOPTOISO 5KV 2CH PSH PULL SO12 |
4,022 |
|
Datasheet |
R²Coupler™ | 12-BSOP (0.295", 7.50mm Width) | Tube | Active | 2 | 1/1 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | - | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 12-SO |
|
|
ACFL-6212U-060EOPTOISO 5KV 2CH PSH PULL SO12 |
3,822 |
|
Datasheet |
R²Coupler™ | 12-BSOP (0.295", 7.50mm Width) | Tube | Active | 2 | 1/1 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | 10 mA | - | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 12-SO |
