Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

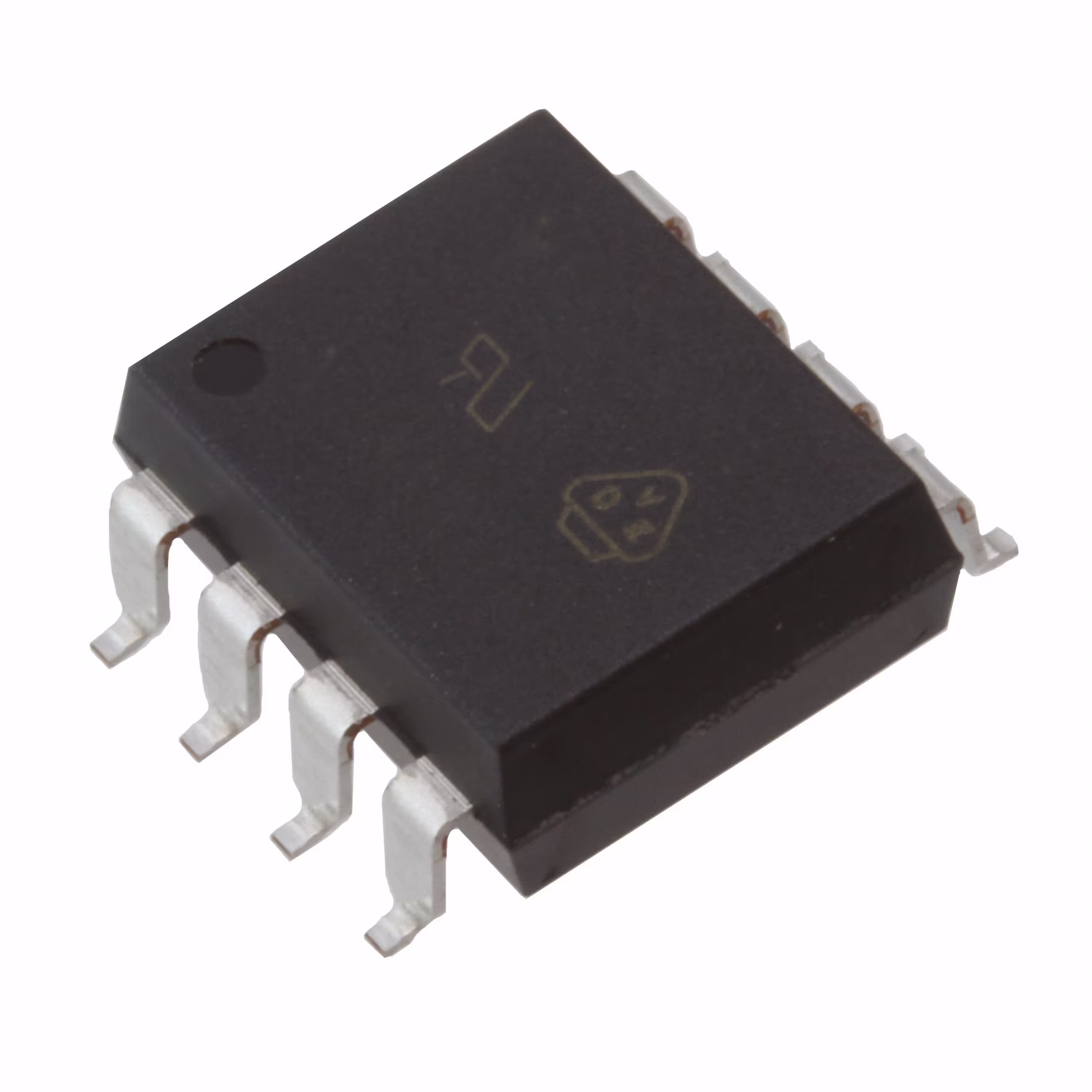

HCPL-2631#500OPTOISO 3.75KV OPEN COLL 8DIP GW |
2,043 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-2631#300OPTOISO 3.75KV OPEN COLL 8DIP GW |
2,750 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
HCPL-2631#020OPTOISO 5KV 2CH OPEN COLL 8DIP |
2,623 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 5000Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 24ns, 10ns | 1.5V | 15mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-263A-300EOPTOISO 3.75KV OPEN COLL 8DIP GW |
2,864 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
.jpg)
|
PS9303L2-AXOPTOISO 5KV PUSH PULL 6DIP GW |
4,453 |
|
Datasheet |
NEPOC | 6-SOIC (0.268", 6.80mm Width) | Bulk | Discontinued at Digi-Key | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 1Mbps | 500ns, 550ns | 120ns, 90ns | 1.6V | 20mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 6-SDIP Gull Wing |
|
PS9513L3-AXOPTOISO 5KV OPEN COLL 8DIP GW |
2,671 |
|
Datasheet |
- | 8-SMD, Gull Wing | Bulk | Discontinued at Digi-Key | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing |
|
PS9822-2Y-N-AXOPTOISO 2.5KV 2CH OPEN COL 8SSOP |
3,998 |
|
Datasheet |
NEPOC | 8-SOIC (0.154", 3.90mm Width) | Bulk | Active | 2 | 2/0 | 2500Vrms | - | DC | Open Collector | 25 mA | 1Mbps | 700ns, 500ns | - | 1.6V | 15mA | 2.7V ~ 3.6V | - | - | -40°C ~ 100°C | Surface Mount | 8-SSOP |
|
|
HCPL-263A-320EOPTOISO 5KV 2CH OPEN COL 8DIP GW |
3,974 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 5000Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-7720-520EOPTOISO 5KV PUSH PULL 8DIP GW |
2,876 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-7720-560EOPTOISO 3.75KV PUSH PULL 8DIP GW |
3,461 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
.jpg)
|
HCNW2211OPTOISO 5KV PUSH PULL 8DIP |
3,676 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 180ns, 160ns (Typ) | 30ns, 7ns | 1.5V | 10mA | 4.5V ~ 20V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
PS9151-AXOPTOISO 3.75KV PUSH PULL 5SO |
2,996 |
|
Datasheet |
NEPOC | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Strip | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 2 mA | 15Mbps | 60ns, 60ns | 4ns, 4ns | 1.65V | 20mA | 4.5V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 5-SO |
|
|
HCPL-0720-060EOPTOISO 3.75KV PUSH PULL 8SO |
4,955 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
|
HCPL-7720-020EOPTOISO 5KV PUSH PULL 8DIP |
4,784 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
HCPL-7720-300EOPTOISO 3.75KV PUSH PULL 8DIP GW |
4,056 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-0720-560EOPTOISO 3.75KV PUSH PULL 8SO |
3,927 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
TLP2108(TP,F)OPTOISO 2.5KV 2CH PSH PULL 8SOIC |
2,469 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 2 | 2/0 | 2500Vrms | 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5Mbps | 250ns, 250ns | 30ns, 30ns | 1.65V | 20mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO |
|
|
HCPL-7720-320EOPTOISO 5KV PUSH PULL 8DIP GW |
4,564 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-7720-360EOPTOISO 3.75KV PUSH PULL 8DIP GW |
4,410 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
SFH6732-X007TOPTOISO 5.3KV 2CH PUSH PULL 8SMD |
3,356 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 2 | 2/0 | 5300Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | - | - | -40°C ~ 85°C | Surface Mount | 8-SMD |
