Logic Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Channels | Inputs - Side 1/Side 2 | Voltage - Isolation | Common Mode Transient Immunity (Min) | Input Type | Output Type | Current - Output / Channel | Data Rate | Propagation Delay tpLH / tpHL (Max) | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-072L-500OPTOISO 3.75KV PUSH PULL 8SO |
3,308 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
|
ACPL-K74T-060EOPTOISO 5KV 2CH PUSH PULL 8SO |
4,177 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tube | Active | 2 | 2/0 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | - | - | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO Stretched |
|
|
ACPL-K75T-060EOPTOISO 5KV 2CH PUSH PULL 8SO |
2,963 |
|
Datasheet |
- | 8-SOIC (0.268", 6.81mm Width) | Tube | Active | 2 | 2/0 | 5000Vrms | 25kV/µs | DC | Push-Pull, Totem Pole | - | - | 100ns, 100ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SO Stretched |
|
ACSL-6310-56TEOPTOISO 2.5KV 3CH OPEN COLL 16SO |
3,283 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 3 | 2/1 | 2500Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 100ns, 100ns | 30ns, 12ns | 1.52V | 15mA | 3V ~ 5.5V | - | - | -40°C ~ 100°C | Surface Mount | 16-SOIC |
|
HCPL-263N-320EOPTOISO 5KV 2CH OPEN COL 8DIP GW |
2,526 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 2 | 2/0 | 5000Vrms | 15kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-2411-300EOPTOISO 2.5KV TRI-STATE 8DIP GW |
3,783 |
|
- |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 2500Vrms | 1kV/µs | DC | Tri-State | 25 mA | 40MBd | 55ns, 55ns | 20ns, 10ns | 1.3V | 10mA | 4.75V ~ 5.25V | - | - | 0°C ~ 70°C | Surface Mount | 8-DIP Gull Wing |
.JPG)
|

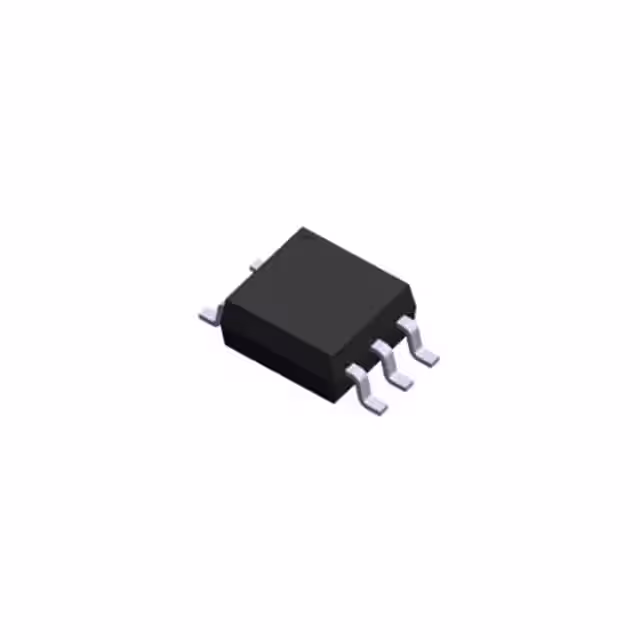

ELM611(TA)OPTOISO 3.75KV OPEN COLL 5SOP |
3,337 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 100ns, 100ns | 40ns, 10ns | 1.45V | 50mA | 7V | - | - | -40°C ~ 85°C | Surface Mount | 5-SOP |
|
HCPL-263LOPTOISO 3.75KV 2CH OPEN COL 8DIP |
3,337 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 3750Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
|
ACPL-072LOPTOISO 3.75KV PUSH PULL 8SO |
4,674 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25MBd | 40ns, 40ns | 9ns, 8ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 8-SO Tall |
|
|
HCPL-7723-360EOPTOISO 3.75KV PUSH PULL 8DIP GW |
2,356 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 50MBd | 22ns, 22ns | 8ns, 6ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-7723-320EOPTOISO 5KV PUSH PULL 8DIP GW |
4,763 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tube | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 50MBd | 22ns, 22ns | 8ns, 6ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-263L#020OPTOISO 5KV 2CH OPEN COLL 8DIP |
2,744 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | 2 | 2/0 | 5000Vrms | 10kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 15MBd | 75ns, 75ns | 24ns, 10ns | 1.5V | 15mA | 2.7V ~ 3.6V, 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Through Hole | 8-DIP |
|
ACFL-6211T-500EOPTOISO 5KV 2CH PSH PULL SO12 |
3,432 |
|
Datasheet |
R²Coupler™ | 12-BSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 2 | 1/1 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 12-SO |
|
APS1551SOPTOISO 3.75KV PUSH PULL |
3,929 |
|
Datasheet |
- | 6-SOIC (0.173", 4.40mm Width), 5 Leads | Tube | Active | 1 | 1/0 | 3750Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 50Mbps | 30ns, 30ns | 4ns, 5ns | 1.6V | 25mA | 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 6-SO, 5 Lead |
|
|
ACFL-6211T-560EOPTOISO 5KV 2CH PSH PULL SO12 |
4,346 |
|
Datasheet |
R²Coupler™ | 12-BSOP (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | 2 | 1/1 | 5000Vrms | 15kV/µs | DC | Push-Pull, Totem Pole | 10 mA | 15MBd | 35ns, 35ns | 10ns, 10ns | 1.5V | 20mA | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 12-SO |
|
PS9924-Y-V-F3-AXOPTOISO 7.5KV OPN COLLECTOR 8DIP |
4,945 |
|
Datasheet |
- | 8-SOIC (0.543", 13.80mm Width) | Tape & Reel (TR) | Discontinued at Digi-Key | 1 | 1/0 | 7500Vrms | 15kV/µs | DC | Open Collector | 25 mA | 10Mbps | 75ns, 75ns | 20ns, 5ns | 1.56V | 25mA | 2.7V ~ 5.5V | - | - | -40°C ~ 110°C | Surface Mount | 8-LSDIP |
|
|
HCPL-261A-560EOPTOISO 3.75KV OPEN COLL 8DIP GW |
3,684 |
|
Datasheet |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 1kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10MBd | 100ns, 100ns | 42ns, 12ns | 1.3V | 10mA | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-DIP Gull Wing |
|
|
HCPL-0723-560EOPTOISO 3.75KV PUSH PULL 8SO |
4,586 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | 1 | 1/0 | 3750Vrms | 10kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 50MBd | 22ns, 22ns | 8ns, 6ns | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 8-SO Tall |
|
CPC5001GSTROPTOISO 3.75KV 2CH OPEN DRN 8SMD |
3,879 |
|
- |
- | 8-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 2 | 1/1 | 3750Vrms | 5kV/µs, 7kV/µs | Logic | Open Drain | - | 5MBd | 250ns, 100ns | - | - | - | 2.7V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | - |
|
PS9513L1-AXOPTOISO 5KV OPEN COLLECTOR 8DIP |
3,637 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Discontinued at Digi-Key | 1 | 1/0 | 5000Vrms | 15kV/µs | DC | Open Collector | 15 mA | 1Mbps | 750ns, 500ns | - | 1.65V | 25mA | 4.5V ~ 20V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP |
