Triac, SCR Output Optoisolators
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Output Type | Zero Crossing Circuit | Number of Channels | Voltage - Isolation | Voltage - Off State | Static dV/dt (Min) | Current - LED Trigger (Ift) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) | Turn On Time | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLP3042SCFOPTOISOLATOR 5KV TRIAC 6DIP 5L Toshiba Semiconductor and Storage |
4,428 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 400 V | 200V/µs | 10mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
.JPG)
|

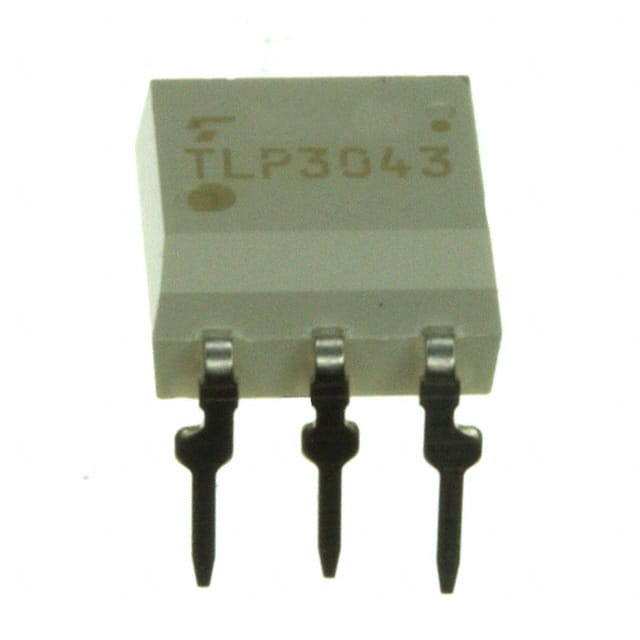

TLP3043(S,C,F)OPTOISOLATOR 5KV TRIAC 6DIP 5L Toshiba Semiconductor and Storage |
3,630 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 400 V | 200V/µs | 5mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
|
TLP525G-2(F)OPTOISOLATOR 2.5KV TRIAC 8DIP Toshiba Semiconductor and Storage |
2,865 |
|
- |
- | 8-DIP (0.300", 7.62mm) | Tube | Active | Triac | No | 2 | 2500Vrms | 400 V | 200V/µs | 10mA | 80 mA | 200µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 8-DIP | UR |
.JPG)
|

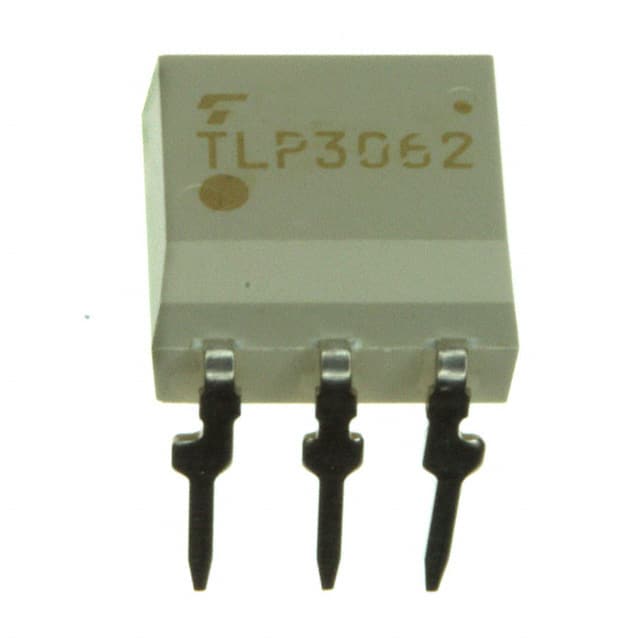

TLP3062(S,C,F)OPTOISOLATOR 5KV TRIAC 6DIP 5L Toshiba Semiconductor and Storage |
2,587 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tube | Obsolete | Triac | Yes | 1 | 5000Vrms | 600 V | 200V/µs | 10mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
|
TLP361J(F)OPTOISOLATOR 5KV TRIAC 4DIP Toshiba Semiconductor and Storage |
2,387 |
|
Datasheet |
- | 4-DIP (0.300", 7.62mm) | Tube | Last Time Buy | Triac | Yes | 1 | 5000Vrms | 600 V | 200V/µs | 10mA | 100 mA | 600µA (Typ) | 30µs | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 4-DIP | UR |
.jpg)
|

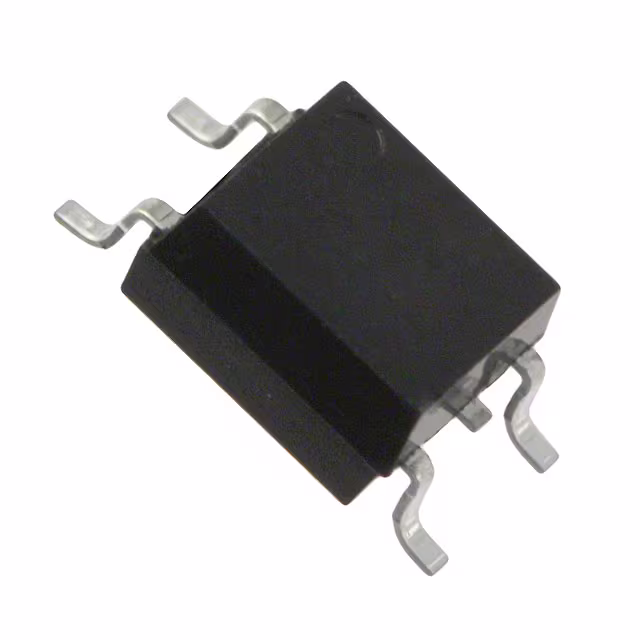

TLP166J(V4,C,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP Toshiba Semiconductor and Storage |
3,426 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tube | Active | Triac | Yes | 1 | 2500Vrms | 600 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR, VDE |
|
TLP160G(U,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP Toshiba Semiconductor and Storage |
4,410 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tube | Obsolete | Triac | No | 1 | 2500Vrms | 400 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | 30µs | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
|
|
TLP161G(TPR,U,C,F)OPTOISOLATOR 2.5KV TRIAC 6MFSOP Toshiba Semiconductor and Storage |
3,770 |
|
- |
- | 6-SOIC (0.173", 4.40mm Width), 4 Leads | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 2500Vrms | 400 V | 200V/µs | 10mA | 70 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Surface Mount | 6-MFSOP, 4 Lead | UR |
|
|
TLP3042(TP1,S,C,F)X36 PB-F PHOTOCOUPLER SMD T&R JA Toshiba Semiconductor and Storage |
2,256 |
|
Datasheet |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Tape & Reel (TR) | Obsolete | Triac | Yes | 1 | 5000Vrms | 400 V | 200V/µs | 10mA | 100 mA | 600µA (Typ) | - | 1.15V | 50 mA | -40°C ~ 100°C | Through Hole | 6-DIP (Cut), 5 Lead | BSI, SEMKO, UR |
|
|
TLP3031(S,C,F)OPTOCOUPLER TRANS Toshiba Semiconductor and Storage |
3,317 |
|
- |
- | 6-DIP (0.300", 7.62mm), 5 Leads | Bulk | Obsolete | Triac | Yes | 1 | 5000Vrms | 250 V | - | 15mA | 100 mA | - | - | - | - | - | Through Hole | 6-DIP (Cut), 5 Lead | SEMKO, UR |
