Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Material | Coil Type | Features | Contact Form | Termination Style | Seal Rating | Operating Temperature | Must Operate Voltage | Release Time | Must Release Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JWD-172-1RELAY REED SPDT 500MA 5V |
3,171 |
|
Datasheet |
JWD | Tube | Active | Through Hole | 5VDC | 500 mA | 28VDC - Max | 25 mA | Ruthenium (Ru) | Non Latching | - | SPDT (1 Form C) | PC Pin | - | -35°C ~ 85°C | 3.8 VDC | 3 ms | 0.5 VDC | 1.5 ms |
|
VN-2A12210V/1A VERTICAL PACKAGE REED RE |
150 |
|
Datasheet |
VN-2A | Tray | Active | Through Hole | 12VDC | 500 mA | 120VAC, 170VDC - Max | 17.1 mA | - | Non Latching | - | DPST-NO (2 Form A) | PC Pin | Sealed - Hermetically | -40°C ~ 85°C | 8.8 VDC | 0.5 ms | 1.2 VDC | 0.5 ms |
|
|
7141-24-1100RELAY REED SPDT 250MA 24V |
205 |
|
Datasheet |
7000 | Bulk | Obsolete | Through Hole | 24VDC | 250 mA | 150VAC, 150VDC - Max | 5.7 mA | - | Non Latching | - | SPDT (1 Form C) | PC Pin | - | -20°C ~ 85°C | 18 VDC | 2.5 ms | 2 VDC | 2 ms |
|
7003-5118RELAY REED 3PST 500MA 5V |
121 |
|
Datasheet |
7000 | Tube | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 16.7 mA | - | Non Latching | - | 3PST-NO (3 Form A) | PC Pin | - | - | 3.75 VDC | 0.1 ms | 0.4 VDC | 0.5 ms |
|
|
BFS-1A05CW250V/1A HIGH TEMPERATURE REED RE |
101 |
|
Datasheet |
BFS | Tube | Active | Through Hole | 5VDC | 500 mA | 200VDC - Max | 13.5 mA | - | Non Latching | Coaxial Shield | SPST-NO (1 Form A) | PC Pin | Sealed - Hermetically | -25°C ~ 85°C | 3.8 VDC | 0.1 ms | 0.4 VDC | 0.5 ms |
|
|
BU-1C05J6GHZ, 200V/0.2A HIGH FREQUENCE R |
235 |
|
Datasheet |
BU | Tube | Active | Surface Mount | 5VDC | 100 mA | 30VAC, 30VDC - Max | 45.5 mA | - | Non Latching | - | SPDT (1 Form C) | J Lead | Sealed - Hermetically | -20°C ~ 85°C | 3.8 VDC | 0.3 ms | 0.4 VDC | 0.3 ms |
|
|
BFH-2C12W200V/0.5A HIGH TEMPERATURE REED |
400 |
|
Datasheet |
BFH | Tube | Active | Through Hole | 12VDC | 250 mA | 100VDC - Max | 24 mA | - | Non Latching | - | DPDT (2 Form C) | PC Pin | Sealed - Hermetically | -40°C ~ 125°C | 6.7 VDC | 2 ms | 1 VDC | 1.5 ms |
|
|
VN-4A05210V/1A VERTICAL PACKAGE REED RE |
120 |
|
Datasheet |
VN-4A | Tray | Active | Through Hole | 5VDC | 500 mA | 120VAC, 170VDC - Max | 25 mA | - | Non Latching | - | 4PST-NO (4 Form A) | PC Pin | Sealed - Hermetically | -40°C ~ 85°C | 3.75 VDC | 0.5 ms | 0.7 VDC | 0.5 ms |
|
|
VN-4A12210V/1A VERTICAL PACKAGE REED RE |
150 |
|
Datasheet |
VN-4A | Tray | Active | Through Hole | 12VDC | 500 mA | 120VAC, 170VDC - Max | 17.1 mA | - | Non Latching | - | 4PST-NO (4 Form A) | PC Pin | Sealed - Hermetically | -40°C ~ 85°C | 8.8 VDC | 0.5 ms | 1.2 VDC | 0.5 ms |
|
|
DBR72475URELAY REED SPST-NC 7.5KV 24V |
2 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 24VDC | 3 A | 1000VAC, 1000VDC - Max | 25.9 mA | Rhodium (Rh) | Non Latching | - | SPST-NC (1 Form B) | PC Pin | - | -20°C ~ 70°C | 20 VDC | 3 ms | 4 VDC | 2 ms |
|
|
BFM-1M12E2000V/3.0A REED RELAY, 1 FORM A |
103 |
|
Datasheet |
BFM | Tube | Active | Through Hole | 12VDC | 2 A | 1500VDC - Max | 48 mA | - | Non Latching | Electrostatic Shield | SPST-NO (1 Form A) | PC Pin | Sealed - Hermetically | -25°C ~ 85°C | 9 VDC | 1.5 ms | 1 VDC | 2 ms |
|
|
BFM-1M05C2000V/3.0A REED RELAY, 1 FORM A |
45 |
|
Datasheet |
BFM | Tube | Active | Through Hole | 5VDC | 2 A | 1500VDC - Max | 67 mA | - | Non Latching | Coaxial Shield | SPST-NO (1 Form A) | PC Pin | Sealed - Hermetically | -25°C ~ 85°C | 3.8 VDC | 1.5 ms | 0.4 VDC | 2 ms |
|
1393771-8JWD-171-12=REED RELAYS |
842 |
|
Datasheet |
JWD | Box | Active | Through Hole | 5VDC | 500 mA | 100VDC - Max | 10 mA | Ruthenium (Ru) | Non Latching | - | SPST-NC (1 Form B) | PC Pin | - | -35°C ~ 85°C | 3.8 VDC | 0.5 ms | 0.5 VDC | 1.5 ms |
|
2377-05-020RELAY REED DPST 500MA 5V |
80 |
|
Datasheet |
2370 | Tube | Active | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 55.6 mA | - | Non Latching | - | DPST-NO (2 Form A) | PC Pin | Sealed - Hermetically | -40°C ~ 125°C | 2.5 VDC | 0.15 ms | 0.4 VDC | 0.5 ms |
|

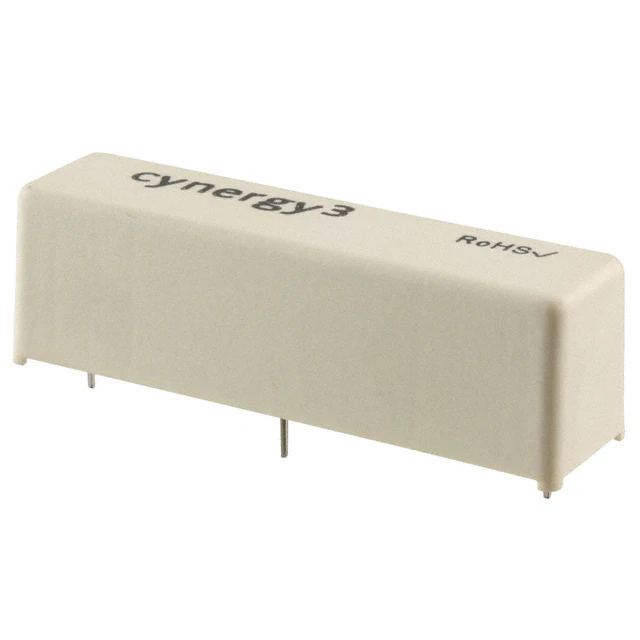

DAR70510RELAY REED SPST-NO 3A 5V |
62 |
|
Datasheet |
DA | Bulk | Active | Through Hole | 5VDC | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 70°C | 3.7 VDC | 2 ms | 0.5 VDC | 3 ms |
|
5503-24-1RELAY REED SPST 3A 24V |
3 |
|
Datasheet |
5500 | Tube | Active | Through Hole | 24VDC | 3 A | 3500VAC, 3500VDC - Max | 41.7 mA | - | Non Latching | EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 18 VDC | 3 ms | 2 VDC | 3 ms |
|
DAT72410SRELAY REED SPST-NO 2A 24V |
24 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 24VDC | 2 A | 7000VAC, 7000VDC - Max | 30.7 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | Quick Connect - 0.250" (6.3mm) | - | -20°C ~ 70°C | 20 VDC | 2 ms | 4 VDC | 3 ms |
|
DAT72410F-HRRELAY REED SPST-NO 2A 24V |
20 |
|
Datasheet |
D-HR | Tray | Active | Through Hole | 24VDC | 2 A | 7000VAC, 7000VDC - Max | 30.8 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 20 VDC | 2 ms | 4 VDC | 3 ms |
|
|
DAT70515F-HRRELAY REED SPST-NO 2A 5V |
6 |
|
Datasheet |
D-HR | Tray | Active | Through Hole | 5VDC | 2 A | 10000VAC, 10000VDC - Max | 313 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 3.7 VDC | 2 ms | 0.5 VDC | 3 ms |
|
HE3621A2410RELAY REED SPST 500MA 24V |
76 |
|
Datasheet |
HE3600 | Tube | Active | Through Hole | 24VDC | 500 mA | 200VDC - Max | 11.1 mA | - | Non Latching | Diode | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 85°C | 16 VDC | 1 ms | 2 VDC | 1 ms |
