Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Material | Coil Type | Features | Contact Form | Termination Style | Seal Rating | Operating Temperature | Must Operate Voltage | Release Time | Must Release Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SIL05-1A75-71DRELAY REED SPST 0.5A 5V |
80 |
|
Datasheet |
SIL | Tube | Active | Through Hole | 5VDC | 500 mA | 500VAC, 500VDC - Max | 25 mA | - | Non Latching | Diode | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 70°C | 3.5 VDC | 0.1 ms | 0.75 VDC | 0.5 ms |
|
S2-24PRELAY REED SPST 700MA 24V |
35 |
|
Datasheet |
S2 | Bulk | Active | Through Hole | 24VDC | 700 mA | 300VAC, 350VDC - Max | 24 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | Axial | - | -40°C ~ 85°C | 19 VDC | 0.5 ms | 4 VDC | 1 ms |
|
S8-2405URELAY REED SPST 1A 24V UL |
60 |
|
Datasheet |
S8 | Bulk | Active | Through Hole | 24VDC | 1 A | 300VAC, 350VDC - Max | 15.5 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 85°C | 19 VDC | 0.5 ms | 4 VDC | 1 ms |
|
2911-12-311RELAY REED SPDT 250MA 12V |
26 |
|
Datasheet |
2900 | Tube | Active | Through Hole | 12VDC | 250 mA | 150VAC, 150VDC - Max | 8 mA | - | Non Latching | - | SPDT (1 Form C) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 2 ms | 1 VDC | 1 ms |
|
|
S8-0504RELAY REED SPST 1A 5V |
37 |
|
Datasheet |
S8 | Bulk | Active | Through Hole | 5VDC | 1 A | 300VAC, 350VDC - Max | 41.7 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 85°C | 4 VDC | 0.5 ms | 1 VDC | 1 ms |
|
|
S8-2405VRELAY REED SPST 1A 24V |
9 |
|
Datasheet |
S8 | Bulk | Active | Through Hole | 24VDC | 1 A | 1000VAC, 1000VDC - Max | 15.5 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 85°C | 19 VDC | 0.5 ms | 4 VDC | 1 ms |
|
7301-05-1000RELAY REED SPST 500MA 5V |
52 |
|
Datasheet |
7000 | Bulk | Active | Through Hole | 5VDC | 500 mA | 500VAC, 500VDC - Max | 28.6 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.1 ms | 0.4 VDC | 1 ms |
|
|
S8-2405VURELAY REED SPST 1A 24V UL |
79 |
|
Datasheet |
S8 | Bulk | Active | Through Hole | 24VDC | 1 A | 1000VAC, 1000VDC - Max | 15.5 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 85°C | 19 VDC | 0.5 ms | 4 VDC | 1 ms |
|
S1-05-BDMRELAY REED 1 N/C 1.5KV 5V |
49 |
|
Datasheet |
S1 | Bulk | Active | Through Hole | 5VDC | 500 mA | 1000VDC - Max | 6.4 mA | Rhodium (Rh) | Non Latching | Diode, EMI Shielded | SPST-NC (1 Form B) | PC Pin | - | -40°C ~ 85°C | 3.75 VDC | - | 0.5 VDC | - |
|
|
S1-24-BDMRELAY REED 1 N/C 1.5KV 24V |
8 |
|
Datasheet |
S1 | Bulk | Active | Through Hole | 24VDC | 500 mA | 1000VDC - Max | 12 mA | Rhodium (Rh) | Non Latching | Diode, EMI Shielded | SPST-NC (1 Form B) | PC Pin | - | -40°C ~ 85°C | 18 VDC | - | 2.4 VDC | - |
|
|
3602-05-52RELAY REED DPST 250MA 5V |
12 |
|
Datasheet |
3600 | Tube | Active | Through Hole | 5VDC | 250 mA | 150VAC, 150VDC - Max | 14.3 mA | - | Non Latching | - | DPST-NO (2 Form A) | PC Pin | - | -20°C ~ 85°C | 3.8 VDC | 0.1 ms | 0.4 VDC | 0.75 ms |
|

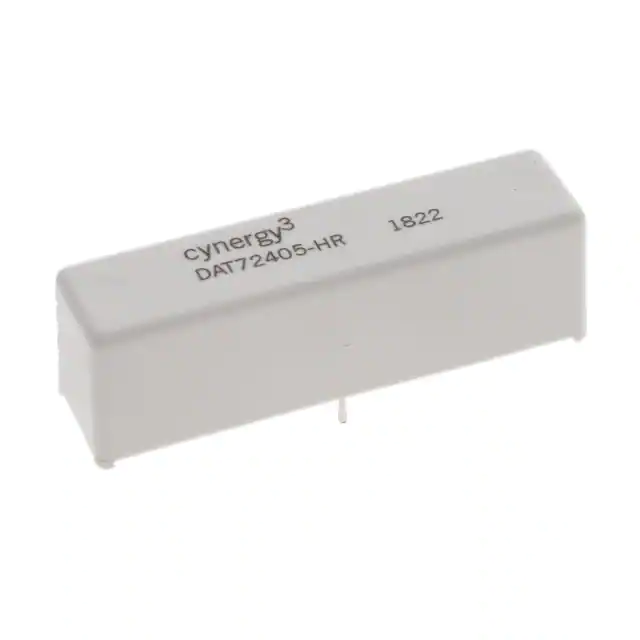

DAT72405-HRRELAY REED 5KV 24V SPST-NO |
40 |
|
Datasheet |
D-HR | Bulk | Active | Through Hole | 24VDC | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 70°C | 20 VDC | 2 ms | 4 VDC | 3 ms |
|

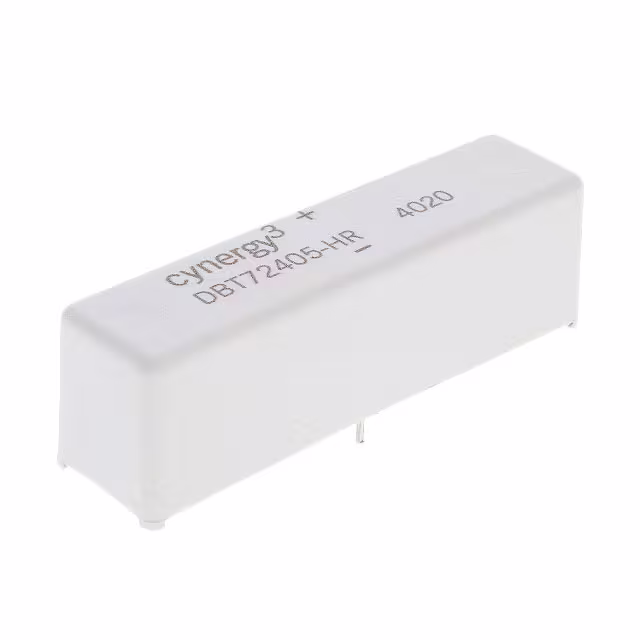

DBT72405-HRRELAY REED 5KV 24V SPST-NC |
20 |
|
Datasheet |
D-HR | Bulk | Active | Through Hole | 24VDC | 2 A | 3500VAC, 3500VDC - Max | 25.9 mA | Tungsten (W) | Non Latching | - | SPST-NC (1 Form B) | PC Pin | - | -20°C ~ 70°C | 20 VDC | 3 ms | 4 VDC | 2 ms |
|
3351-4275-246RELAY REED HV SPST-NC 50W 3A 24V |
12 |
|
Datasheet |
3350 | Bulk | Active | Through Hole | 24VDC | 3 A | 7500VAC, 7500VDC - Max | 41.7 mA | - | Non Latching | - | SPST-NC (1 Form B) | PC Pin | - | -20°C ~ 85°C | 18 VDC | 3 ms | 2 VDC | 3 ms |
|
DAR72410PRELAY REED SPST-NO 3A 24V |
16 |
|
Datasheet |
DA | Tray | Active | Chassis Mount | 24VDC | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | Rhodium (Rh) | Non Latching | - | SPST-NO (1 Form A) | Solder Turret | - | -20°C ~ 70°C | 20 VDC | 2 ms | 4 VDC | 3 ms |
|
|
DAT71210PRELAY REED SPST-NO 2A 12V |
22 |
|
Datasheet |
DA | Tray | Active | Chassis Mount | 12VDC | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | Solder Turret | - | -20°C ~ 70°C | 9 VDC | 2 ms | 1.25 VDC | 3 ms |
|
DAT71210SRELAY REED SPST-NO 2A 12V |
19 |
|
Datasheet |
DA | Bulk | Active | Chassis Mount | 12VDC | 2 A | 7000VAC, 7000VDC - Max | 80 mA | Tungsten (W) | Non Latching | - | SPST-NO (1 Form A) | Quick Connect - 0.250" (6.3mm) | - | -20°C ~ 70°C | 9 VDC | 2 ms | 1.25 VDC | 3 ms |
|
DBT72410URELAY REED SPST-NC 2A 24V |
25 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 24VDC | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Tungsten (W) | Non Latching | - | SPST-NC (1 Form B) | PC Pin | - | -20°C ~ 70°C | 20 VDC | 3 ms | 4 VDC | 2 ms |
|
|
DBT71210SRELAY REED SPST-NC 2A 12V |
20 |
|
Datasheet |
DB | Bulk | Active | Chassis Mount | 12VDC | 2 A | 7000VAC, 7000VDC - Max | 50 mA | Tungsten (W) | Non Latching | - | SPST-NC (1 Form B) | Quick Connect - 0.250" (6.3mm) | - | -20°C ~ 70°C | 9 VDC | 3 ms | 1.25 VDC | 2 ms |
|
DBT72410FRELAY REED SPST-NC 2A 24V |
2 |
|
Datasheet |
DB | Bulk | Active | Through Hole | 24VDC | 2 A | 7000VAC, 7000VDC - Max | 25.9 mA | Tungsten (W) | Non Latching | - | SPST-NC (1 Form B) | PC Pin, Wire Leads | - | -20°C ~ 70°C | 20 VDC | 3 ms | 4 VDC | 2 ms |
