Reed Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Coil Current | Contact Material | Coil Type | Features | Contact Form | Termination Style | Seal Rating | Operating Temperature | Must Operate Voltage | Release Time | Must Release Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

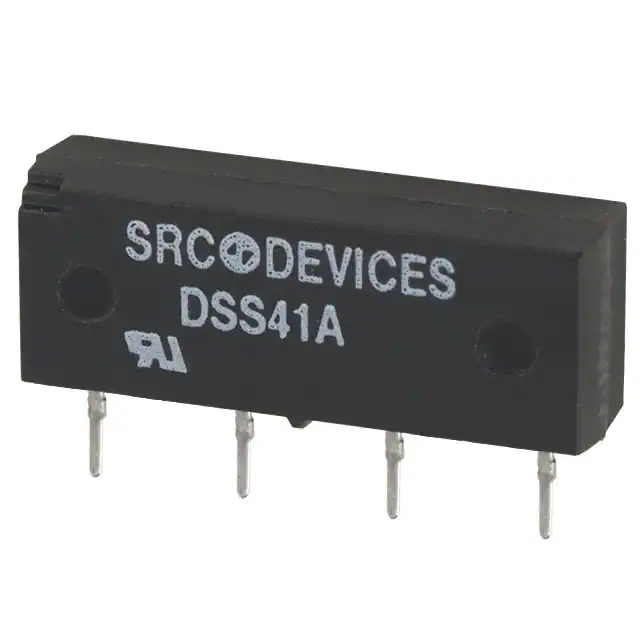

DSS41A05BRELAY REED SPST 500MA 5V |
4,350 |
|
Datasheet |
DSS4 | Tube | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | Diode | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 85°C | 3.75 VDC | 0.5 ms | 0.8 VDC | 0.5 ms |
|
|
DSS41A12RELAY REED SPST 500MA 12V |
2,089 |
|
Datasheet |
DSS4 | Tube | Obsolete | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 85°C | 8.6 VDC | 0.5 ms | 1.5 VDC | 0.5 ms |
|
|
DSS41A12BRELAY REED SPST 500MA 12V |
4,400 |
|
Datasheet |
DSS4 | Tube | Obsolete | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | - | Non Latching | Diode | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 85°C | 8.6 VDC | 0.5 ms | 1.5 VDC | 0.5 ms |
|
|
DSS41A24RELAY REED SPST 500MA 24V |
4,732 |
|
Datasheet |
DSS4 | Tube | Obsolete | Through Hole | 24VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 85°C | 17.5 VDC | 0.5 ms | 2.5 VDC | 0.5 ms |
|
|
DSS41A24BRELAY REED SPST 500MA 24V |
2,458 |
|
Datasheet |
DSS4 | Tube | Obsolete | Through Hole | 24VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 85°C | 17.5 VDC | 0.5 ms | 2.5 VDC | 0.5 ms |
|
8001-05-001RELAY REED SPST 500MA 5V |
2,096 |
|
Datasheet |
8000 | Tube | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.8 VDC | 0.5 ms | 0.5 VDC | 0.5 ms |
|
|
8002-05-10RELAY REED DPST 500MA 5V |
4,108 |
|
Datasheet |
8000 | Tube | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 25 mA | - | Non Latching | Electrostatic Shield | DPST-NO (2 Form A) | PC Pin | - | -20°C ~ 85°C | 3.8 VDC | 0.5 ms | 0.5 VDC | 0.5 ms |
|
|
8041-05-001RELAY REED SPDT 250MA 5V |
3,248 |
|
Datasheet |
8000 | Tube | Obsolete | Through Hole | 5VDC | 250 mA | 100VAC, 100VDC - Max | 25 mA | - | Non Latching | - | SPDT (1 Form C) | PC Pin | - | -20°C ~ 85°C | 3.8 VDC | 1 ms | 0.5 VDC | 1 ms |
|
8L01-12-101RELAY REED SPST 500MA 12V |
4,919 |
|
Datasheet |
8L | Tube | Obsolete | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 24 mA | - | Non Latching | Electrostatic Shield | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 9.6 VDC | 0.5 ms | 1 VDC | 0.5 ms |
|
|
8L01-24-101RELAY REED SPST 500MA 24V |
3,849 |
|
Datasheet |
8L | Tube | Obsolete | Through Hole | 24VDC | 500 mA | 200VAC, 200VDC - Max | 11 mA | - | Non Latching | Electrostatic Shield | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 19.2 VDC | 0.5 ms | 2 VDC | 0.5 ms |
|
9081-05-00RELAY REED SPST 500MA 5V |
2,488 |
|
Datasheet |
9000, Spartan | Bulk | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.2 ms | 0.4 VDC | 0.5 ms |
|
|
9081-12-00RELAY REED SPST 500MA 12V |
4,894 |
|
Datasheet |
9000, Spartan | Bulk | Obsolete | Through Hole | 12VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 9 VDC | 0.2 ms | 1 VDC | 0.5 ms |
|
|
9081-24-00RELAY REED SPST 500MA 24V |
3,004 |
|
Datasheet |
9000, Spartan | Bulk | Obsolete | Through Hole | 24VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 18 VDC | 0.2 ms | 2 VDC | 0.5 ms |
|
8501-0005RELAY REED SPDT 24V |
4,340 |
|
- |
8500 | Tube | Obsolete | - | 24VDC | - | - | - | - | Non Latching | - | SPDT (1 Form C) | - | - | - | - | - | - | - |
|
MS05-1A71-75LHRRELAY REED SPST 500MA 5V |
4,686 |
|
Datasheet |
MS | Tube | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 65°C | 3.5 VDC | 0.1 ms | 0.75 VDC | 0.5 ms |
|

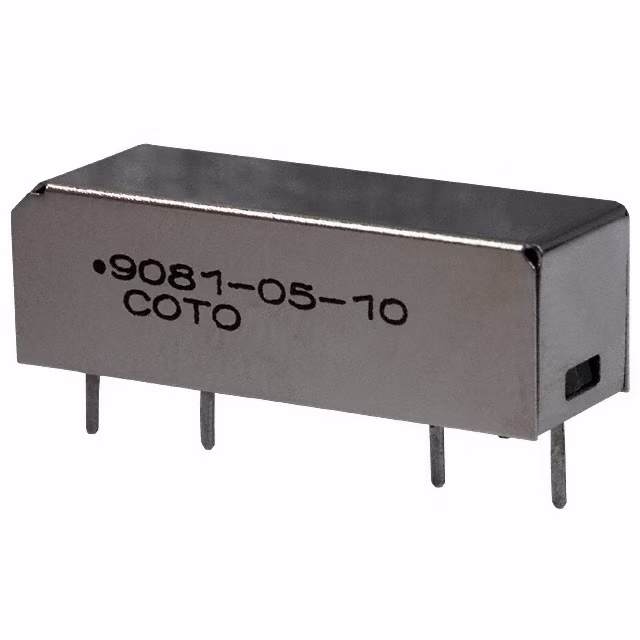

9081-05-10RELAY REED SPST 500MA 5V |
2,411 |
|
Datasheet |
9000, Spartan | Tube | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 3.75 VDC | 0.2 ms | 0.4 VDC | 0.5 ms |
|
|
9081-24-10RELAY REED SPST 500MA 24V |
4,997 |
|
Datasheet |
9000, Spartan | Bulk | Obsolete | Through Hole | 24VDC | 500 mA | 200VAC, 200VDC - Max | 12 mA | - | Non Latching | EMI Shielded | SPST-NO (1 Form A) | PC Pin | - | -20°C ~ 85°C | 18 VDC | 0.2 ms | 2 VDC | 0.5 ms |
|
|
DSS71A05RELAY REED SPST 500MA 5V |
3,751 |
|
Datasheet |
DSS7 | Tube | Obsolete | Through Hole | 5VDC | 500 mA | 200VAC, 200VDC - Max | 10 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | - | -40°C ~ 80°C | 3.75 VDC | 0.5 ms | 0.8 VDC | 0.5 ms |
|
|
HE221A0550RELAY REED SPST 500MA 5V |
4,764 |
|
Datasheet |
200 | Bulk | Active | Through Hole | 5VDC | 500 mA | 200VDC - Max | 35.7 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | Sealed - Hermetically | -40°C ~ 85°C | 3.5 VDC | 1 ms | 0.28 VDC | 1 ms |
|
|
HE221A1250RELAY REED SPST 500MA 12V |
4,568 |
|
Datasheet |
200 | Bulk | Active | Through Hole | 12VDC | 500 mA | 200VDC - Max | 14 mA | - | Non Latching | - | SPST-NO (1 Form A) | PC Pin | Sealed - Hermetically | -40°C ~ 85°C | 8.4 VDC | 1 ms | 0.7 VDC | 1 ms |
