Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Termination Style | Current Rating (Amps) | Voltage Rating - AC | Number of Decks | Voltage Rating - DC | Actuator Type | Mounting Style | Actuator Length | Features | Contact Finish | Angle of Throw | Contact Material | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

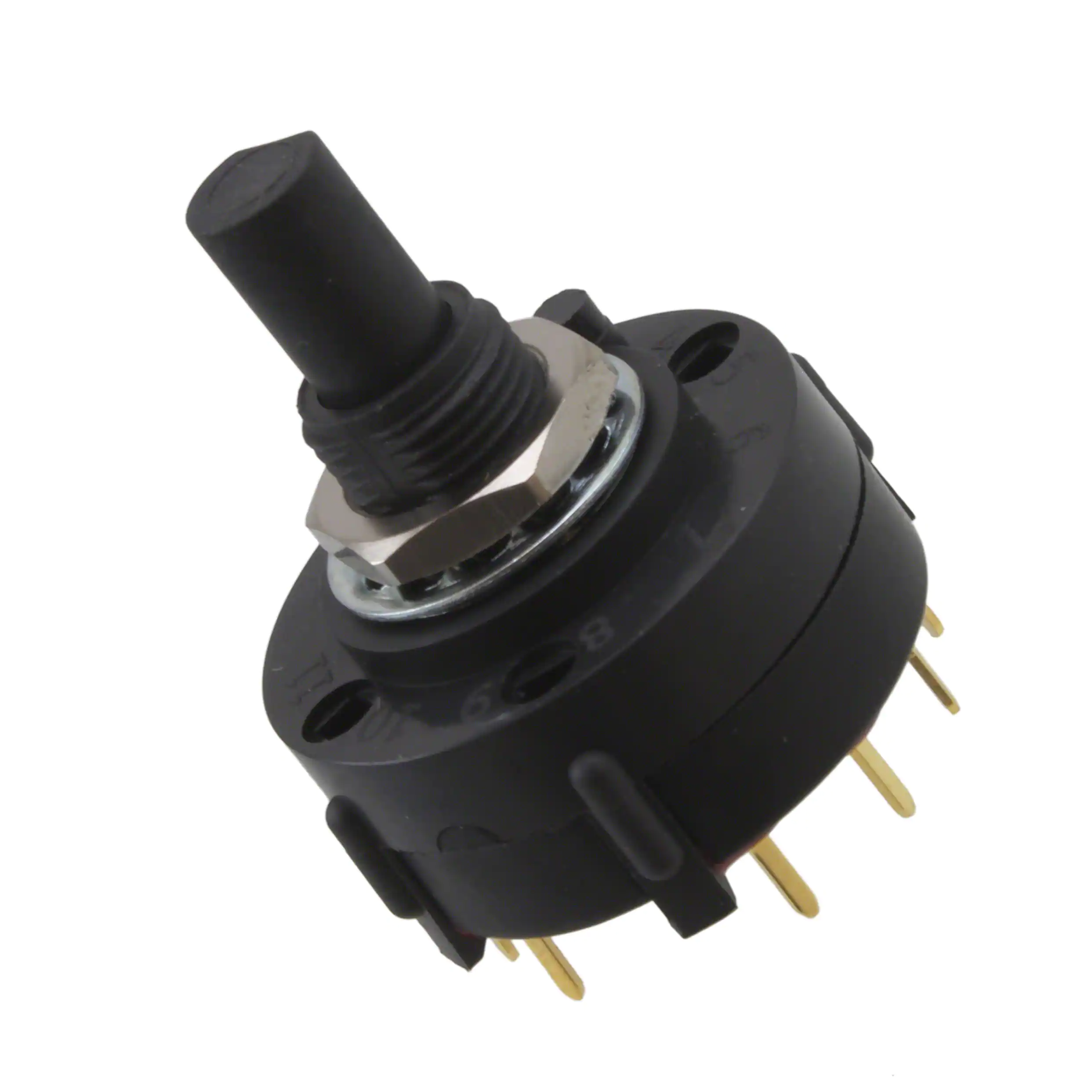

A20503RNCGESWITCH ROTARY 5POS 2.5A 125V |
78 |
|
Datasheet |
A | Tray | Active | 5 | Fixed | 2 | DP5T | Non-Shorting (BBM) | PC Pin | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount, Through Hole | 9.53mm | Epoxy Sealed Terminals | Gold | 30° | Silver (Ag) | 14.48mm |
|

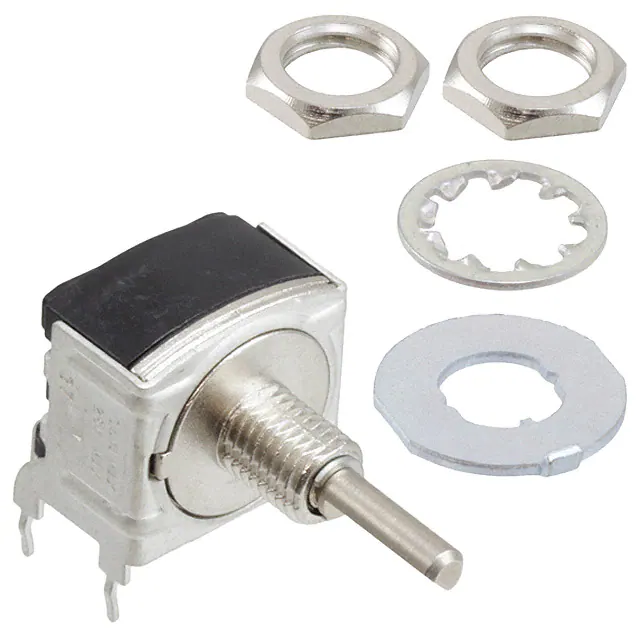

MRB12HSWITCH ROTARY 2POS 0.4VA 28V |
7 |
|
Datasheet |
MRB | Bulk | Active | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | PC Pin | 0.4VA (AC/DC) | 28 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole, Right Angle | 10.00mm | Sealed - Fully | Gold | 90° | Beryllium Copper | 12.56mm |
|

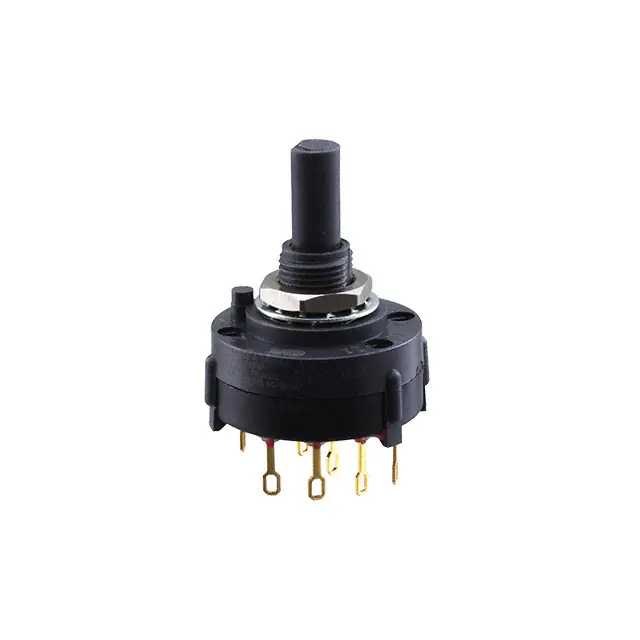

A20405RSZGKSWITCH ROTARY 4POS 2.5A 125V |
24 |
|
Datasheet |
A | Tray | Active | 4 | Fixed | 2 | DP4T | Shorting (MBB) | Solder Lug | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount | 12.70mm | Epoxy Sealed Terminals, Splashproof Bushing Seal | Gold | 30° | Silver (Ag) | 20.83mm |
|

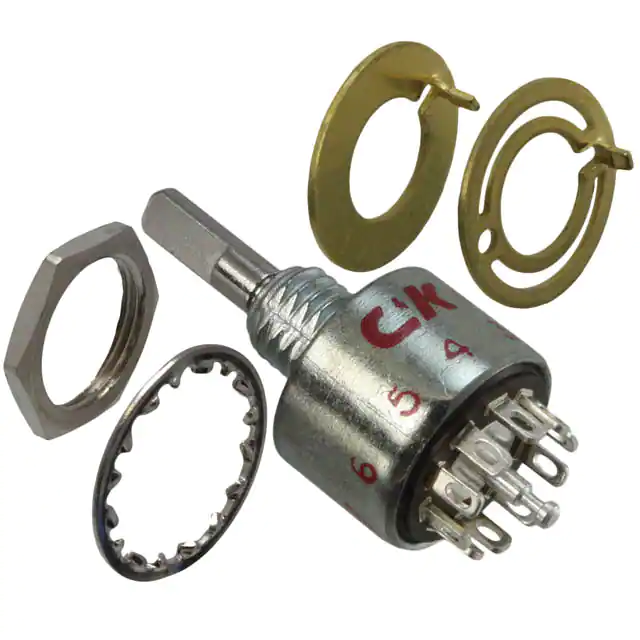

ME00L1NZQDSWITCH ROTARY 10POS 250MA 125V |
43 |
|
Datasheet |
M | Tray | Active | 10 | Continuous | 1 | SP10T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount | 10.16mm | - | Silver | 36° | Copper Alloy | 15.88mm |
|

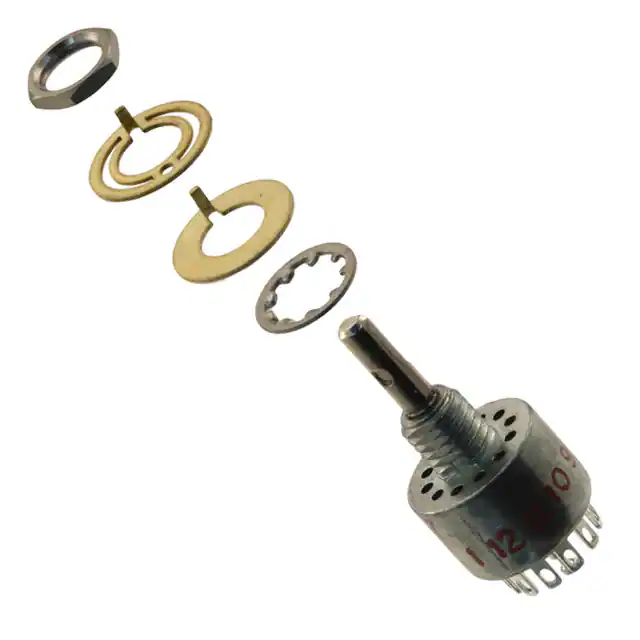

MG00L1NZQDSWITCH ROTARY 12POS 250MA 125V |
21 |
|
Datasheet |
M | Tray | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount | 10.16mm | - | Silver | 30° | Copper Alloy | 15.88mm |
|

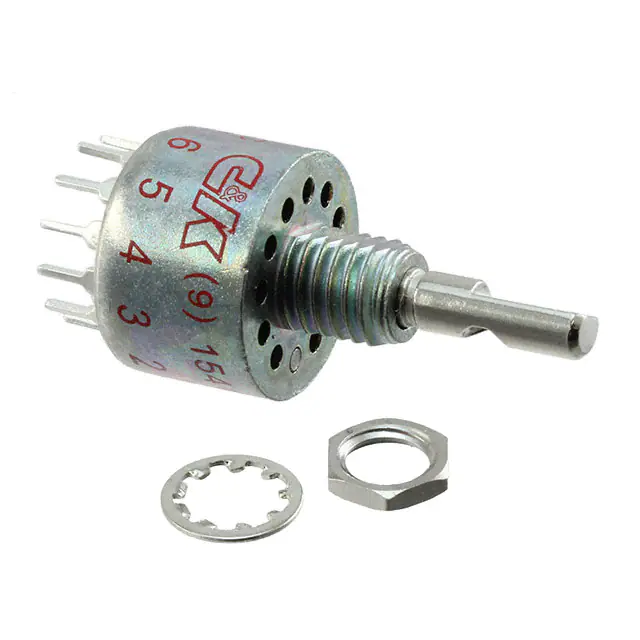

MC12L1NCQDSWITCH ROTARY 12POS 250MA 125V |
65 |
|
Datasheet |
M | Tray | Active | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | PC Pin | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 10.16mm | - | Silver | 30° | Copper Alloy | 10.42mm |
|
56P36-01-1-09NSWITCH ROTARY 9POS 200MA 115V |
35 |
|
Datasheet |
56 | Bulk | Active | 9 | Fixed | 1 | SP9T | Non-Shorting (BBM) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 36° | Brass | 9.58mm |
|
56DP36-01-1-AJSSWITCH ROTARY 2-10POS 200MA 115V |
38 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | SP10T | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 36° | Brass | 9.58mm |
|

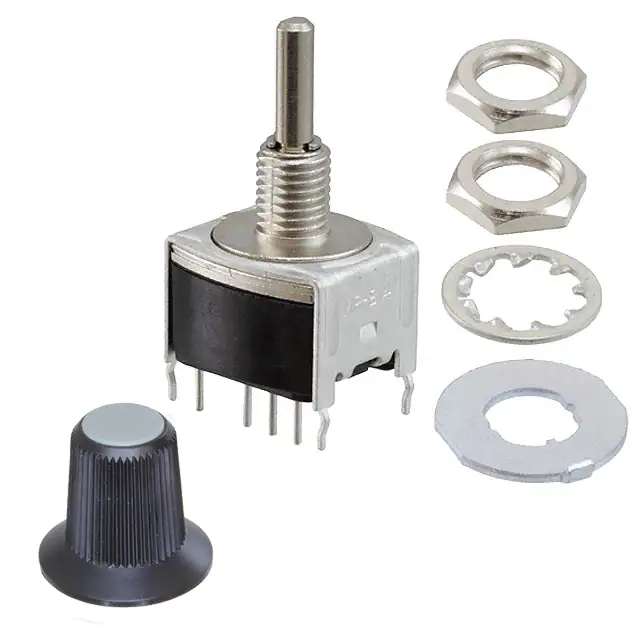

MRB14B-BHSWITCH ROTARY 3POS 0.4VA 28V |
10 |
|
Datasheet |
MRB | Tray | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | PC Pin | 0.4VA (AC/DC) | 28 V | 1 | 28 V | Knob | Panel Mount, Through Hole | 14.30mm | Sealed - Fully | Gold | 45° | Beryllium Copper | 11.00mm |
|
A40303RSMCGKSWITCH ROTARY 3POS 2.5A 125V |
50 |
|
Datasheet |
A | Tray | Active | 3 | Fixed | 4 | 4P3T | Shorting (MBB) | PC Pin | 2.5A (AC), 350mA (DC) | 125 V | 1 | 125 V | Flatted (6.35mm Dia) | Panel Mount, Through Hole | 9.53mm | Modular Base | Gold | 30° | Silver (Ag) | 14.48mm |
|
|
MRB24B-CASWITCH ROTARY 3POS 0.4VA 28V |
25 |
|
Datasheet |
MRB | Box | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | PC Pin | 0.4VA (AC/DC) | 28 V | 1 | 28 V | Knob | Panel Mount, Through Hole | 15.80mm | Sealed - Fully | Gold | 45° | Beryllium Copper | 11.00mm |
|

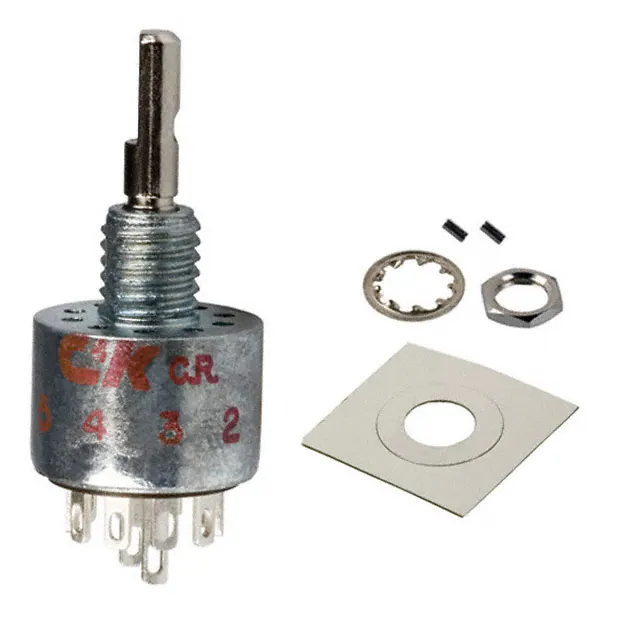

MB00L1NZQDSWITCH ROTARY 5POS 250MA 125V |
80 |
|
Datasheet |
M | Tray | Active | 5 | Continuous | 2 | DP5T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount | 10.16mm | - | Silver | 36° | Copper Alloy | 14.86mm |
|
|
56SP30-01-1-04NSWITCH ROTARY 4POS 200MA 115V |
11 |
|
Datasheet |
56 | Bulk | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | Shaft and Panel Sealed | Silver | 30° | Brass | 9.58mm |
|

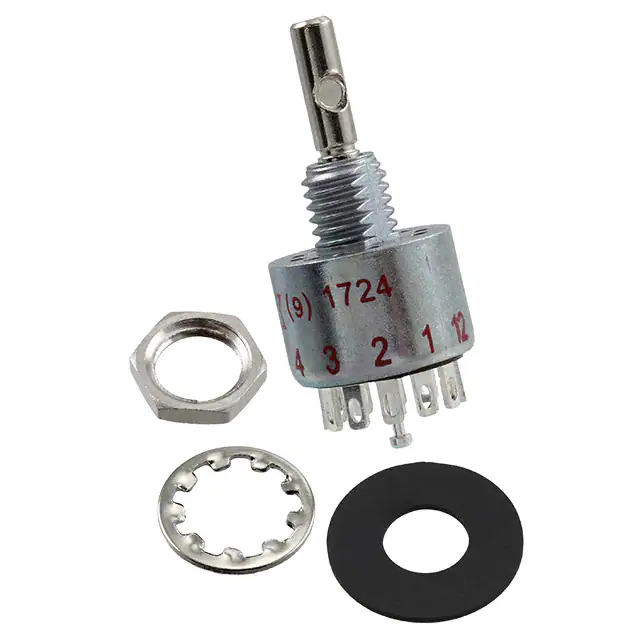

MC12L1NZQFSWITCH ROTARY 12POS 250MA 125V |
63 |
|
Datasheet |
M | Tray | Active | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount | 10.16mm | IP67 - Dust Tight, Waterproof | Silver | 30° | Copper Alloy | 14.86mm |
|
50DP90-01-2-AJNSWITCH ROTARY 2POS 150MA 115V |
40 |
|
Datasheet |
50 | Bulk | Active | 2 | Adjustable | 2 | DPDT | Non-Shorting (BBM) | PC Pin | 150mA (AC), 200mA (DC) | 115 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Gold | 90° | - | 13.64mm |
|

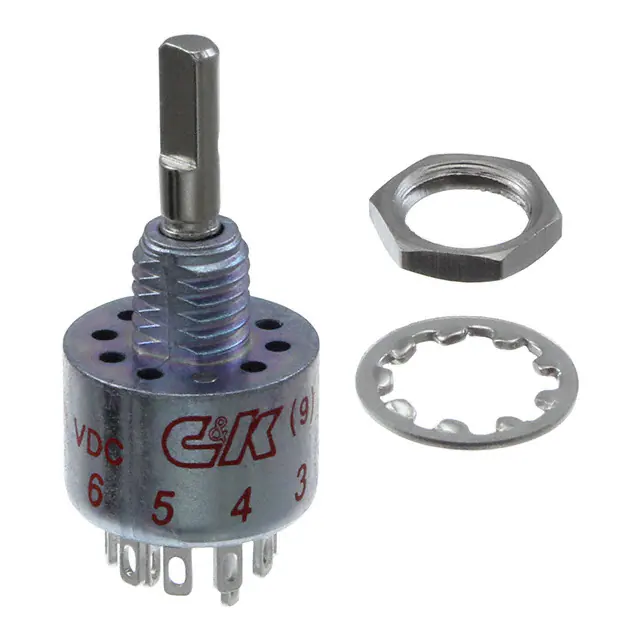

MB04L1NZQDSWITCH ROTARY 4POS 250MA 125V |
18 |
|
Datasheet |
M | Tray | Active | 4 | Fixed | 2 | DP4T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount | 10.16mm | - | Silver | 36° | Copper Alloy | 14.86mm |
|
56SD36-01-2-AJNSWITCH ROTARY 2-5POS 200MA 115V |
4 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | DP5T | Non-Shorting (BBM) | Solder Lug | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount | 9.53mm | Shaft and Panel Sealed | Silver | 36° | Brass | 12.19mm |
|
|
56A30-01-4-02NSWITCH ROTARY 2POS 200MA 115V |
16 |
|
Datasheet |
56 | Bulk | Active | 2 | Fixed | 4 | 4PDT | Non-Shorting (BBM) | Solder Lug | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount | 9.53mm | - | Silver | 30° | Brass | 12.19mm |
|
|
56SD36-01-2-AJSSWITCH ROTARY 2-5POS 200MA 115V |
42 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | DP5T | Shorting (MBB) | Solder Lug | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount | 9.53mm | Shaft and Panel Sealed | Silver | 36° | Brass | 12.19mm |
|

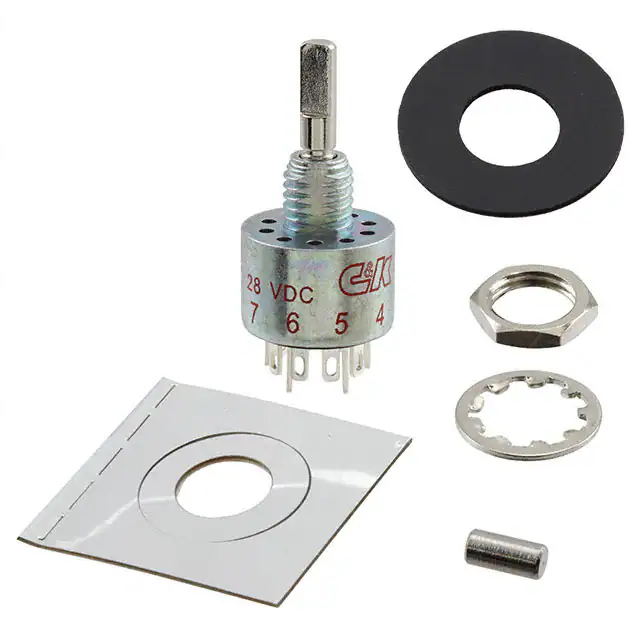

MB00L1NZQFSWITCH ROTARY 5POS 250MA 125V |
78 |
|
Datasheet |
M | Tray | Active | 5 | Continuous | 2 | DP5T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount | 10.16mm | IP67 - Dust Tight, Waterproof | Silver | 36° | Copper Alloy | 14.86mm |
