Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
75BP36-01-1-06NSWITCH ROTARY 6POS 200MA 115V |
25 |
|
Datasheet |
75 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Silver Cadmium Oxide (AgCdO) | Gold | Panel Mount, Through Hole | PC Pin | - | 12.70mm |
|
50KM36-01-1-04NSWITCH ROTARY 4POS 150MA 115V |
25 |
|
Datasheet |
50 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 9.53mm | 36° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
44A30-01-1-06NSWITCH ROTARY 6POS 1A 115V |
16 |
|
Datasheet |
44 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
C3P0604N-ASWITCH ROTARY 2-4POS 100MA 125V |
5 |
|
Datasheet |
C3 | Bulk | Active | 2 ~ 4 | Adjustable | 2 | 3 | 3P4T | Non-Shorting (BBM) | 100mA (AC), 250mA (DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 9.52mm | 30° | Brass | Silver | Panel Mount, Through Hole, Right Angle | PC Pin | - | 30.00mm |
|
C7D0123NSWITCH ROTARY 23POS 500MA 125V |
15 |
|
Datasheet |
C7 | Bulk | Active | 23 | Fixed | 1 | 1 | SP23T | Non-Shorting (BBM) | 500mA (AC), 1A (DC) | 125 V | 28 V | Flatted (6.35mm Dia) | 14.29mm | 15° | Brass | Silver | Panel Mount | Solder Lug | - | 20.60mm |
|
D2D0112NSWITCH ROTARY 2-12POS 250MA 115V |
9 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 11.99mm |
|
77SPT36-01-1-10S-CSWITCH ROTARY 10POS 50MA 115V |
2 |
|
Datasheet |
77 | Bulk | Active | 10 | Continuous | 1 | 1 | SP10T | Shorting (MBB) | 50mA (AC), 200mA (DC) | 115 V | 28 V | Flatted (3.17mm Dia) | 7.98mm | 36° | Silver Cadmium Oxide (AgCdO) | Gold | Panel Mount, Through Hole | PC Pin | Shaft and Panel Sealed | 4.57mm |
|
D2D0305NSWITCH ROTARY 2-5POS 250MA 115V |
5 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 3 | 3P5T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 11.99mm |
|
19101-08ULSWITCH ROTARY 8POS 15A 120V |
15 |
|
Datasheet |
19 | Bulk | Active | 8 | Fixed | 1 | 1 | SP8T | Non-Shorting (BBM) | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | 24.13mm |
|
D4G0211NSWITCH ROTARY 2-11POS 500MA 115V |
5 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 11 | Adjustable | 2 | 1 | SP11T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 28.55mm |
|
D4G0405NSWITCH ROTARY 2-5POS 500MA 115V |
2 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 2 | DP5T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 28.55mm |
|
44HS30-01-2-02NSWITCH ROTARY 2POS 1A 115V |
12 |
|
Datasheet |
44 | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Shaft and Panel Sealed | 26.04mm |
|
44D30-01-2-AJNSWITCH ROTARY 2-6POS 1A 115V |
8 |
|
Datasheet |
44 | Bulk | Active | 2 ~ 6 | Adjustable | 1 | 2 | DP6T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 26.04mm |
|
19001-06ULSWITCH ROTARY 6POS 15A 120V |
9 |
|
Datasheet |
19 | Bulk | Active | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.13mm |
|
D2D0605NSWITCH ROTARY 2-5POS 250MA 115V |
3 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 3 | 3P5T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 18.34mm |
|
D2D0406NSWITCH ROTARY 2-6POS 250MA 115V |
6 |
|
Datasheet |
D2 | Bulk | Active | 2 ~ 6 | Adjustable | 2 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC), 550mA (DC) | 115 V | 28 V | Round (6.35mm Dia) | 25.40mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 18.34mm |
|
42D36-02-2-AJNSWITCH ROTARY 2-5POS 1A 115V |
10 |
|
Datasheet |
42 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | 2 | DP5T | Non-Shorting (BBM) | 1A (AC/DC) | 115 V | 28 V | Flatted (6.35mm Dia) | 11.10mm | 36° | Silver Alloy | - | Panel Mount | Solder Lug | - | 34.82mm |
|
19001-10ULSWITCH ROTARY 10POS 15A 120V |
15 |
|
Datasheet |
19 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 15A (AC), 1A (DC) | 120 V | 120 V | Flatted (6.35mm Dia) | 12.70mm | 30° | Silver Alloy | - | Panel Mount | Solder Lug | - | 24.13mm |
|
D4G0411NSWITCH ROTARY 2-11POS 500MA 115V |
6 |
|
Datasheet |
D4 | Bulk | Active | 2 ~ 11 | Adjustable | 4 | 1 | SP11T | Non-Shorting (BBM) | 500mA (AC), 1.5A (DC) | 115 V | 28 V | Round (6.35mm Dia) | 47.63mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 57.10mm |
|

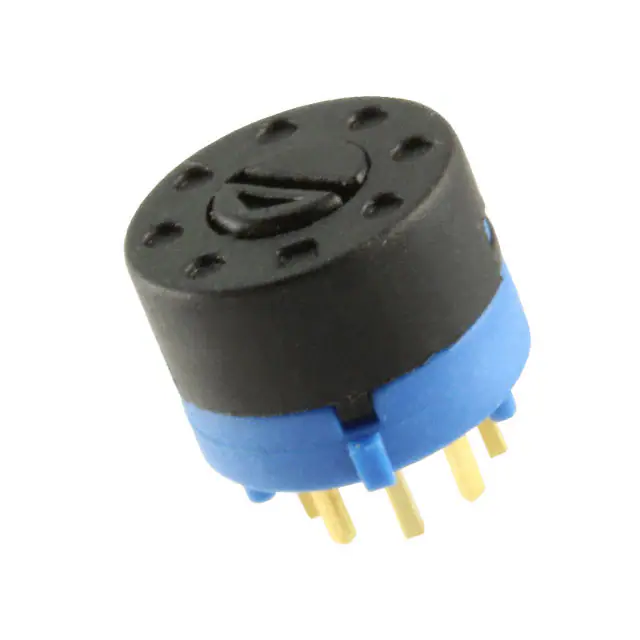

RM101002BCBSWITCH ROTARY 2POS 500MA 24V |
59 |
|
Datasheet |
RM | Tray | Active | 2 | Fixed | 1 | 1 | SPST | Non-Shorting (BBM) | 500mA (DC) | - | 24 V | Screwdriver Slot | Flush | 45° | Brass | Gold | Through Hole | PC Pin | - | 7.37mm |
