Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
56BSD36-01-1-AJNSWITCH ROTARY 2-10POS 200MA 115V |
4,436 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | 1 | SP10T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 36° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|
|
50B90-01-1-04NSWITCH ROTARY 4POS 150MA 115V |
4,315 |
|
Datasheet |
50 | Bulk | Active | 4 | Continuous | 1 | 1 | SP4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Screwdriver Slot | 3.18mm | 90° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
|
50B90-01-1-04N-FSWITCH ROTARY 4POS 150MA 115V |
3,268 |
|
Datasheet |
50 | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 150mA (AC), 200mA (DC) | 115 V | 28 V | Screwdriver Slot | 3.18mm | 90° | - | Gold | Panel Mount | Solder Lug | - | 18.77mm |
|
MD06L1NCQFSWITCH ROTARY 6POS 250MA 125V |
4,394 |
|
Datasheet |
M | Tray | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | 10.42mm |
|
|
MA04L2NCGFSWITCH ROTARY 4POS 250MA 125V |
4,166 |
|
Datasheet |
M | Tray | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Screwdriver Slot | Flush | 36° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | 10.42mm |
|
1-435097-1SWITCH ROTARY 10POS |
2,646 |
|
Datasheet |
6000 | Bulk | Obsolete | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | - | - | - | Screwdriver Slot | Flush | 36° | Phosphor Bronze | Gold | Through Hole | PC Pin | - | - |
|
|
56S36-01-1-10N-CSWITCH ROTARY 10POS 200MA 115V |
4,736 |
|
Datasheet |
56 | Bulk | Active | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|
|
56A30-01-1-12S-FSWITCH ROTARY 12POS 200MA 115V |
4,738 |
|
Datasheet |
56 | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56A36-01-2-05NSWITCH ROTARY 5POS 200MA 115V |
4,483 |
|
Datasheet |
56 | Bulk | Active | 5 | Fixed | 1 | 2 | DP5T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|
|
56BSD36-01-2-AJNSWITCH ROTARY 2-5POS 200MA 115V |
3,202 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 5 | Adjustable | 1 | 2 | DP5T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 36° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|
|
56S36-01-1-10N-FSWITCH ROTARY 10POS 200MA 115V |
3,560 |
|
Datasheet |
56 | Bulk | Active | 10 | Fixed | 1 | 1 | SP10T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|
|
56BS36-01-2-02NSWITCH ROTARY 2POS 200MA 115V |
3,195 |
|
Datasheet |
56 | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 36° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|
|
56BS36-01-2-03NSWITCH ROTARY 3POS 200MA 115V |
3,296 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 1 | 2 | DP3T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Screwdriver Slot | 3.18mm | 36° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|
|
56S36-01-2-02NSWITCH ROTARY 2POS 200MA 115V |
4,895 |
|
Datasheet |
56 | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|
|
56S36-01-2-04NSWITCH ROTARY 4POS 200MA 115V |
3,585 |
|
Datasheet |
56 | Bulk | Active | 4 | Fixed | 1 | 2 | DP4T | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm |
|
|
MA03S1NZQFSWITCH ROTARY 3POS 250MA 125V |
4,242 |
|
Datasheet |
M | Tray | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Silver | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | 14.86mm |
|
|
MC12L3NCGFSWITCH ROTARY 12POS 250MA 125V |
2,454 |
|
Datasheet |
M | Tray | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Round (3.17mm Dia) | 10.16mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | 10.42mm |
|
|
56A30-01-1-11SSWITCH ROTARY 11POS 200MA 115V |
3,545 |
|
Datasheet |
56 | Bulk | Active | 11 | Fixed | 1 | 1 | SP11T | Shorting (MBB) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 30° | Brass | Silver | Panel Mount | Solder Lug | - | 12.19mm |
|

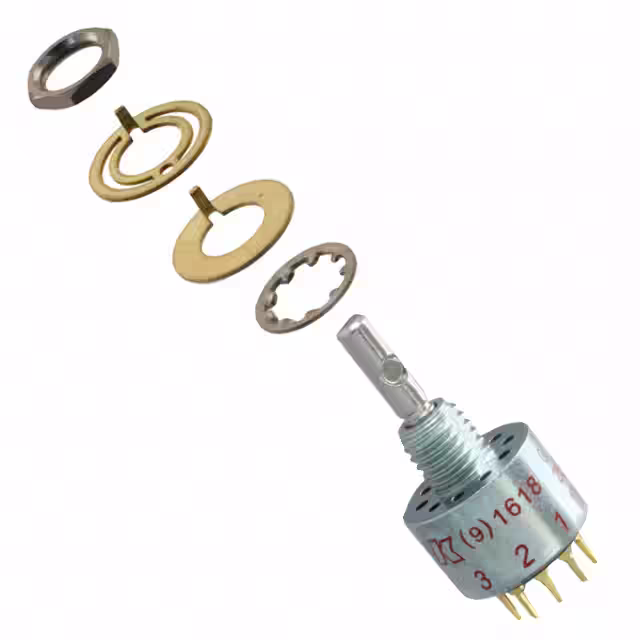

ME00L1NCGDSWITCH ROTARY 10POS 250MA 125V |
2,364 |
|
Datasheet |
M | Tray | Active | 10 | Continuous | 1 | 1 | SP10T | Non-Shorting (BBM) | 250mA (AC/DC) | 125 V | 28 V | Flatted (3.17mm Dia) | 10.16mm | 36° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 11.44mm |
|
|
56S36-01-1-02NSWITCH ROTARY 2POS 200MA 115V |
2,186 |
|
Datasheet |
56 | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 200mA (AC/DC) | 115 V | 30 V | Flatted (3.17mm Dia) | 9.53mm | 36° | Brass | Silver | Panel Mount | Solder Lug | Shaft and Panel Sealed | 12.19mm |
