Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Termination Style | Current Rating (Amps) | Voltage Rating - AC | Number of Decks | Voltage Rating - DC | Actuator Type | Mounting Style | Actuator Length | Features | Contact Finish | Angle of Throw | Contact Material | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
56A30-01-1-02NSWITCH ROTARY 2POS 200MA 115V |
2,748 |
|
Datasheet |
56 | Bulk | Active | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | Solder Lug | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount | 9.53mm | - | Silver | 30° | Brass | 12.19mm |
|
|
56A30-01-1-03NSWITCH ROTARY 3POS 200MA 115V |
2,320 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 1 | SP3T | Non-Shorting (BBM) | Solder Lug | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount | 9.53mm | - | Silver | 30° | Brass | 12.19mm |
|
|
56A30-01-1-04NSWITCH ROTARY 4POS 200MA 115V |
4,356 |
|
Datasheet |
56 | Bulk | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | Solder Lug | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount | 9.53mm | - | Silver | 30° | Brass | 12.19mm |
|
|
56A30-01-1-05NSWITCH ROTARY 5POS 200MA 115V |
3,819 |
|
Datasheet |
56 | Bulk | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | Solder Lug | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount | 9.53mm | - | Silver | 30° | Brass | 12.19mm |
|
|
56A30-01-1-10NSWITCH ROTARY 10POS 200MA 115V |
4,028 |
|
Datasheet |
56 | Bulk | Active | 10 | Fixed | 1 | SP10T | Non-Shorting (BBM) | Solder Lug | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount | 9.53mm | - | Silver | 30° | Brass | 12.19mm |
|
|
56B30-01-1-04NSWITCH ROTARY 4POS 200MA 115V |
3,682 |
|
Datasheet |
56 | Bulk | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | Solder Lug | 200mA (AC/DC) | 115 V | 1 | 30 V | Screwdriver Slot | Panel Mount | 3.18mm | - | Silver | 30° | Brass | 12.19mm |
|
MB04L1NZGDSWITCH ROTARY 4POS 250MA 125V |
4,325 |
|
Datasheet |
M | Tray | Active | 4 | Fixed | 2 | DP4T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount | 10.16mm | - | Gold | 36° | Copper Alloy | 14.86mm |
|

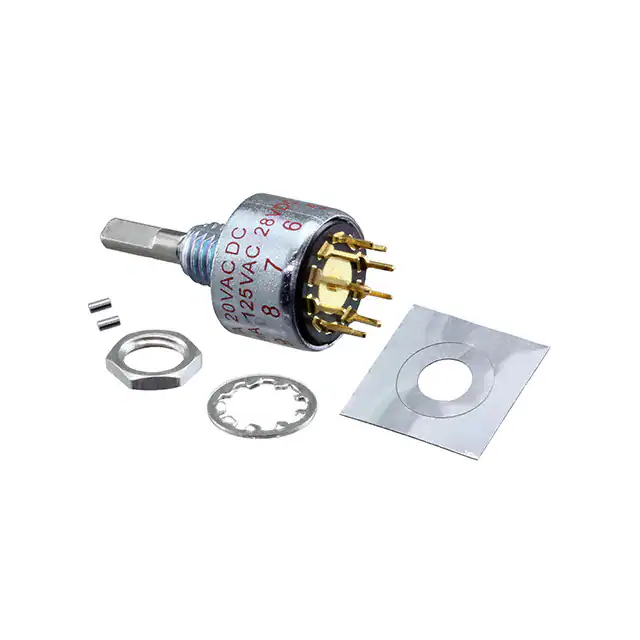

MA00L1NCGFSWITCH ROTARY 10POS 250MA 125V |
2,581 |
|
Datasheet |
M | Tray | Active | 10 | Continuous | 1 | SP10T | Non-Shorting (BBM) | PC Pin | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 10.16mm | IP67 - Dust Tight, Waterproof | Gold | 36° | Copper Alloy | 10.42mm |
|
MB05L1NCQFSWITCH ROTARY 5POS 250MA 125V |
3,929 |
|
Datasheet |
M | Tray | Active | 5 | Fixed | 2 | DP5T | Non-Shorting (BBM) | PC Pin | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 10.16mm | IP67 - Dust Tight, Waterproof | Silver | 36° | Copper Alloy | 10.42mm |
|
|
MA02L1NZGFSWITCH ROTARY 2POS 250MA 125V |
3,902 |
|
Datasheet |
M | Tray | Active | 2 | Fixed | 1 | SPDT | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount | 10.16mm | IP67 - Dust Tight, Waterproof | Gold | 36° | Copper Alloy | 14.86mm |
|
|
MA04L1NZGFSWITCH ROTARY 4POS 250MA 125V |
2,720 |
|
Datasheet |
M | Tray | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount | 10.16mm | IP67 - Dust Tight, Waterproof | Gold | 36° | Copper Alloy | 14.86mm |
|
|
MC12L1NZGFSWITCH ROTARY 12POS 250MA 125V |
2,899 |
|
Datasheet |
M | Tray | Active | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 125 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount | 10.16mm | IP67 - Dust Tight, Waterproof | Gold | 30° | Copper Alloy | 14.86mm |
|
|
56P30-01-1-12N-CSWITCH ROTARY 12POS 200MA 115V |
4,334 |
|
Datasheet |
56 | Bulk | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 30° | Brass | 9.58mm |
|
|
56P36-01-1-04SSWITCH ROTARY 4POS 200MA 115V |
4,972 |
|
Datasheet |
56 | Bulk | Active | 4 | Fixed | 1 | SP4T | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 36° | Brass | 9.58mm |
|
|
MB04L2NZQFSWITCH ROTARY 4POS 250MA 125V |
3,854 |
|
Datasheet |
M | Tray | Active | 4 | Fixed | 2 | DP4T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 125 V | 1 | 28 V | Screwdriver Slot | Panel Mount | Flush | IP67 - Dust Tight, Waterproof | Silver | 36° | Copper Alloy | 14.86mm |
|
|
MRJE34SWITCH ROTARY 4POS 0.4VA 20V |
2,357 |
|
Datasheet |
MRJ | Bulk | Obsolete | 4 | Fixed | 3 | 3P4T | Non-Shorting (BBM) | PC Pin | 0.4VA (AC/DC) | 20 V | 1 | 20 V | Round (3.17mm Dia), Slotted | Panel Mount, Through Hole | 19.00mm | Epoxy Sealed Terminals | Gold | 30° | Nickel | 8.13mm |
|
|
56BP36-01-1-07SSWITCH ROTARY 7POS 200MA 115V |
4,227 |
|
Datasheet |
56 | Bulk | Active | 7 | Fixed | 1 | SP7T | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Screwdriver Slot | Panel Mount, Through Hole | 3.18mm | - | Silver | 36° | Brass | 9.58mm |
|
|
56P36-01-1-02SSWITCH ROTARY 2POS 200MA 115V |
3,058 |
|
Datasheet |
56 | Bulk | Active | 2 | Fixed | 1 | SPDT | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 36° | Brass | 9.58mm |
|
|
56P36-01-1-07SSWITCH ROTARY 7POS 200MA 115V |
3,612 |
|
Datasheet |
56 | Bulk | Active | 7 | Fixed | 1 | SP7T | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 36° | Brass | 9.58mm |
|
|
56P36-01-1-09SSWITCH ROTARY 9POS 200MA 115V |
3,887 |
|
Datasheet |
56 | Bulk | Active | 9 | Fixed | 1 | SP9T | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 36° | Brass | 9.58mm |
