Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Number of Positions | Index Stops | Number of Poles per Deck | Circuit per Deck | Contact Timing | Termination Style | Current Rating (Amps) | Voltage Rating - AC | Number of Decks | Voltage Rating - DC | Actuator Type | Mounting Style | Actuator Length | Features | Contact Finish | Angle of Throw | Contact Material | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
51A30-01-1-08NSWITCH ROTARY 8POS 150MA 115V |
4,802 |
|
- |
51 | Bulk | Active | 8 | Fixed | 1 | SP8T | Non-Shorting (BBM) | Solder Lug | 150mA (AC), 200mA (DC) | 115 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount | 9.53mm | - | Gold | 30° | - | 18.77mm |
|
|
50A90-01-1-04N-FSWITCH ROTARY 4POS 150MA 115V |
3,462 |
|
Datasheet |
50 | Bulk | Active | 4 | Fixed | 1 | SP4T | Non-Shorting (BBM) | Solder Lug | 150mA (AC), 200mA (DC) | 115 V | 1 | 28 V | Flatted (3.17mm Dia) | Panel Mount | 9.53mm | - | Gold | 90° | - | 18.77mm |
|
|
56SD30S-01PAJNSWITCH ROTARY 2-12POS 200MA 115V |
3,904 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 12 | Adjustable | 1 | SP12T | Non-Shorting (BBM) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | Shaft and Panel Sealed | Silver | 30° | Brass | 9.58mm |
|
|
56S30-01-1-05NSWITCH ROTARY 5POS 200MA 115V |
4,135 |
|
Datasheet |
56 | Bulk | Active | 5 | Fixed | 1 | SP5T | Non-Shorting (BBM) | Solder Lug | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount | 9.53mm | Shaft and Panel Sealed | Silver | 30° | Brass | 12.19mm |
|
|
56S30-01-1-06NSWITCH ROTARY 6POS 200MA 115V |
3,963 |
|
Datasheet |
56 | Bulk | Active | 6 | Fixed | 1 | SP6T | Non-Shorting (BBM) | Solder Lug | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount | 9.53mm | Shaft and Panel Sealed | Silver | 30° | Brass | 12.19mm |
|
|
56BDP36-01-2-AJNSWITCH ROTARY 2-5POS 200MA 115V |
2,407 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 5 | Adjustable | 2 | DP5T | Non-Shorting (BBM) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Screwdriver Slot | Panel Mount, Through Hole | 3.18mm | - | Silver | 36° | Brass | 9.58mm |
|
MA00L3NZGDSWITCH ROTARY 10POS 250MA 125V |
4,150 |
|
Datasheet |
M | Tray | Active | 10 | Continuous | 1 | SP10T | Non-Shorting (BBM) | Solder Lug | 250mA (AC/DC) | 125 V | 1 | 28 V | Round (3.17mm Dia) | Panel Mount | 10.16mm | - | Gold | 36° | Copper Alloy | 14.86mm |
|
|
56P36-01-2-02NSWITCH ROTARY 2POS 200MA 115V |
2,526 |
|
Datasheet |
56 | Bulk | Active | 2 | Fixed | 2 | DPDT | Non-Shorting (BBM) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 36° | Brass | 9.58mm |
|
|
56P36-01-2-03NSWITCH ROTARY 3POS 200MA 115V |
4,181 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 36° | Brass | 9.58mm |
|
|
56P36-01-2-05NSWITCH ROTARY 5POS 200MA 115V |
2,325 |
|
Datasheet |
56 | Bulk | Active | 5 | Fixed | 2 | DP5T | Non-Shorting (BBM) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | - | Silver | 36° | Brass | 9.58mm |
|

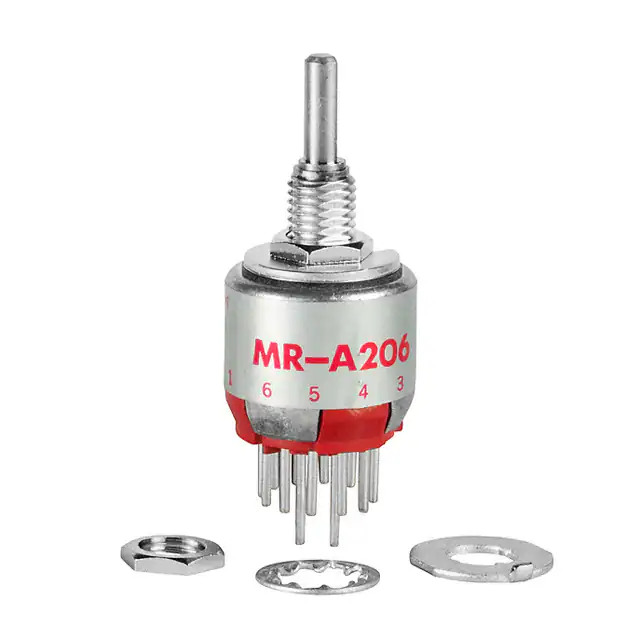

MRA206SWITCH ROTARY 2-6POS 250MA 125V |
3,084 |
|
Datasheet |
MR | Box | Obsolete | 2 ~ 6 | Adjustable | 2 | DP6T | Non-Shorting (BBM) | PC Pin | 250mA (AC) | 125 V | 1 | - | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 10.00mm | Process Sealed | Silver | 30° | Copper | 17.00mm |
|
|
56SP36-01-1-10S-CSWITCH ROTARY 10POS 200MA 115V |
3,444 |
|
Datasheet |
56 | Bulk | Active | 10 | Continuous | 1 | SP10T | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | Shaft and Panel Sealed | Silver | 36° | Brass | 9.58mm |
|
|
56SDP36-01-1-AJSSWITCH ROTARY 2-10POS 200MA 115V |
2,968 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | SP10T | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | Shaft and Panel Sealed | Silver | 36° | Brass | 9.58mm |
|
|
56BSDP36-01-1-AJSSWITCH ROTARY 2-10POS 200MA 115V |
2,509 |
|
Datasheet |
56 | Bulk | Active | 2 ~ 10 | Adjustable | 1 | SP10T | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Screwdriver Slot | Panel Mount, Through Hole | 3.18mm | Shaft and Panel Sealed | Silver | 36° | Brass | 9.58mm |
|
|
56SP36-01-1-10S-FSWITCH ROTARY 10POS 200MA 115V |
4,642 |
|
Datasheet |
56 | Bulk | Active | 10 | Fixed | 1 | SP10T | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | Shaft and Panel Sealed | Silver | 36° | Brass | 9.58mm |
|
|
56SP30-01-1-12N-CSWITCH ROTARY 12POS 200MA 115V |
4,679 |
|
Datasheet |
56 | Bulk | Active | 12 | Continuous | 1 | SP12T | Non-Shorting (BBM) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | Shaft and Panel Sealed | Silver | 30° | Brass | 9.58mm |
|
|
56SP36-01-1-03SSWITCH ROTARY 3POS 200MA 115V |
4,470 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 1 | SP3T | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | Shaft and Panel Sealed | Silver | 36° | Brass | 9.58mm |
|
|
56SP36-01-1-05SSWITCH ROTARY 5POS 200MA 115V |
3,312 |
|
Datasheet |
56 | Bulk | Active | 5 | Fixed | 1 | SP5T | Shorting (MBB) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | Shaft and Panel Sealed | Silver | 36° | Brass | 9.58mm |
|
|
56SP30-01-1-12N-FSWITCH ROTARY 12POS 200MA 115V |
4,152 |
|
Datasheet |
56 | Bulk | Active | 12 | Fixed | 1 | SP12T | Non-Shorting (BBM) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | Shaft and Panel Sealed | Silver | 30° | Brass | 9.58mm |
|
|
56P30S-01-2-03NSWITCH ROTARY 3POS 200MA 115V |
2,820 |
|
Datasheet |
56 | Bulk | Active | 3 | Fixed | 2 | DP3T | Non-Shorting (BBM) | PC Pin | 200mA (AC/DC) | 115 V | 1 | 30 V | Flatted (3.17mm Dia) | Panel Mount, Through Hole | 9.53mm | Shaft and Panel Sealed | Silver | 30° | Brass | 9.58mm |
