Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Release Time | Coil Current | Coil Type | Contact Form | Features | Termination Style | Operate Time | Seal Rating | Operating Temperature | Must Release Voltage | Coil Insulation | Must Operate Voltage | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

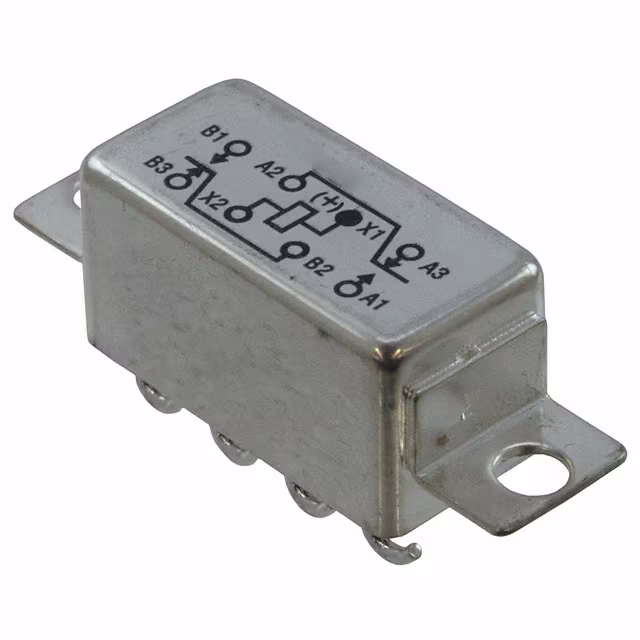

HFW1130K06RELAY GEN PURPOSE DPDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
4,583 |
|
Datasheet |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | 2 A | 28VDC - Nom | - | - | 37.9 mA | Non Latching | DPDT (2 Form C) | - | Solder Hook | - | Sealed - Hermetically | -65°C ~ 125°C | 1.5 VDC | - | 13.5 VDC | - | General Purpose | Military | MIL-R-39016/6 |
|
HFW1231K05MRELAY GEN PURPOSE DPDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
3,587 |
|
Datasheet |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | 2 A | - | - | 4 ms | 37.9 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 4 ms | Sealed - Hermetically | -65°C ~ 125°C | 1.5 VDC | - | 13.5 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
HM1-12BRELAY GEN PURPOSE DPDT 1A 12V TE Connectivity Aerospace, Defense and Marine |
2,188 |
|
- |
HM, CII | Bulk | Active | Through Hole | 12VDC | 1 A | - | - | 3 ms | 30.8 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 4 ms | Sealed - Hermetically | -55°C ~ 85°C | - | - | 8.4 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
6-1617543-0RELAY GENERAL PURPOSE DPDT 1A 6V TE Connectivity Aerospace, Defense and Marine |
4,179 |
|
Datasheet |
MST, CII | Bulk | Active | Through Hole | 6VDC | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 2 ms | 30 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 4 ms | Sealed - Hermetically | -65°C ~ 125°C | 0.28 VDC | - | 3.4 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
|
HFW1201L01MRELAY GENERAL PURPOSE DPDT 2A 5V TE Connectivity Aerospace, Defense and Marine |
3,331 |
|
- |
HFW, CII | Bulk | Active | Through Hole | 5VDC | 2 A | - | - | 4 ms | 185.2 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 4 ms | Sealed - Hermetically | -65°C ~ 125°C | 0.29 VDC | - | 2.7 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
JMSC-5XLRELAY GENERAL PURPOSE DPDT 1A 5V TE Connectivity Aerospace, Defense and Marine |
2,116 |
|
Datasheet |
MS, CII | Bulk | Active | Through Hole | 5VDC | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 2 ms | 50 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 4 ms | Sealed - Hermetically | -65°C ~ 125°C | 0.23 VDC | - | 2.6 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/11 |
|

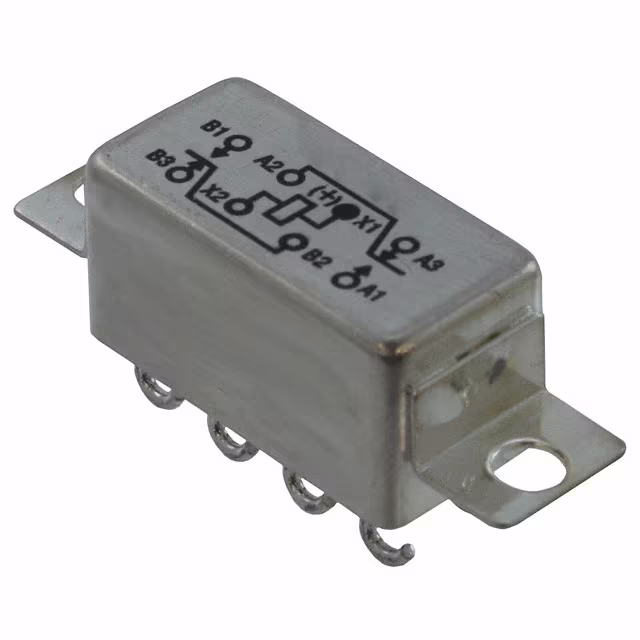

HFW1130K07MRELAY GEN PURPOSE DPDT 2A 26.5V TE Connectivity Aerospace, Defense and Marine |
4,593 |
|
- |
HFW, CII | Bulk | Active | Chassis Mount | 26.5VDC | 2 A | 28VDC - Nom | - | - | 37.9 mA | Non Latching | DPDT (2 Form C) | - | Solder Hook | - | Sealed - Hermetically | -65°C ~ 125°C | 1.5 VDC | - | 13.5 VDC | - | General Purpose | Military | MIL-R-39016/6 |
|
|
SHCD-12RELAY GEN PURPOSE DPDT 1A 12V TE Connectivity Aerospace, Defense and Marine |
2,610 |
|
- |
SHCD, CII | Bulk | Active | Surface Mount | 12VDC | 1 A | - | - | 6 ms | 30 mA | Non Latching | DPDT (2 Form C) | - | Gull Wing | 4 ms | Sealed - Hermetically | -55°C ~ 85°C | - | - | 9 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|

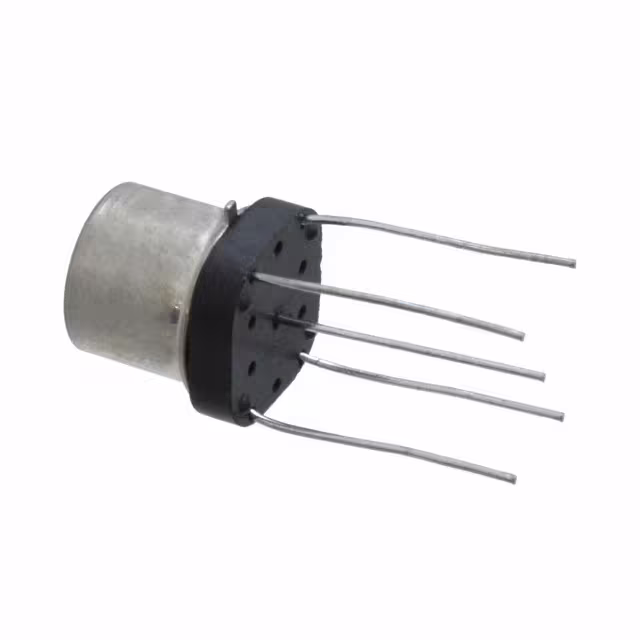

J1MAC-12XLSRELAY GEN PURPOSE SPDT 1A 12V TE Connectivity Aerospace, Defense and Marine |
3,276 |
|
Datasheet |
1MA, CII | Bulk | Active | Through Hole | 12VDC | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 2 ms | 24 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 2 ms | Sealed - Hermetically | -65°C ~ 125°C | 0.63 VDC | - | 7 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/7 |
|
|
JMAC-5XLSRELAY GENERAL PURPOSE DPDT 1A 5V TE Connectivity Aerospace, Defense and Marine |
3,550 |
|
- |
MAC | Bulk | Active | Through Hole | 5VDC | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 1.5 ms | 100 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 2 ms | Sealed - Hermetically | -65°C ~ 125°C | 0.22 VDC | - | 2.7 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
