| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Release Time | Coil Current | Coil Type | Contact Form | Features | Termination Style | Operate Time | Seal Rating | Operating Temperature | Must Release Voltage | Coil Insulation | Must Operate Voltage | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-1617121-7RELAY GENERAL PURPOSE DPDT 1A 5V TE Connectivity Aerospace, Defense and Marine |
2,922 |
|
Datasheet |
MA, CII | Bulk | Active | Through Hole | 5VDC | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 1.5 ms | 100 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 2 ms | Sealed - Hermetically | -65°C ~ 125°C | 0.22 VDC | - | 2.7 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/9 |
|
|

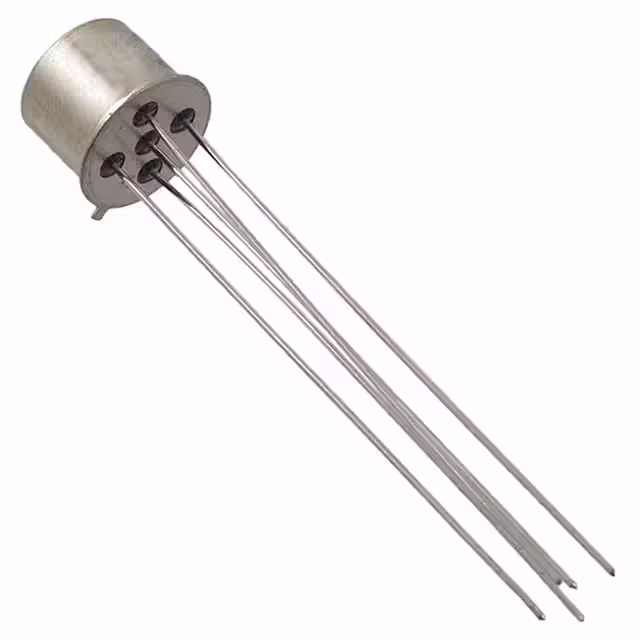

J1MAC-26XMRELAY GEN PURPOSE SPDT 1A 26.5V TE Connectivity Aerospace, Defense and Marine |
4,960 |
|
- |
1MA, CII | Bulk | Active | Through Hole | 26.5VDC | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 2 ms | 13.3 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 2 ms | Sealed - Hermetically | -65°C ~ 125°C | 1.37 VDC | - | 14.2 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/7 |
|
MGSHC-18RELAY GEN PURPOSE DPDT 1A 18V TE Connectivity Aerospace, Defense and Marine |
2,031 |
|
Datasheet |
MGS, CII | Bulk | Active | Through Hole | 18VDC | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 2 ms | 11.3 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 4 ms | - | -65°C ~ 125°C | 0.92 VDC | - | 9.8 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
J1MAP-12XMRELAY GEN PURPOSE SPDT 1A 12V TE Connectivity Aerospace, Defense and Marine |
2,280 |
|
Datasheet |
1MA, CII | Bulk | Active | Through Hole | 12VDC | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 2 ms | 24 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 2 ms | Sealed - Hermetically | -65°C ~ 125°C | 0.63 VDC | - | 7 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
J1MAC-12XLRELAY GEN PURPOSE SPDT 1A 12V TE Connectivity Aerospace, Defense and Marine |
3,308 |
|
- |
1MA, CII | Bulk | Active | Through Hole | 12VDC | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 2 ms | 24 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 2 ms | Sealed - Hermetically | -65°C ~ 125°C | 0.63 VDC | - | 7 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
|
JMGAPD-5LRELAY GENERAL PURPOSE DPDT 1A 5V TE Connectivity Aerospace, Defense and Marine |
4,699 |
|
- |
MGAD, CII | Bulk | Active | Through Hole | 5VDC | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 4 ms | 100 mA | Non Latching | DPDT (2 Form C) | Diode | PC Pin | 2 ms | Sealed - Hermetically | -65°C ~ 125°C | 0.22 VDC | - | 2.7 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/18 |
|
JMGACD-12LRELAY GEN PURPOSE DPDT 1A 12V TE Connectivity Aerospace, Defense and Marine |
2,570 |
|
- |
MGAD, CII | Bulk | Active | Through Hole | 12VDC | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 4 ms | 30.8 mA | Non Latching | DPDT (2 Form C) | Diode | PC Pin | 2 ms | Sealed - Hermetically | -65°C ~ 125°C | 0.63 VDC | - | 7 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/18 |
|
JMGACD-26LRELAY GEN PURPOSE DPDT 1A 26.5V TE Connectivity Aerospace, Defense and Marine |
2,754 |
|
- |
MGAD, CII | Bulk | Active | Through Hole | 26.5VDC | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 4 ms | 17 mA | Non Latching | DPDT (2 Form C) | Diode | PC Pin | 2 ms | Sealed - Hermetically | -65°C ~ 125°C | 1.37 VDC | - | 14.2 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/18 |
|
JMGAC-26MWRELAY GEN PURPOSE DPDT 1A 26.5V TE Connectivity Aerospace, Defense and Marine |
4,060 |
|
- |
MGA, CII | Bulk | Active | Through Hole | 26.5VDC | 1 A | 115VAC, 28VDC - Max | 115VA, 28W | 1.5 ms | 17 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 2 ms | Sealed - Hermetically | -65°C ~ 125°C | 1.37 VDC | - | 14.2 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | Military | MIL-R-39016/17 |
|
HCD-12BRELAY GEN PURPOSE DPDT 1A 12V TE Connectivity Aerospace, Defense and Marine |
4,037 |
|
Datasheet |
HCD, CII | Bulk | Active | Through Hole | 12VDC | 1 A | - | - | 6 ms | 30 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 4 ms | Sealed - Hermetically | -55°C ~ 85°C | - | - | 9 VDC | Silver Palladium (AgPd), Gold (Au) | General Purpose | - | - |
