Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Release Time | Coil Current | Coil Type | Contact Form | Features | Termination Style | Operate Time | Seal Rating | Operating Temperature | Must Release Voltage | Coil Insulation | Must Operate Voltage | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

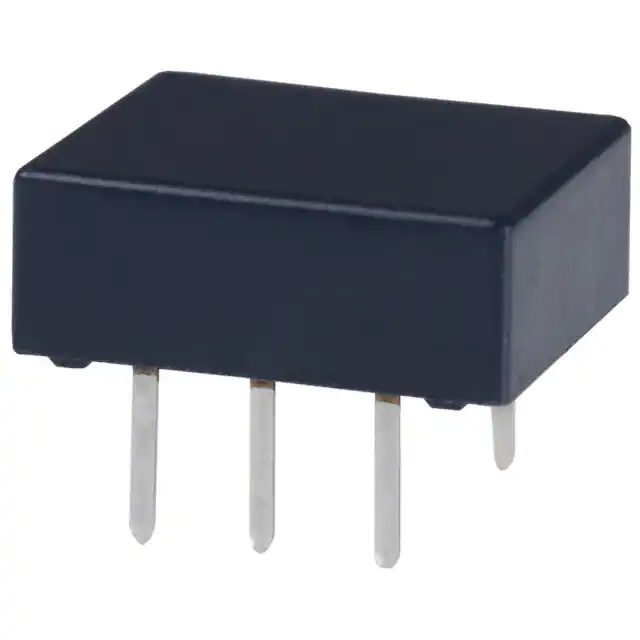

TK1-L-12VRELAY GEN PURPOSE SPDT 2A 12V |
3,259 |
|
Datasheet |
TK | Tube | Obsolete | Through Hole | 12VDC | 2 A | 220VDC - Max | 440VA | 2 ms | 8.3 mA | Latching, Single Coil | SPDT (1 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 85°C | - | - | 9 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TK1-L2-12VRELAY GEN PURPOSE SPDT 2A 12V |
3,978 |
|
Datasheet |
TK | Tube | Obsolete | Through Hole | 12VDC | 2 A | 220VDC - Max | 440VA | 2 ms | 20.8 mA | Latching, Dual Coil | SPDT (1 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 85°C | - | - | 9 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TK1-L2-24VRELAY GEN PURPOSE SPDT 2A 24V |
2,114 |
|
Datasheet |
TK | Tube | Obsolete | Through Hole | 24VDC | 2 A | 220VDC - Max | 440VA | 2 ms | 16.7 mA | Latching, Dual Coil | SPDT (1 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 85°C | - | - | 18 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TK1-L-24VRELAY GEN PURPOSE SPDT 2A 24V |
2,639 |
|
Datasheet |
TK | Tube | Obsolete | Through Hole | 24VDC | 2 A | 220VDC - Max | 440VA | 2 ms | 6.3 mA | Latching, Single Coil | SPDT (1 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 85°C | - | - | 18 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TK1-L2-5VRELAY GENERAL PURPOSE SPDT 2A 5V |
4,852 |
|
Datasheet |
TK | Tube | Obsolete | Through Hole | 5VDC | 2 A | 220VDC - Max | 440VA | 2 ms | 40 mA | Latching, Dual Coil | SPDT (1 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 85°C | - | - | 3.75 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TK1-L-5VRELAY GENERAL PURPOSE SPDT 2A 5V |
2,341 |
|
Datasheet |
TK | Tube | Obsolete | Through Hole | 5VDC | 2 A | 220VDC - Max | 440VA | 2 ms | 20 mA | Latching, Single Coil | SPDT (1 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 85°C | - | - | 3.75 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TN2-4.5VRELAY GEN PURPOSE DPDT 1A 4.5V |
4,150 |
|
Datasheet |
TN | Tube | Obsolete | Through Hole | 4.5VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 31.1 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 3 ms | Sealed - Fully | -40°C ~ 70°C | 0.45 VDC | - | 3.38 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TQ4-4.5VRELAY TELECOM 4PDT 1A 4.5V |
2,727 |
|
Datasheet |
TQ | Tube | Obsolete | Through Hole | 4.5VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 62.2 mA | Non Latching | 4PDT (4 Form C) | - | PC Pin | 3 ms | - | -40°C ~ 70°C | 0.45 VDC | - | 3.38 VDC | Silver (Ag), Gold (Au) | Telecom | - | - |
|
TQ4-L2-24VRELAY TELECOM 4PDT 1A 24V |
2,187 |
|
Datasheet |
TQ | Tube | Obsolete | Through Hole | 24VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 16.7 mA | Latching, Dual Coil | 4PDT (4 Form C) | - | PC Pin | 3 ms | - | -40°C ~ 70°C | - | - | 18 VDC | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
TQ4-L2-4.5VRELAY TELECOM 4PDT 1A 4.5V |
3,753 |
|
Datasheet |
TQ | Tube | Obsolete | Through Hole | 4.5VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 88.9 mA | Latching, Dual Coil | 4PDT (4 Form C) | - | PC Pin | 3 ms | - | -40°C ~ 70°C | - | - | 3.38 VDC | Silver (Ag), Gold (Au) | Telecom | - | - |
|
|
TQ4-L2-5VRELAY TELECOM 4PDT 1A 5V |
4,204 |
|
Datasheet |
TQ | Tube | Obsolete | Through Hole | 5VDC | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 3 ms | 80 mA | Latching, Dual Coil | 4PDT (4 Form C) | - | PC Pin | 3 ms | - | -40°C ~ 70°C | - | - | 3.75 VDC | Silver (Ag), Gold (Au) | Telecom | - | - |
|
DS2E-S-DC5V-RRELAY GENERAL PURPOSE DPDT 2A 5V |
4,761 |
|
Datasheet |
DS | Tube | Obsolete | Through Hole | 5VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 5 ms | 40 mA | Non Latching | DPDT (2 Form C) | Reverse Polarity | PC Pin | 10 ms | Sealed - Fully | -40°C ~ 70°C | 0.5 VDC | - | 3.5 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
ASX20006RELAY TELECOM DPDT 10MA 6V |
3,190 |
|
Datasheet |
ASX | Tube | Obsolete | Through Hole | 6VDC | 10 mA | 10VDC - Max | 100W | 5 ms | 8.3 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 5 ms | - | -40°C ~ 70°C | 0.6 VDC | - | 4.8 VDC | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX21009RELAY TELECOM DPDT 10MA 9V |
2,671 |
|
Datasheet |
ASX | Tube | Obsolete | Through Hole | 9VDC | 10 mA | 10VDC - Max | 100W | 5 ms | 3.9 mA | Latching, Single Coil | DPDT (2 Form C) | - | PC Pin | 5 ms | - | -40°C ~ 70°C | - | - | 7.2 VDC | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX22006RELAY TELECOM DPDT 10MA 6V |
4,785 |
|
Datasheet |
ASX | Tube | Obsolete | Through Hole | 6VDC | 10 mA | 10VDC - Max | 100W | 5 ms | 11.7 mA | Latching, Dual Coil | DPDT (2 Form C) | - | PC Pin | 5 ms | - | -40°C ~ 70°C | - | - | 4.8 VDC | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX22009RELAY TELECOM DPDT 10MA 9V |
4,911 |
|
Datasheet |
ASX | Tube | Obsolete | Through Hole | 9VDC | 10 mA | 10VDC - Max | 100W | 5 ms | 7.8 mA | Latching, Dual Coil | DPDT (2 Form C) | - | PC Pin | 5 ms | - | -40°C ~ 70°C | - | - | 7.2 VDC | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
DS1E-M-DC12V-TBRELAY GEN PURPOSE SPDT 2A 12V |
2,199 |
|
Datasheet |
DS | Tube | Obsolete | Through Hole | 12VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 5 ms | 33.3 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 10 ms | Sealed - Fully | -40°C ~ 70°C | 1.2 VDC | - | 8.4 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-M-DC12V-RRELAY GEN PURPOSE DPDT 2A 12V |
3,266 |
|
Datasheet |
DS | Tube | Obsolete | Through Hole | 12VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 5 ms | 33.3 mA | Non Latching | DPDT (2 Form C) | Reverse Polarity | PC Pin | 10 ms | Sealed - Fully | -40°C ~ 70°C | 1.2 VDC | - | 8.4 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-M-DC12V-TBRELAY GEN PURPOSE DPDT 2A 12V |
4,733 |
|
Datasheet |
DS | Tube | Obsolete | Through Hole | 12VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 5 ms | 33.3 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 10 ms | Sealed - Fully | -40°C ~ 70°C | 1.2 VDC | - | 8.4 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-M-DC1.5VRELAY GEN PURPOSE DPDT 2A 1.5V |
2,865 |
|
Datasheet |
DS | Tube | Obsolete | Through Hole | 1.5VDC | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 5 ms | 267 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 10 ms | Sealed - Fully | -40°C ~ 70°C | 0.15 VDC | - | 1.05 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
