Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Release Time | Coil Current | Coil Type | Contact Form | Features | Termination Style | Operate Time | Seal Rating | Operating Temperature | Must Release Voltage | Coil Insulation | Must Operate Voltage | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
J104D2C12VDC.20SRELAY GEN PURPOSE DPDT 2A 12V CIT Relay and Switch |
9,920 |
|
Datasheet |
J104D | Tube | Active | Through Hole | 12VDC | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 4 ms | 16.7 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 6 ms | Sealed - Fully | -40°C ~ 85°C | 1.2 VDC | - | 9 VDC | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
J104D2C24VDC.20SRELAY GEN PURPOSE DPDT 2A 24V CIT Relay and Switch |
9,904 |
|
Datasheet |
J104D | Tube | Active | Through Hole | 24VDC | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 4 ms | 8.3 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 6 ms | Sealed - Fully | -40°C ~ 85°C | 2.4 VDC | - | 18 VDC | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
J104D2C24VDC.15SRELAY GEN PURPOSE DPDT 2A 24V CIT Relay and Switch |
7,524 |
|
Datasheet |
J104D | Tube | Active | Through Hole | 24VDC | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 4 ms | 6.3 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 6 ms | Sealed - Fully | -40°C ~ 85°C | 2.4 VDC | - | 18 VDC | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
J1031C12VDC.15SRELAY GEN PURPOSE SPDT 2A 12V CIT Relay and Switch |
7,417 |
|
Datasheet |
J103 | Tube | Active | Through Hole | 12VDC | 2 A | 125VAC, 60VDC - Max | 250VA, 120W | 1.5 ms | 12.5 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 4.5 ms | Sealed - Fully | -40°C ~ 85°C | 1.2 VDC | - | 9 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
J104D2C5VDC.20SRELAY GENERAL PURPOSE DPDT 2A 5V CIT Relay and Switch |
10,354 |
|
Datasheet |
J104D | Tube | Active | Through Hole | 5VDC | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 4 ms | 40 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 6 ms | Sealed - Fully | -40°C ~ 85°C | 0.5 VDC | - | 3.75 VDC | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
J1031C3VDC.15SRELAY GENERAL PURPOSE SPDT 2A 3V CIT Relay and Switch |
7,067 |
|
Datasheet |
J103 | Tube | Active | Through Hole | 3VDC | 2 A | 125VAC, 60VDC - Max | 250VA, 120W | 1.5 ms | 50 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 4.5 ms | Sealed - Fully | -40°C ~ 85°C | 0.3 VDC | - | 2.25 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
J1031C24VDC.15SRELAY GEN PURPOSE SPDT 2A 24V CIT Relay and Switch |
3,304 |
|
Datasheet |
J103 | Tube | Active | Through Hole | 24VDC | 2 A | 125VAC, 60VDC - Max | 250VA, 120W | 1.5 ms | 6.3 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 4.5 ms | Sealed - Fully | -40°C ~ 85°C | 2.4 VDC | - | 18 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

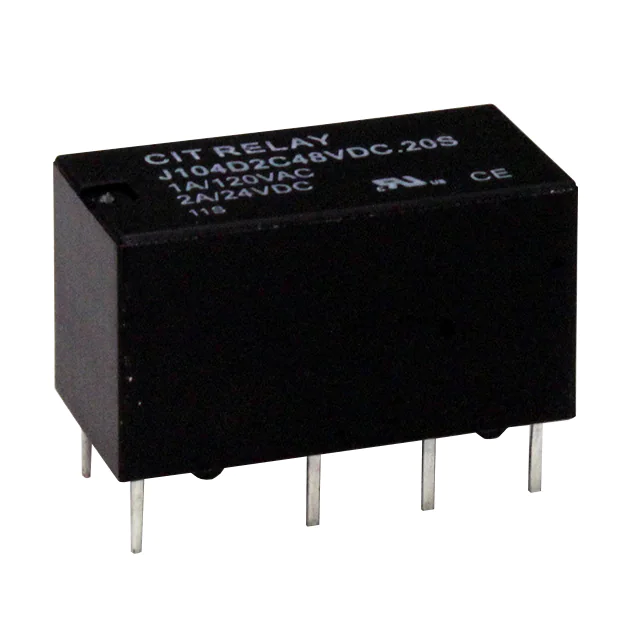

J104D2C48VDC.20SRELAY GEN PURPOSE DPDT 2A 48V CIT Relay and Switch |
3,845 |
|
Datasheet |
J104D | Tube | Active | Through Hole | 48VDC | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 4 ms | 4.2 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 6 ms | Sealed - Fully | -40°C ~ 85°C | 4.8 VDC | - | 36 VDC | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
J104D2C12VDC.36SRELAY GEN PURPOSE DPDT 2A 12V CIT Relay and Switch |
2,246 |
|
Datasheet |
J104D | Tube | Active | Through Hole | 12VDC | 2 A | 250VAC, 100VDC - Max | 500VA, 200W | 4 ms | 30 mA | Non Latching | DPDT (2 Form C) | - | PC Pin | 6 ms | Sealed - Fully | -40°C ~ 85°C | 1.2 VDC | - | 9 VDC | Silver Nickel (AgNi), Gold (Au) | General Purpose | - | - |
|
|
J1031C6VDC.15SRELAY GENERAL PURPOSE SPDT 2A 6V CIT Relay and Switch |
7,362 |
|
Datasheet |
J103 | Tube | Active | Through Hole | 6VDC | 2 A | 125VAC, 60VDC - Max | 250VA, 120W | 1.5 ms | 25 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 4.5 ms | Sealed - Fully | -40°C ~ 85°C | 0.6 VDC | - | 4.5 VDC | Silver (Ag), Gold (Au) | General Purpose | - | - |
