Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Release Time | Coil Current | Coil Type | Contact Form | Features | Termination Style | Operate Time | Seal Rating | Operating Temperature | Must Release Voltage | Coil Insulation | Must Operate Voltage | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

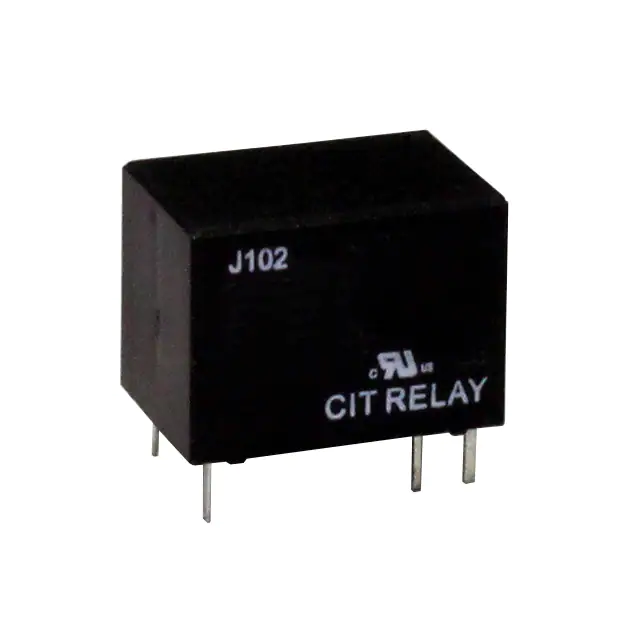

J1021AS112VDC.20RELAY GEN PURPOSE SPST 1A 12V CIT Relay and Switch |
2,865 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 12VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 16.7 mA | Non Latching | SPST-NO (1 Form A) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 1.2 VDC | - | 9 VDC | Silver (Ag) | General Purpose | - | - |
|
|
J1021CS19VDC.45RELAY GENERAL PURPOSE SPDT 1A 9V CIT Relay and Switch |
4,384 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 9VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 50 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 0.9 VDC | - | 6.75 VDC | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS112VDC.45RELAY GEN PURPOSE SPST 1A 12V CIT Relay and Switch |
2,324 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 12VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 37.5 mA | Non Latching | SPST-NO (1 Form A) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 1.2 VDC | - | 9 VDC | Silver (Ag) | General Purpose | - | - |
|
|
J1021CS19VDC.36RELAY GENERAL PURPOSE SPDT 1A 9V CIT Relay and Switch |
2,468 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 9VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 40 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 0.9 VDC | - | 6.75 VDC | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS112VDC.36RELAY GEN PURPOSE SPST 1A 12V CIT Relay and Switch |
3,369 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 12VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 30 mA | Non Latching | SPST-NO (1 Form A) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 1.2 VDC | - | 9 VDC | Silver (Ag) | General Purpose | - | - |
|
|
J1021CS112VDC.20RELAY GEN PURPOSE SPDT 1A 12V CIT Relay and Switch |
4,441 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 12VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 16.7 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 1.2 VDC | - | 9 VDC | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS15VDC.45RELAY GENERAL PURPOSE SPST 1A 5V CIT Relay and Switch |
4,098 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 5VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 89.3 mA | Non Latching | SPST-NO (1 Form A) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 0.5 VDC | - | 3.75 VDC | Silver (Ag) | General Purpose | - | - |
|
|
J1021CS112VDC.45RELAY GEN PURPOSE SPDT 1A 12V CIT Relay and Switch |
2,167 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 12VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 37.5 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 1.2 VDC | - | 9 VDC | Silver (Ag) | General Purpose | - | - |
|
|
J1021CS15VDC.36RELAY GENERAL PURPOSE SPDT 1A 5V CIT Relay and Switch |
2,540 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 5VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 66.7 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 0.5 VDC | - | 3.75 VDC | Silver (Ag) | General Purpose | - | - |
|
|
J1021CS19VDC.20RELAY GENERAL PURPOSE SPDT 1A 9V CIT Relay and Switch |
4,203 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 9VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 22.2 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 0.9 VDC | - | 6.75 VDC | Silver (Ag) | General Purpose | - | - |
