Signal Relays, Up to 2 Amps
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Mounting Style | Coil Voltage | Contact Rating (Current) | Switching Voltage | Load - Max Switching | Release Time | Coil Current | Coil Type | Contact Form | Features | Termination Style | Operate Time | Seal Rating | Operating Temperature | Must Release Voltage | Coil Insulation | Must Operate Voltage | Contact Material | Relay Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

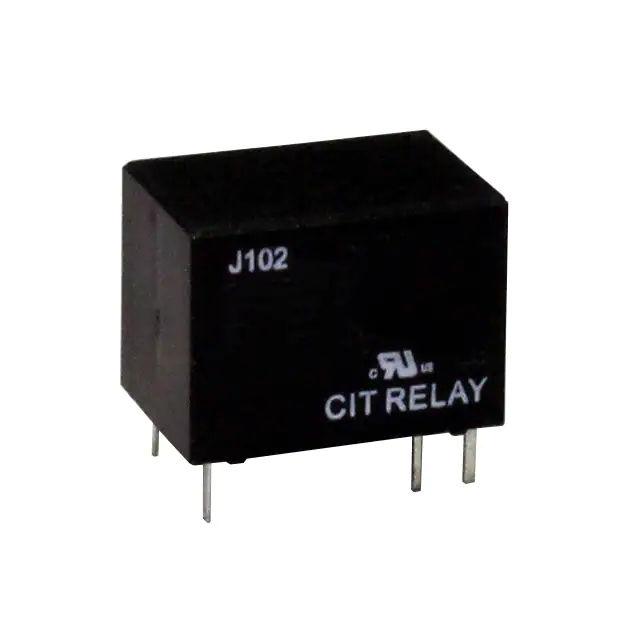

J1021AS15VDC.20RELAY GENERAL PURPOSE SPST 1A 5V CIT Relay and Switch |
2,390 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 5VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 40 mA | Non Latching | SPST-NO (1 Form A) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 0.5 VDC | - | 3.75 VDC | Silver (Ag) | General Purpose | - | - |
|
|
J1021CS15VDC.45RELAY GENERAL PURPOSE SPDT 1A 5V CIT Relay and Switch |
3,344 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 5VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 89.3 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 0.5 VDC | - | 3.75 VDC | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS19VDC.36RELAY GENERAL PURPOSE SPST 1A 9V CIT Relay and Switch |
4,551 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 9VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 40 mA | Non Latching | SPST-NO (1 Form A) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 0.9 VDC | - | 6.75 VDC | Silver (Ag) | General Purpose | - | - |
|
|
J1021CS16VDC.20RELAY GENERAL PURPOSE SPDT 1A 6V CIT Relay and Switch |
4,719 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 6VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 33.3 mA | Non Latching | SPDT (1 Form C) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 0.6 VDC | - | 4.5 VDC | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS19VDC.45RELAY GENERAL PURPOSE SPST 1A 9V CIT Relay and Switch |
4,944 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 9VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 50 mA | Non Latching | SPST-NO (1 Form A) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 0.9 VDC | - | 6.75 VDC | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS15VDC.36RELAY GENERAL PURPOSE SPST 1A 5V CIT Relay and Switch |
2,559 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 5VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 66.7 mA | Non Latching | SPST-NO (1 Form A) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 0.5 VDC | - | 3.75 VDC | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS19VDC.20RELAY GENERAL PURPOSE SPST 1A 9V CIT Relay and Switch |
4,966 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 9VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 22.2 mA | Non Latching | SPST-NO (1 Form A) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 0.9 VDC | - | 6.75 VDC | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS16VDC.20RELAY GENERAL PURPOSE SPST 1A 6V CIT Relay and Switch |
3,153 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 6VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 33.3 mA | Non Latching | SPST-NO (1 Form A) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 0.6 VDC | - | 4.5 VDC | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS16VDC.45RELAY GENERAL PURPOSE SPST 1A 6V CIT Relay and Switch |
4,866 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 6VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 75 mA | Non Latching | SPST-NO (1 Form A) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 0.6 VDC | - | 4.5 VDC | Silver (Ag) | General Purpose | - | - |
|
|
J1021AS16VDC.36RELAY GENERAL PURPOSE SPST 1A 6V CIT Relay and Switch |
3,871 |
|
Datasheet |
J102 | Tube | Active | Through Hole | 6VDC | 1 A | 300VAC, 150VDC - Max | 300VA, 150W | 5 ms | 60 mA | Non Latching | SPST-NO (1 Form A) | - | PC Pin | 5 ms | Sealed - Fully | -40°C ~ 85°C | 0.6 VDC | - | 4.5 VDC | Silver (Ag) | General Purpose | - | - |
