    NKK Switches CWSB21CACF

    Part No.:
    CWSB21CACF
    Manufacturer:
    NKK Switches
    Category:
    Rocker Switches
    Package:
    Datasheet:
    KATY Electronic Technology Co., LTDCWSB21CACF.pdf
    Description:
    SWITCH ROCKER DPST 9A 125V
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    NKK Switches
    Series:
    CWSB
    Packaging:
    Bulk
    Product Status:
    Active
    Mounting Type:
    Panel Mount, Snap-In
    Circuit:
    DPST
    Switch Function:
    On-Off
    Current Rating (Amps):
    9A (AC)
    Voltage Rating - AC:
    125 V
    Voltage Rating - DC:
    -
    Actuator Type:
    Concave (Curved) - Illuminated
    Color - Actuator/Cap:
    Red
    Actuator Marking:
    No Marking
    Illumination Type, Color:
    Neon, Red
    Illumination Voltage (Nominal):
    125 VAC
    Termination Style:
    Quick Connect - 0.187" (4.7mm)
    Ingress Protection:
    -
    Features:
    Audible Click
    Panel Cutout Dimensions:
    Rectangular - 19.20mm x 12.90mm
    Operating Temperature:
    -20°C ~ 85°C
    Approval Agency:
    cULus

    1. How to order CWSB21CACF on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that CWSB21CACF is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the CWSB21CACF. All suppliers must pass our qualification reviews before they can publish their products including CWSB21CACF on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of CWSB21CACF products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the CWSB21CACF price and inventory displayed accurate?

    The price and inventory of CWSB21CACF fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of CWSB21CACF?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the CWSB21CACF we delivered, we will accept the replacement or return of the CWSB21CACF only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of CWSB21CACF.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as CWSB21CACF pin diagram, CWSB21CACF datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

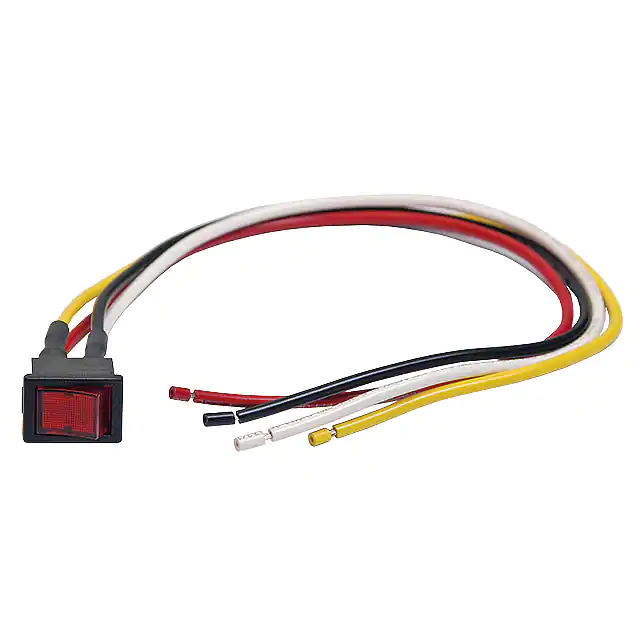

    Image CWSB21CACF CWSB21CACF-WL
    Part Number CWSB21CACF CWSB21CACF-WL
    Manufacturer NKK Switches NKK Switches
    Series CWSB CWSB
    Packaging Bulk Bulk
    Product Status Active Active
    Mounting Type Panel Mount, Snap-In Panel Mount, Snap-In
    Circuit DPST DPST
    Switch Function On-Off On-Off
    Current Rating (Amps) 9A (AC) 9A (AC)
    Voltage Rating - AC 125 V 125 V
    Voltage Rating - DC - -
    Actuator Type Concave (Curved) - Illuminated Concave (Curved) - Illuminated
    Color - Actuator/Cap Red Red
    Actuator Marking No Marking No Marking
    Illumination Type, Color Neon, Red Neon, Red
    Illumination Voltage (Nominal) 125 VAC 125 VAC
    Termination Style Quick Connect - 0.187" (4.7mm) Wire Leads
    Ingress Protection - -
    Features Audible Click Audible Click
    Panel Cutout Dimensions Rectangular - 19.20mm x 12.90mm Rectangular - 19.20mm x 12.90mm
    Operating Temperature -20°C ~ 85°C -20°C ~ 85°C
    Approval Agency cULus cULus
