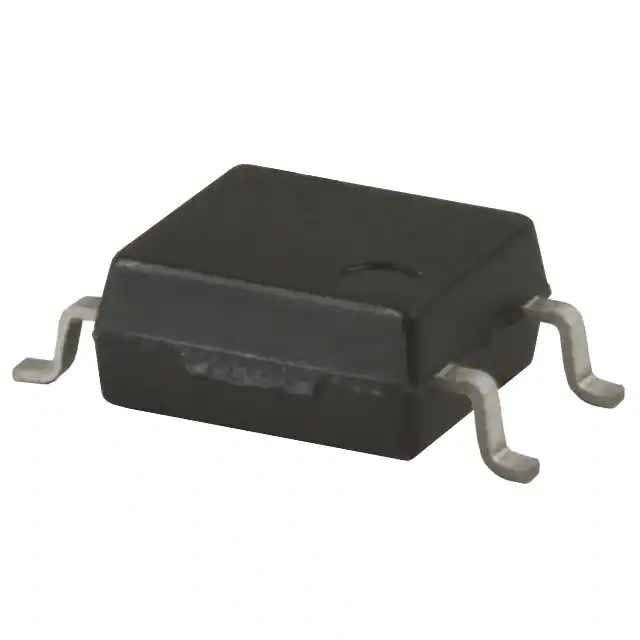

    Panasonic Electric Works APV2121S

    Part No.:
    APV2121S
    Manufacturer:
    Panasonic Electric Works
    Category:
    Transistor, Photovoltaic Output Optoisolators
    Package:
    4-SMD, Gull Wing
    Datasheet:
    KATY Electronic Technology Co., LTDAPV2121S.pdf
    Description:
    OPTOISOLATOR 2.5KV PHVOLT 4SMD
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    Panasonic Electric Works
    Series:
    -
    Package/Case:
    4-SMD, Gull Wing
    Packaging:
    Tube
    Product Status:
    Active
    Number of Channels:
    1
    Voltage - Isolation:
    2500Vrms
    Current Transfer Ratio (Min):
    -
    Current Transfer Ratio (Max):
    -
    Turn On / Turn Off Time (Typ):
    800µs, 100µs
    Rise / Fall Time (Typ):
    -
    Input Type:
    DC
    Output Type:
    Photovoltaic
    Voltage - Output (Max):
    8.2V
    Current - Output / Channel:
    8µA
    Voltage - Forward (Vf) (Typ):
    1.15V
    Current - DC Forward (If) (Max):
    50 mA
    Vce Saturation (Max):
    -
    Grade:
    -
    Qualification:
    -
    Operating Temperature:
    -40°C ~ 85°C
    Mounting Type:
    Surface Mount
    Supplier Device Package:
    4-SOP
