    TE Connectivity Laird FHQ69273CE-518QMAM

    Part No.:
    FHQ69273CE-518QMAM
    Manufacturer:
    TE Connectivity Laird
    Category:
    RF Antennas
    Package:
    Description:
    FIN ANTENNA,H-PROFILE 698-2700 U
    Quantity:
    Payment:
    Payment
    Shipping:
    Shipping

    Product details

    • Specifications
    • FAQ
    • Comparison
    • Tags
    Product attributes
    Attribute value
    Manufacturer:
    TE Connectivity Laird
    Series:
    -
    Packaging:
    Bulk
    Product Status:
    Active
    RF Family/Standard:
    Cellular, Navigation, WiFi
    Frequency Group:
    Wide Band
    Frequency (Center/Band):
    475MHz, 829MHz, 1.575GHz, 2.205GHz, 2.45GHz, 5.387GHz
    Frequency Range:
    430MHz ~ 520MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz
    Antenna Type:
    Module
    Number of Bands:
    6
    VSWR:
    2
    Return Loss:
    -
    Gain:
    2.1dBi, 3.5dBi, 27dBi, 5.4dBi, 6.5dBi, 6.5dBi
    Power - Max:
    50 W
    Features:
    Cable - 5.18m
    Termination:
    QMA Male (4)
    Ingress Protection:
    IP67
    Grade:
    -
    Qualification:
    -
    Mounting Type:
    Panel Mount
    Height (Max):
    3.900" (99.06mm)
    Applications:
    4G, GPS, LTE, Wi-Fi, WLAN

    1. How to order FHQ69273CE-518QMAM on KATY Electronic Technology Co., LTD?

    Currently, KATY Electronic Technology Co., LTD only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

    2. How does KATY Electronic Technology Co., LTD guarantee that FHQ69273CE-518QMAM is from the original manufacturer or authorized agents?

    We have a professional and experienced quality control team to strictly verify and test the FHQ69273CE-518QMAM. All suppliers must pass our qualification reviews before they can publish their products including FHQ69273CE-518QMAM on KATY Electronic Technology Co., LTD; we pay more attention to the channels and quality of FHQ69273CE-518QMAM products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

    3. Are the FHQ69273CE-518QMAM price and inventory displayed accurate?

    The price and inventory of FHQ69273CE-518QMAM fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

    4. What forms of payment are accepted?

    Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

    Warm Tips: Some orders in certain payment forms may require handling fee.

    5. How is the shipping arranged?

    Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

    Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

    Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

    6. What is the process for return or replacement of FHQ69273CE-518QMAM?

    All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the FHQ69273CE-518QMAM we delivered, we will accept the replacement or return of the FHQ69273CE-518QMAM only when all of the below conditions are fulfilled:

    (1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

    (2)We are informed of the defect described above within 90 days after the delivery of FHQ69273CE-518QMAM.

    (3)The PartNo is unused and only in the original unpacked packaging.

    Two processes to return the products:

    (1)Inform us within 90 days

    (2)Obtain Requesting Return Authorizations

    7.How to contact us to get technical supports, such as FHQ69273CE-518QMAM pin diagram, FHQ69273CE-518QMAM datasheet?

    If you need any after-sales service, please do not hesitate to contact us.

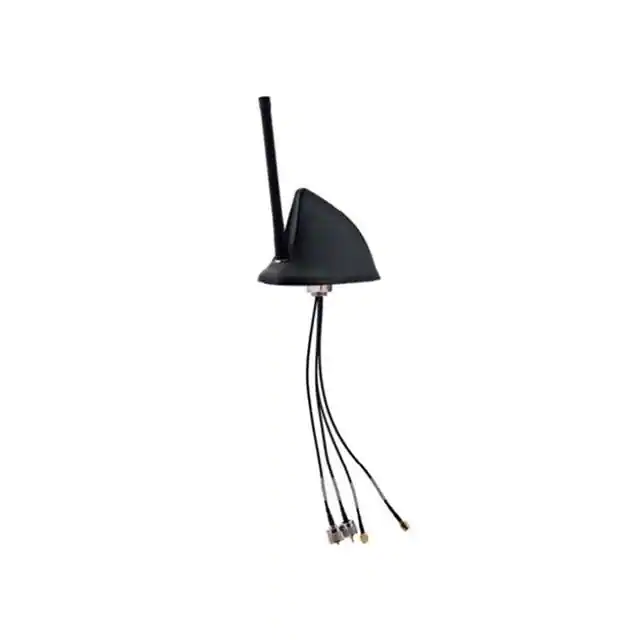

    Image FHQ69273CE-518VC5 FHQ69273CE-518VC3 FHQ69273CE-518VC6 FHQ69273CE-518VC4 FHQ69273CE-518QMAM
    Part Number FHQ69273CE-518VC5 FHQ69273CE-518VC3 FHQ69273CE-518VC6 FHQ69273CE-518VC4 FHQ69273CE-518QMAM
    Manufacturer TE Connectivity Laird TE Connectivity Laird TE Connectivity Laird TE Connectivity Laird TE Connectivity Laird
    Series - - - - -
    Packaging Bulk Bulk Bulk Bulk Bulk
    Product Status Obsolete Obsolete Obsolete Obsolete Active
    RF Family/Standard Cellular, Navigation, WiFi Cellular, Navigation, WiFi Cellular, Navigation, WiFi Cellular, Navigation, WiFi Cellular, Navigation, WiFi
    Frequency Group Wide Band Wide Band Wide Band Wide Band Wide Band
    Frequency (Center/Band) 475MHz, 829MHz, 2.2GHz, 5.4GHz 475MHz, 829MHz, 2.2GHz, 5.4GHz 475MHz, 829MHz, 2.2GHz, 5.4GHz 475MHz, 829MHz, 2.2GHz, 5.4GHz 475MHz, 829MHz, 1.575GHz, 2.205GHz, 2.45GHz, 5.387GHz
    Frequency Range 430MHz ~ 520MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 5.875GHz 430MHz ~ 520MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 5.875GHz 430MHz ~ 520MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 5.875GHz 430MHz ~ 520MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 4.9GHz ~ 5.875GHz 430MHz ~ 520MHz, 698MHz ~ 960MHz, 1.71GHz ~ 2.7GHz, 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.875GHz
    Antenna Type Module Module Module Module Module
    Number of Bands 4 4 4 4 6
    VSWR 2 2 2 2 2
    Return Loss - - - - -
    Gain 8.2dB 8.2dB 8.2dB 8.2dB 2.1dBi, 3.5dBi, 27dBi, 5.4dBi, 6.5dBi, 6.5dBi
    Power - Max 10 W 10 W 10 W 10 W 50 W
    Features - - - - Cable - 5.18m
    Termination RP-SMA Male, SMA Male SMA Male FME Male, RP-SMA Male, SMA Male FME Male, SMA Male QMA Male (4)
    Ingress Protection IP67 IP67 IP67 IP67 IP67
    Grade - - - - -
    Qualification - - - - -
    Mounting Type Panel Mount Panel Mount Panel Mount Panel Mount Panel Mount
    Height (Max) 6.299" (160.00mm) 6.299" (160.00mm) 6.299" (160.00mm) 6.299" (160.00mm) 3.900" (99.06mm)
    Applications GPS, LTE, WLAN GPS, LTE, WLAN GPS, LTE, WLAN GPS, LTE, WLAN 4G, GPS, LTE, Wi-Fi, WLAN
