Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPM1K390MPD6TDCAP ALUM 39UF 20% 80V RADIAL TH Nichicon |
3,040 |
|
![]() Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 39 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 215 mA @ 120 Hz | 380 mA @ 10 kHz | 490 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole | |
|

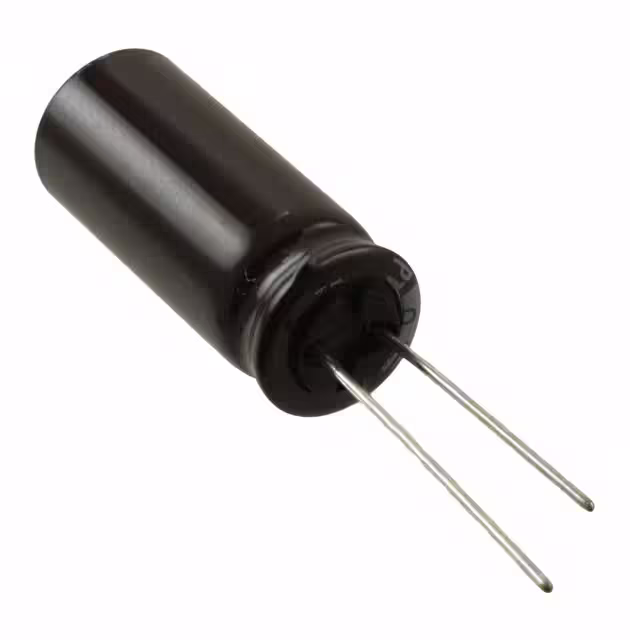

UPT2G330MHDCAP ALUM 33UF 20% 400V RADIAL TH Nichicon |
2,043 |
|
![]() Datasheet |
UPT | Bulk | Active | 33 µF | ±20% | 400 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 290 mA @ 120 Hz | 464 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.299" (33.00mm) | - | Through Hole | |
![]() |
UWT0G152MNL1GSCAP ALUM 1500UF 20% 4V SMD Nichicon |
4,519 |
|
![]() Datasheet |
UWT | Tape & Reel (TR) | Active | 1500 µF | ±20% | 4 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 310 mA @ 120 Hz | 465 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UCY2E820MHD9CAP ALUM 82UF 20% 250V RADIAL TH Nichicon |
2,463 |
|
![]() Datasheet |
UCY | Bulk | Active | 82 µF | ±20% | 250 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 615 mA @ 120 Hz | 1.23 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UPJ1A821MHD6CAP ALUM 820UF 20% 10V RADIAL TH Nichicon |
17 |
|
![]() Datasheet |
UPJ | Bulk | Not For New Designs | 820 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 920 mA @ 10 kHz | 130 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UWZ0J152MCL1GSCAP ALUM 1500UF 20% 6.3V SMD Nichicon |
2 |
|
![]() Datasheet |
UWZ | Tape & Reel (TR) | Active | 1500 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | High Temperature Reflow | 310 mA @ 120 Hz | 465 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
|
UUL1A330MCL1GSCAP ALUM 33UF 20% 10V SMD Nichicon |
2,761 |
|
![]() Datasheet |
UUL | Tape & Reel (TR) | Active | 33 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 35 mA @ 120 Hz | 52.5 mA @ 10 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount | |
|
UWH1H100MCL1GSCAP ALUM 10UF 20% 50V SMD Nichicon |
4,418 |
|
![]() Datasheet |
UWH | Tape & Reel (TR) | Active | 10 µF | ±20% | 50 V | - | 1000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 24 mA @ 120 Hz | 36 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.244" (6.20mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UWP1A470MCL1GBCAP ALUM 47UF 20% 10V SMD Nichicon |
2,805 |
|
![]() Datasheet |
UWP | Tape & Reel (TR) | Active | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 61 mA @ 120 Hz | 91.5 mA @ 10 kHz | - | - | 0.315" Dia (8.00mm) | 0.217" (5.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
![]() |
UHW1K391MHDCAP ALUM 390UF 20% 80V RADIAL TH Nichicon |
4,435 |
|
![]() Datasheet |
UHW | Bulk | Active | 390 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.105 A @ 120 Hz | 2.21 A @ 100 kHz | 49 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole |
