Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPJ1K680MHD6TOCAP ALUM 68UF 20% 80V RADIAL TH Nichicon |
25 |
|
![]() Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 68 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 249 mA @ 120 Hz | 402 mA @ 10 kHz | 310 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | - | Through Hole | |
![]() |
ULD2G5R6MPD1TDCAP ALUM 5.6UF 20% 400V RADIAL Nichicon |
8 |
|
![]() Datasheet |
ULD | Cut Tape (CT) | Not For New Designs | 5.6 µF | ±20% | 400 V | - | 15000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 64 mA @ 120 Hz | 128 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole | |
![]() |
UPZ2D181MHDCAP ALUM 180UF 20% 200V RADIAL Nichicon |
4,631 |
|
![]() Datasheet |
UPZ | Bulk | Active | 180 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | - | - | General Purpose | 700 mA @ 120 Hz | 980 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.476" (37.50mm) | - | Through Hole | |
|
UCW1C331MNL1GSCAP ALUM 330UF 20% 16V SMD Nichicon |
2,411 |
|
![]() Datasheet |
UCW | Tape & Reel (TR) | Active | 330 µF | ±20% | 16 V | - | 7000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 300 mA @ 120 Hz | 600 mA @ 100 kHz | 220 mOhms | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPM1J561MHDCAP ALUM 560UF 20% 63V RADIAL TH Nichicon |
4,592 |
|
![]() Datasheet |
UPM | Bulk | Not For New Designs | 560 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.59 A @ 120 Hz | 1.95 A @ 10 kHz | 35 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.654" (42.00mm) | - | Through Hole | |
|
UZG1HR33MCL1GBCAP ALUM 0.33UF 20% 50V SMD Nichicon |
2,461 |
|
![]() Datasheet |
UZG | Tape & Reel (TR) | Not For New Designs | 0.33 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | - | General Purpose | 2.8 mA @ 120 Hz | 4.2 mA @ 10 kHz | - | - | 0.157" Dia (4.00mm) | 0.156" (3.95mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount | |
![]() |
UKL1J101MPD1TDCAP ALUM 100UF 20% 63V RADIAL TH Nichicon |
5 |
|
![]() Datasheet |
UKL | Cut Tape (CT) | Not For New Designs | 100 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 330 mA @ 120 Hz | - | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
![]() |
UCZ1A331MCL6GSCAP ALUM 330UF 20% 10V SMD Nichicon |
2,530 |
|
![]() Datasheet |
UCZ | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | 200mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 135 mA @ 120 Hz | 270 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UVK0J332MPD1TDCAP ALUM 3300UF 20% 6.3V RADIAL Nichicon |
3,270 |
|
![]() Datasheet |
UVK | Cut Tape (CT) | Active | 3300 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.19 A @ 120 Hz | 1.3685 A @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
![]() |

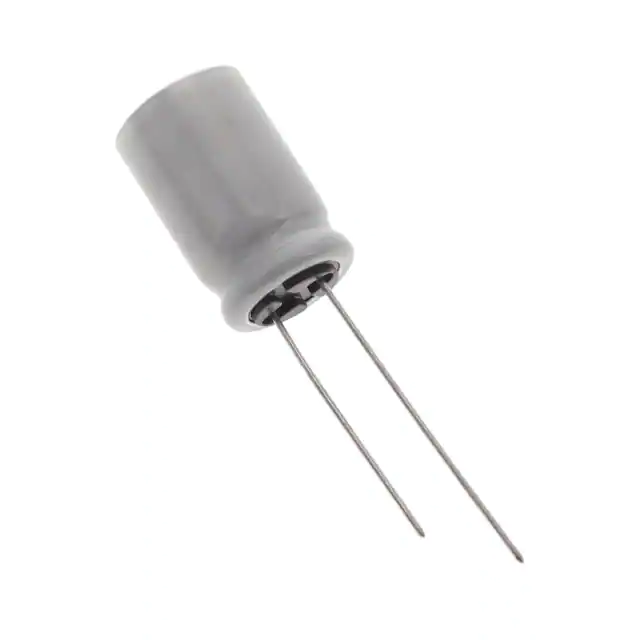

UBY1K271MHLCAP ALUM 270UF 20% 80V RADIAL TH Nichicon |
9 |
|
![]() Datasheet |
UBY | Bulk | Active | 270 µF | ±20% | 80 V | 74mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 820 mA @ 120 Hz | 1.64 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.846" (21.50mm) | - | Through Hole |
