Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

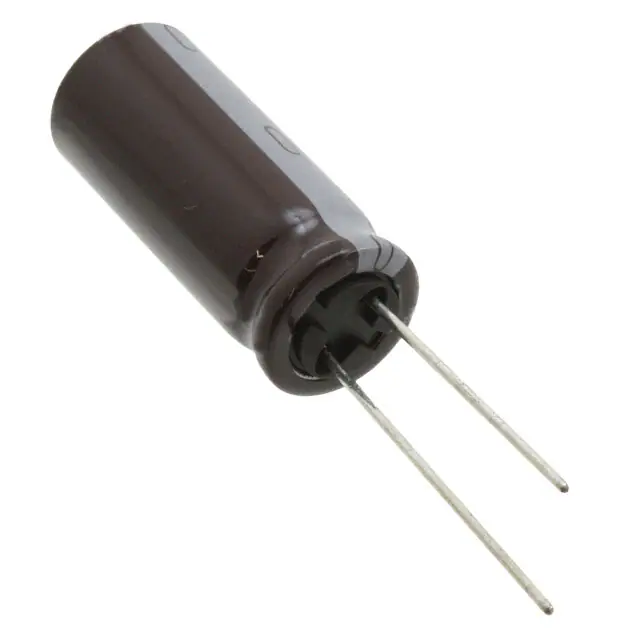

UCY2V560MHDCAP ALUM 56UF 20% 350V RADIAL TH Nichicon |
4,338 |
|
![]() Datasheet |
UCY | Bulk | Active | 56 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 590 mA @ 120 Hz | 1.18 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.299" (33.00mm) | - | Through Hole | |
|
UPJ0J272MHD6TNCAP ALUM 2700UF 20% 6.3V RADIAL Nichicon |
20 |
|
![]() Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 2700 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.35 A @ 120 Hz | 1.5 A @ 10 kHz | 72 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | - | Through Hole | |
![]() |
URS2E330MHD6TNCAP ALUM 33UF 20% 250V RADIAL TH Nichicon |
4 |
|
![]() Datasheet |
URS | Cut Tape (CT) | Active | 33 µF | ±20% | 250 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 350 mA @ 120 Hz | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UZG1A470MCL1GBCAP ALUM 47UF 20% 10V SMD Nichicon |
3,898 |
|
![]() Datasheet |
UZG | Tape & Reel (TR) | Active | 47 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | AEC-Q200 | General Purpose | 40 mA @ 120 Hz | 60 mA @ 10 kHz | - | - | 0.248" Dia (6.30mm) | 0.156" (3.95mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount | |
|
UPJ2F4R7MPD1TDCAP ALUM 4.7UF 20% 315V RADIAL Nichicon |
4,476 |
|
![]() Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 4.7 µF | ±20% | 315 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 104 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
![]() |
UBT2D220MPD8TDCAP ALUM 22UF 20% 200V RADIAL TH Nichicon |
17 |
|
![]() Datasheet |
UBT | Cut Tape (CT) | Active | 22 µF | ±20% | 200 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 126 mA @ 120 Hz | 226.8 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UVK2C330MPD1TDCAP ALUM 33UF 20% 160V RADIAL TH Nichicon |
2,685 |
|
![]() Datasheet |
UVK | Cut Tape (CT) | Active | 33 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 288 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|

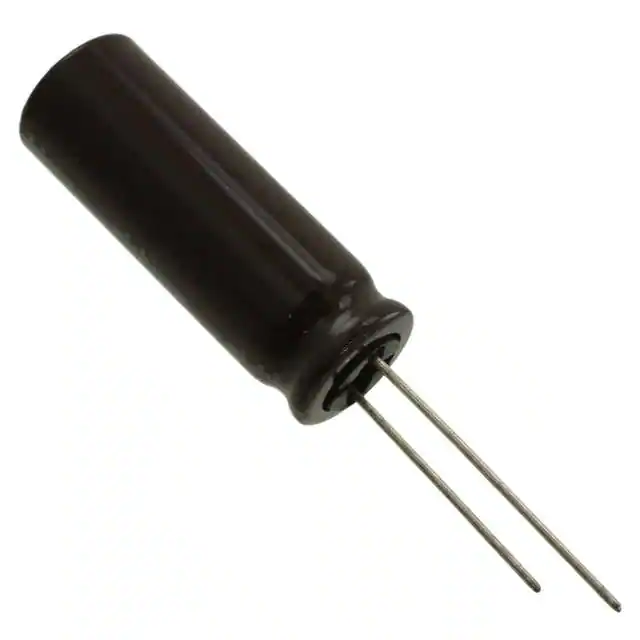

UPA1V182MHDCAP ALUM 1800UF 20% 35V RADIAL Nichicon |
3,944 |
|
![]() Datasheet |
UPA | Bulk | Active | 1800 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.499 A @ 120 Hz | 2.94 A @ 100 kHz | 16 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.476" (37.50mm) | - | Through Hole | |
|
UCYW6120MPD1TDCAP ALUM 12UF 20% 420V RADIAL TH Nichicon |
23 |
|
![]() Datasheet |
UCY | Cut Tape (CT) | Active | 12 µF | ±20% | 420 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 150 mA @ 120 Hz | 300 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
![]() |
UBW1K330MPD1TDCAP ALUM 33UF 20% 80V RADIAL TH Nichicon |
18 |
|
![]() Datasheet |
UBW | Cut Tape (CT) | Active | 33 µF | ±20% | 80 V | - | 2000 Hrs @ 135°C | -55°C ~ 135°C | Polar | - | Automotive | 240 mA @ 120 Hz | 480 mA @ 100 kHz | 800 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | - | Through Hole |
