Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPJ1K181MHD1TOCAP ALUM 180UF 20% 80V RADIAL TH Nichicon |
3,461 |
|
![]() Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 180 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 520 mA @ 120 Hz | 734 mA @ 10 kHz | 130 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
![]() |

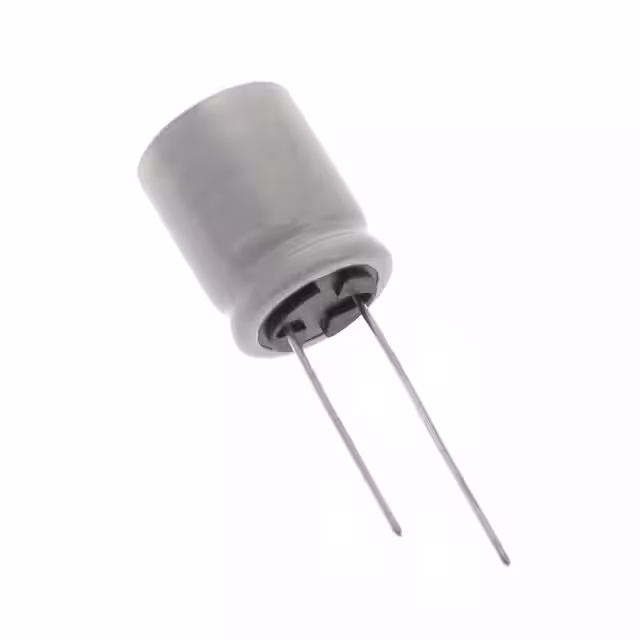

UBY1J751MHL6CAP ALUM 750UF 20% 63V RADIAL TH Nichicon |
2,266 |
|
![]() Datasheet |
UBY | Bulk | Active | 750 µF | ±20% | 63 V | 53mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.284 A @ 120 Hz | 2.14 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UPW1E152MHD1TNCAP ALUM 1500UF 20% 25V RADIAL Nichicon |
1 |
|
![]() Datasheet |
UPW | Cut Tape (CT) | Not For New Designs | 1500 µF | ±20% | 25 V | - | 8000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.172 A @ 120 Hz | 2.555 A @ 10 kHz | 22 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
![]() |
UKL0J152MHDCAP ALUM 1500UF 20% 6.3V RADIAL Nichicon |
4,952 |
|
![]() Datasheet |
UKL | Bulk | Not For New Designs | 1500 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 910 mA @ 120 Hz | 1.0465 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
![]() |

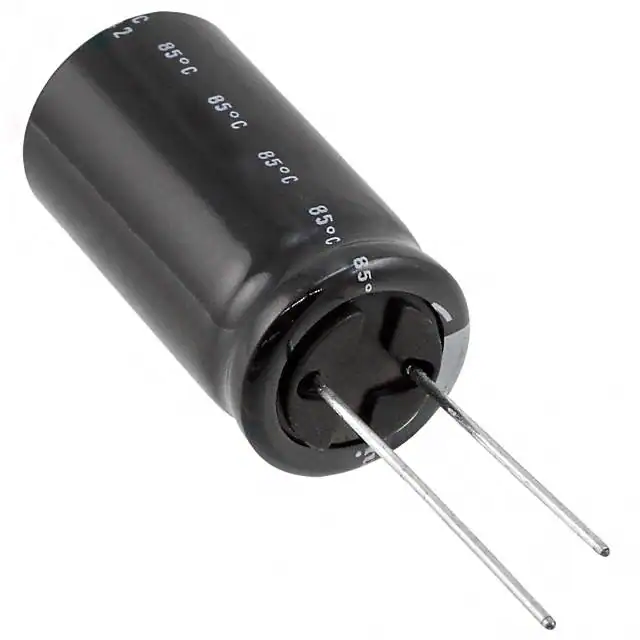

UVK0J153MHDCAP ALUM 15000UF 20% 6.3V RADIAL Nichicon |
3,956 |
|
![]() Datasheet |
UVK | Bulk | Active | 15000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.55 A @ 120 Hz | 2.9325 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
![]() |
UVK1A103MHDCAP ALUM 10000UF 20% 10V RADIAL Nichicon |
2,924 |
|
![]() Datasheet |
UVK | Bulk | Active | 10000 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.55 A @ 120 Hz | 2.9325 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
UPJ2A471MHDCAP ALUM 470UF 20% 100V RADIAL Nichicon |
3,756 |
|
![]() Datasheet |
UPJ | Bulk | Not For New Designs | 470 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.53 A @ 120 Hz | 1.92 A @ 10 kHz | 47 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.634" (41.50mm) | - | Through Hole | |
|
UEP1A471MPDCAP ALUM 470UF 20% 10V RADIAL TH Nichicon |
1 |
|
![]() Datasheet |
UEP | Bulk | Not For New Designs | 470 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 290 mA @ 120 Hz | 435 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.689" (17.50mm) | - | Through Hole | |
|
UEP0J472MHDCAP ALUM 4700UF 20% 6.3V RADIAL Nichicon |
3,750 |
|
![]() Datasheet |
UEP | Bulk | Not For New Designs | 4700 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 1.43 A @ 120 Hz | 1.6445 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
UPJ2A820MPDCAP ALUM 82UF 20% 100V RADIAL TH Nichicon |
6 |
|
![]() Datasheet |
UPJ | Bulk | Not For New Designs | 82 µF | ±20% | 100 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 386 mA @ 120 Hz | 606 mA @ 10 kHz | 180 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.299" (33.00mm) | - | Through Hole |
