Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPM1E681MPDCAP ALUM 680UF 20% 25V RADIAL TH Nichicon |
2,321 |
|
![]() Datasheet |
UPM | Bulk | Not For New Designs | 680 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.18 A @ 120 Hz | 1.42 A @ 10 kHz | 46 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.319" (33.50mm) | - | Through Hole | |
|
UBY2A271MHLCAP ALUM 270UF 20% 100V RADIAL Nichicon |
4,358 |
|
![]() Datasheet |
UBY | Bulk | Active | 270 µF | ±20% | 100 V | 53mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.07 A @ 120 Hz | 2.14 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|

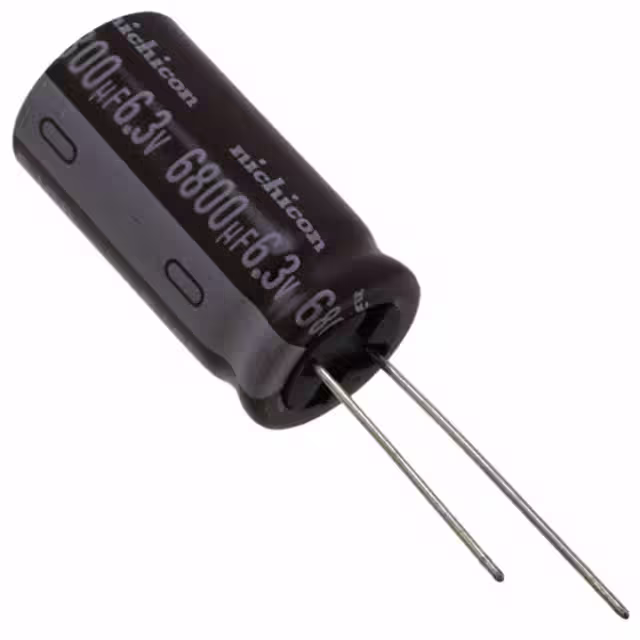

UPJ0J682MHDCAP ALUM 6800UF 20% 6.3V RADIAL Nichicon |
2 |
|
![]() Datasheet |
UPJ | Bulk | Not For New Designs | 6800 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.13 A @ 120 Hz | 2.37 A @ 10 kHz | 29 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
![]() |
UHD0J392MHDCAP ALUM 3900UF 20% 6.3V RADIAL Nichicon |
4,792 |
|
![]() Datasheet |
UHD | Bulk | Not For New Designs | 3900 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.216 A @ 120 Hz | 2.77 A @ 100 kHz | 18 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UCY2G120MPD1TDCAP ALUM 12UF 20% 400V RADIAL TH Nichicon |
4,588 |
|
![]() Datasheet |
UCY | Cut Tape (CT) | Active | 12 µF | ±20% | 400 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 175 mA @ 120 Hz | 350 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UPJ1K181MHD6TNCAP ALUM 180UF 20% 80V RADIAL TH Nichicon |
1 |
|
![]() Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 180 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 543 mA @ 120 Hz | 766 mA @ 10 kHz | 150 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UKT1A222MHDCAP ALUM 2200UF 20% 10V RADIAL Nichicon |
2,043 |
|
![]() Datasheet |
UKT | Bulk | Not For New Designs | 2200 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 810 mA @ 120 Hz | 931.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.787" (20.00mm) | - | Through Hole | |
|

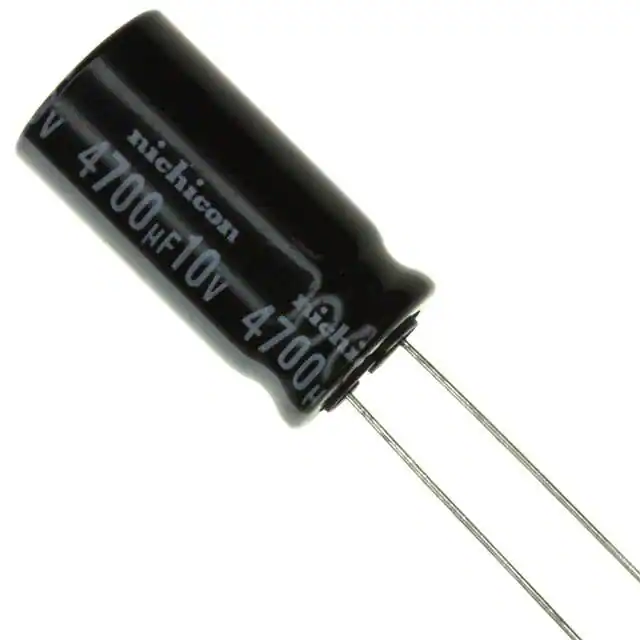

UVZ1A472MHD1TOCAP ALUM 4700UF 20% 10V RADIAL Nichicon |
3,536 |
|
![]() Datasheet |
UVZ | Cut Tape (CT) | Active | 4700 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.26 A @ 120 Hz | 1.449 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
ULH2E120MNL1GSCAP ALUM 12UF 20% 250V SMD Nichicon |
4,122 |
|
![]() Datasheet |
ULH | Tape & Reel (TR) | Active | 12 µF | ±20% | 250 V | - | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 45 mA @ 120 Hz | - | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
![]() |
URZ1A222MHD1TOCAP ALUM 2200UF 20% 10V RADIAL Nichicon |
4,519 |
|
![]() Datasheet |
URZ | Cut Tape (CT) | Active | 2200 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 690 mA @ 120 Hz | 793.5 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.650" (16.50mm) | - | Through Hole |
