Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UPM1E392MHDCAP ALUM 3900UF 20% 25V RADIAL Nichicon |
3,904 |
|
![]() Datasheet |
UPM | Bulk | Not For New Designs | 3900 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.79 A @ 120 Hz | 3.11 A @ 10 kHz | 19 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
UPM1J271MHD1TOCAP ALUM 270UF 20% 63V RADIAL TH Nichicon |
3,566 |
|
![]() Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 270 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1 A @ 120 Hz | 1.34 A @ 10 kHz | 55 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UPM1C182MHD6TNCAP ALUM 1800UF 20% 16V RADIAL Nichicon |
15 |
|
![]() Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 1800 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.53 A @ 120 Hz | 1.7 A @ 10 kHz | 37 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.866" (22.00mm) | - | Through Hole | |
![]() |
URZ2G100MHD1TNCAP ALUM 10UF 20% 400V RADIAL TH Nichicon |
11 |
|
![]() Datasheet |
URZ | Cut Tape (CT) | Active | 10 µF | ±20% | 400 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 160 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.650" (16.50mm) | - | Through Hole | |
|
UHW1J271MPD1TDCAP ALUM 270UF 20% 63V RADIAL TH Nichicon |
2,891 |
|
![]() Datasheet |
UHW | Cut Tape (CT) | Active | 270 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 785 mA @ 120 Hz | 1.57 A @ 100 kHz | 88 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole | |
|
UPT2P560MPDCAP ALUM 56UF 20% 220V RADIAL TH Nichicon |
22 |
|
![]() Datasheet |
UPT | Bulk | Active | 56 µF | ±20% | 220 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 290 mA @ 120 Hz | 464 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.299" (33.00mm) | - | Through Hole | |
![]() |

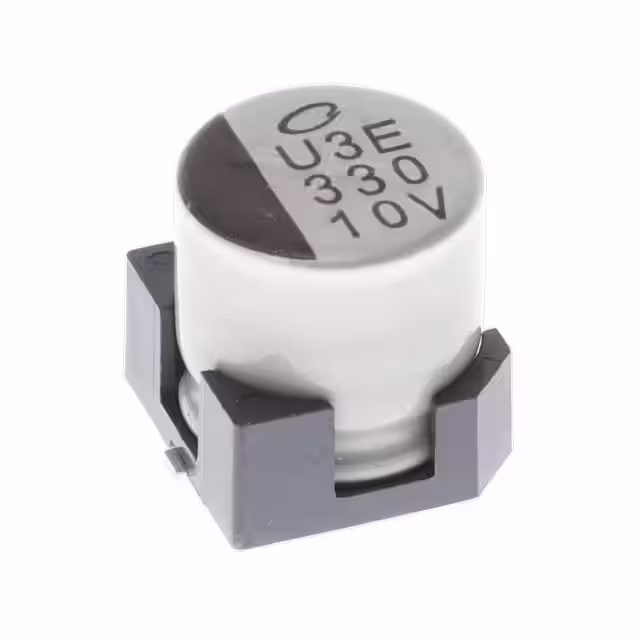

UUE1A331MNS1GSCAP ALUM 330UF 20% 10V SMD Nichicon |
2,090 |
|
![]() Datasheet |
UUE | Tape & Reel (TR) | Active | 330 µF | ±20% | 10 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | Automotive | 127.3 mA @ 120 Hz | 190 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
![]() |
UPS1C682MHDCAP ALUM 6800UF 20% 16V RADIAL Nichicon |
4,537 |
|
![]() Datasheet |
UPS | Bulk | Not For New Designs | 6800 µF | ±20% | 16 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.349 A @ 120 Hz | 2.7 A @ 100 kHz | 30 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|
UPM1H391MHD1TOCAP ALUM 390UF 20% 50V RADIAL TH Nichicon |
23 |
|
![]() Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 390 µF | ±20% | 50 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.12 A @ 120 Hz | 1.44 A @ 10 kHz | 48 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
![]() |
UPA1E122MHD1TOCAP ALUM 1200UF 20% 25V RADIAL Nichicon |
2,410 |
|
![]() Datasheet |
UPA | Cut Tape (CT) | Active | 1200 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.607 A @ 120 Hz | 1.89 A @ 100 kHz | 29 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 0.866" (22.00mm) | - | Through Hole |
