Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

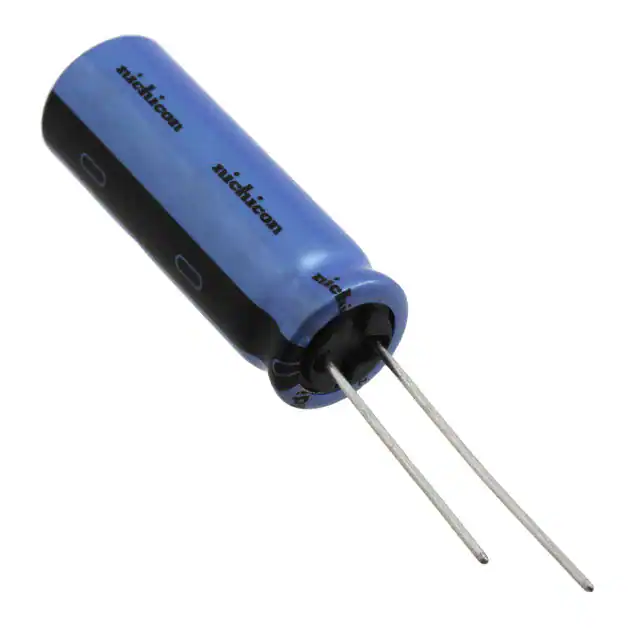

UKT1A472MHDCAP ALUM 4700UF 20% 10V RADIAL Nichicon |
3,255 |
|
![]() Datasheet |
UKT | Bulk | Not For New Designs | 4700 µF | ±20% | 10 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | - | - | Audio | 1.3 A @ 120 Hz | 1.495 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.398" (35.50mm) | - | Through Hole | |
|
UPJ0J472MHD6TNCAP ALUM 4700UF 20% 6.3V RADIAL Nichicon |
6 |
|
![]() Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 4700 µF | ±20% | 6.3 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.72 A @ 120 Hz | 1.92 A @ 10 kHz | 50 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Through Hole | |
|
UBC1C101MNS1GSCAP ALUM 100UF 20% 16V SMD Nichicon |
3,574 |
|
![]() Datasheet |
UBC | Tape & Reel (TR) | Not For New Designs | 100 µF | ±20% | 16 V | - | 1000 Hrs @ 150°C | -40°C ~ 150°C | Polar | AEC-Q200 | Automotive | 73.7 mA @ 120 Hz | 110 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.453" (11.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount | |
|
UPM1J122MHDCAP ALUM 1200UF 20% 63V RADIAL Nichicon |
3,103 |
|
![]() Datasheet |
UPM | Bulk | Not For New Designs | 1200 µF | ±20% | 63 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.21 A @ 120 Hz | 2.51 A @ 10 kHz | 25 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.654" (42.00mm) | - | Through Hole | |
|
UCY2C391MHD9CAP ALUM 390UF 20% 160V RADIAL Nichicon |
2,793 |
|
![]() Datasheet |
UCY | Bulk | Active | 390 µF | ±20% | 160 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 1.51 A @ 120 Hz | 3.02 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole | |
![]() |
UBY1K681MHLCAP ALUM 680UF 20% 80V RADIAL TH Nichicon |
2,656 |
|
![]() Datasheet |
UBY | Bulk | Active | 680 µF | ±20% | 80 V | 38mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.764 A @ 120 Hz | 2.94 A @ 100 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UBX1V221MHLCAP ALUM 220UF 20% 35V RADIAL TH Nichicon |
2,900 |
|
![]() Datasheet |
UBX | Bulk | Active | 220 µF | ±20% | 35 V | - | 1000 Hrs @ 150°C | -55°C ~ 150°C | Polar | AEC-Q200 | Automotive | 300 mA @ 120 Hz | 600 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
|
UBY1K621MHL6CAP ALUM 620UF 20% 80V RADIAL TH Nichicon |
4,535 |
|
![]() Datasheet |
UBY | Bulk | Active | 620 µF | ±20% | 80 V | 48mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.175 A @ 120 Hz | 2.35 A @ 100 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.846" (21.50mm) | - | Through Hole | |
![]() |
UVK2G680MHDCAP ALUM 68UF 20% 400V RADIAL TH Nichicon |
3 |
|
![]() Datasheet |
UVK | Bulk | Active | 68 µF | ±20% | 400 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 340 mA @ 120 Hz | 544 mA @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
![]() |
UPT2D221MHD6CAP ALUM 220UF 20% 200V RADIAL Nichicon |
2,972 |
|
![]() Datasheet |
UPT | Bulk | Active | 220 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 810 mA @ 120 Hz | 1.296 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.299" (33.00mm) | - | Through Hole |
