Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
LLS1E822MELZCAP ALUM 8200UF 20% 25V SNAP TH Nichicon |
2,440 |
|
![]() Datasheet |
LLS | Bulk | Active | 8200 µF | ±20% | 25 V | - | 3000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.86 A @ 120 Hz | 3.289 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
|
UCY2V270MPDCAP ALUM 27UF 20% 350V RADIAL TH Nichicon |
2 |
|
![]() Datasheet |
UCY | Bulk | Active | 27 µF | ±20% | 350 V | - | 12000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | General Purpose | 305 mA @ 120 Hz | 610 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 1.299" (33.00mm) | - | Through Hole | |
![]() |
UVY0J223MHDCAP ALUM 22000UF 20% 6.3V RADIAL Nichicon |
2,973 |
|
![]() Datasheet |
UVY | Bulk | Active | 22000 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 2.28 A @ 120 Hz | 2.622 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.476" (37.50mm) | - | Through Hole | |
|

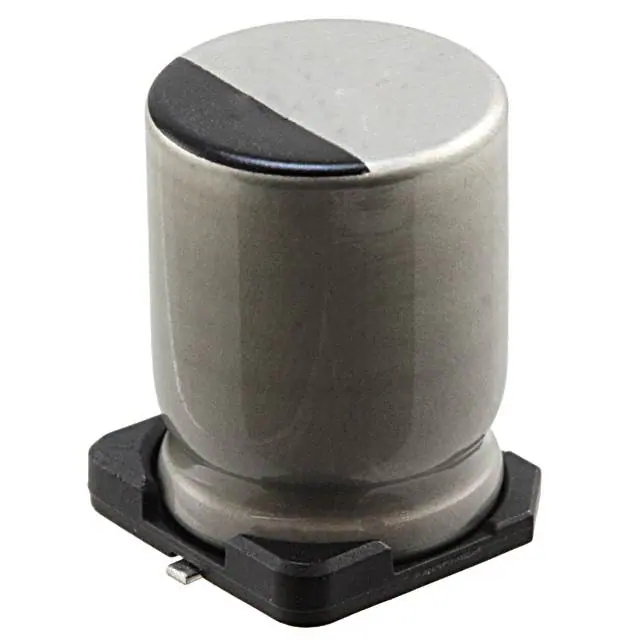

ULH2C270MNL1GSCAP ALUM 27UF 20% 160V SMD Nichicon |
1 |
|
![]() Datasheet |
ULH | Tape & Reel (TR) | Active | 27 µF | ±20% | 160 V | - | 4000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | General Purpose | 65 mA @ 120 Hz | 97.5 mA @ 10 kHz | - | - | 0.394" Dia (10.00mm) | 0.571" (14.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount | |
![]() |
LGY1V392MELZ30CAP ALUM 3900UF 20% 35V SNAP TH Nichicon |
2,546 |
|
![]() Datasheet |
LGY | Bulk | Active | 3900 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 1.84 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|
LGN2P221MELY25CAP ALUM 220UF 20% 220V SNAP TH Nichicon |
2,406 |
|
![]() Datasheet |
LGN | Bulk | Active | 220 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 980 mA @ 120 Hz | 1.47 A @ 50 kHz | - | 0.394" (10.00mm) | 0.787" Dia (20.00mm) | 1.063" (27.00mm) | - | Through Hole | |
![]() |
UVP0J222MHD1TOCAP ALUM 2200UF 20% 6.3V RADIAL Nichicon |
4,604 |
|
![]() Datasheet |
UVP | Cut Tape (CT) | Not For New Designs | 2200 µF | ±20% | 6.3 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 1.16 A @ 120 Hz | 1.334 A @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
![]() |

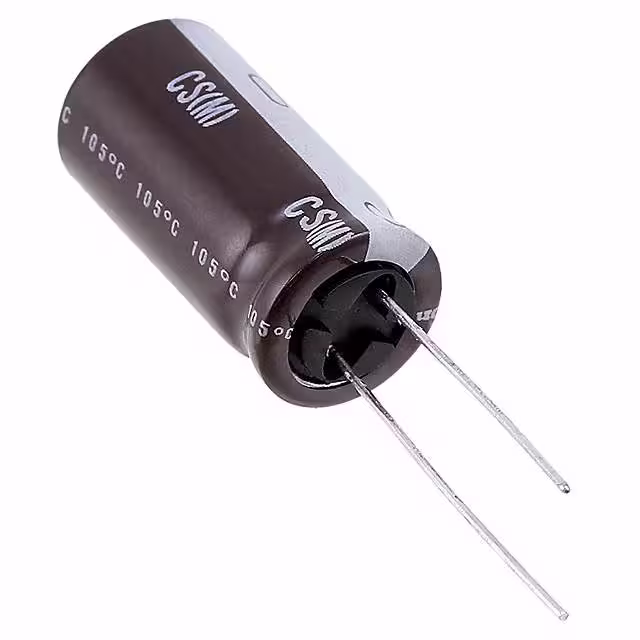

UCS2W150MHD1TOCAP ALUM 15UF 20% 450V RADIAL TH Nichicon |
4,802 |
|
![]() Datasheet |
UCS | Cut Tape (CT) | Active | 15 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 600 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
![]() |
UBW2A331MHDCAP ALUM 330UF 20% 100V RADIAL Nichicon |
2,194 |
|
![]() Datasheet |
UBW | Bulk | Active | 330 µF | ±20% | 100 V | - | 3000 Hrs @ 135°C | -55°C ~ 135°C | Polar | AEC-Q200 | Automotive | 895 mA @ 120 Hz | 1.79 A @ 100 kHz | 79 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.319" (33.50mm) | - | Through Hole | |
![]() |

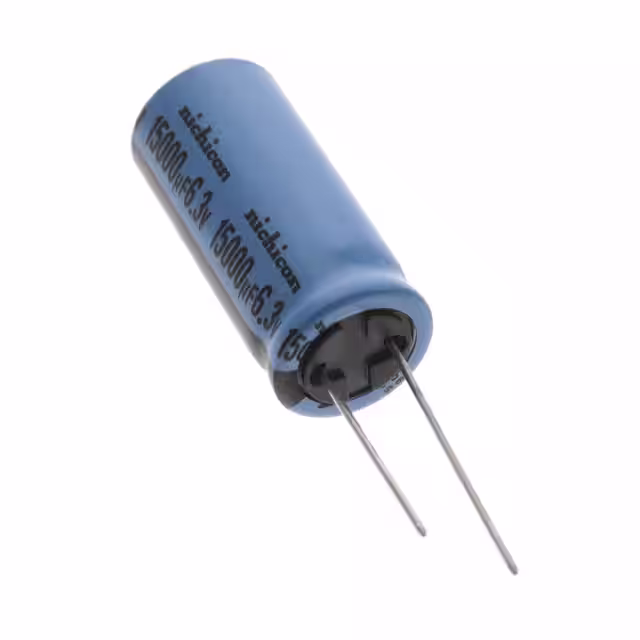

UKT0J153MHDCAP ALUM 15000UF 20% 6.3V RADIAL Nichicon |
3,568 |
|
![]() Datasheet |
UKT | Bulk | Not For New Designs | 15000 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | Audio | 2.01 A @ 120 Hz | 2.312 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.457" (37.00mm) | - | Through Hole |
