Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
UBT1H471MHD1TDCAP ALUM 470UF 20% 50V RADIAL TH Nichicon |
4,007 |
|
![]() Datasheet |
UBT | Cut Tape (CT) | Active | 470 µF | ±20% | 50 V | - | 10000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 825 mA @ 120 Hz | 1.65 A @ 100 kHz | 55 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UHW0J562MHD6CAP ALUM 5600UF 20% 6.3V RADIAL Nichicon |
22 |
|
![]() Datasheet |
UHW | Bulk | Active | 5600 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.56 A @ 120 Hz | 3.2 A @ 100 kHz | 15 mOhms | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
![]() |
UPJ1K391MHD6TNCAP ALUM 390UF 20% 80V RADIAL TH Nichicon |
5 |
|
![]() Datasheet |
UPJ | Cut Tape (CT) | Not For New Designs | 390 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 908 mA @ 120 Hz | 1.17 A @ 10 kHz | 89 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
![]() |
UVK1A682MHD1TNCAP ALUM 6800UF 20% 10V RADIAL Nichicon |
3,276 |
|
![]() Datasheet |
UVK | Cut Tape (CT) | Active | 6800 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 2.25 A @ 120 Hz | 2.5875 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UEP0J222MHDCAP ALUM 2200UF 20% 6.3V RADIAL Nichicon |
16 |
|
![]() Datasheet |
UEP | Bulk | Not For New Designs | 2200 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 820 mA @ 120 Hz | 943 mA @ 10 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UEP0J332MHDCAP ALUM 3300UF 20% 6.3V RADIAL Nichicon |
2,972 |
|
![]() Datasheet |
UEP | Bulk | Not For New Designs | 3300 µF | ±20% | 6.3 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Bi-Polar | - | General Purpose | 1.11 A @ 120 Hz | 1.2765 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.063" (27.00mm) | - | Through Hole | |
![]() |
LGY1V562MELZ35CAP ALUM 5600UF 20% 35V SNAP TH Nichicon |
2,927 |
|
![]() Datasheet |
LGY | Bulk | Active | 5600 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2 A @ 120 Hz | 2.3 A @ 50 kHz | - | 0.394" (10.00mm) | 0.866" Dia (22.00mm) | 1.457" (37.00mm) | - | Through Hole | |
![]() |
LGU1V562MELACAP ALUM 5600UF 20% 35V SNAP TH Nichicon |
4,912 |
|
![]() Datasheet |
LGU | Bulk | Active | 5600 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.04 A @ 120 Hz | 2.346 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.260" (32.00mm) | - | Through Hole | |
|

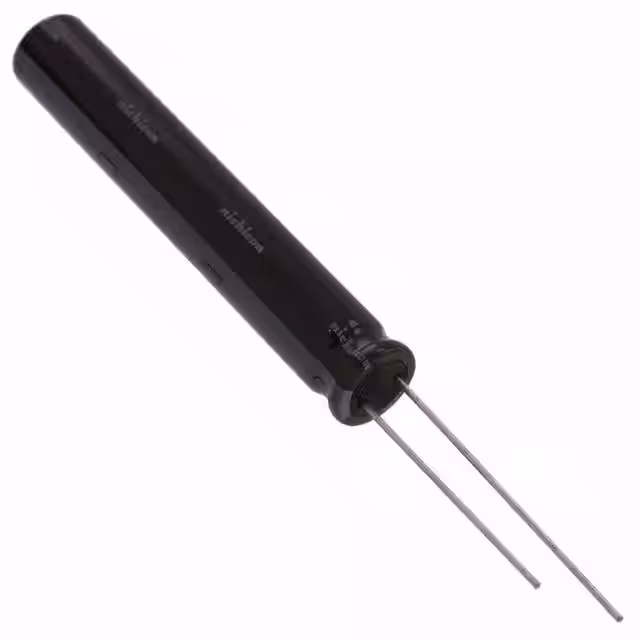

UPZ2W240MND9CAP ALUM 24UF 20% 450V RADIAL TH Nichicon |
4,775 |
|
![]() Datasheet |
UPZ | Bulk | Active | 24 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 250 mA @ 120 Hz | - | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 2.047" (52.00mm) | - | Through Hole | |
![]() |
UBW1A102MPDCAP ALUM 1000UF 20% 10V RADIAL Nichicon |
13 |
|
![]() Datasheet |
UBW | Bulk | Active | 1000 µF | ±20% | 10 V | - | 2000 Hrs @ 135°C | -55°C ~ 135°C | Polar | AEC-Q200 | Automotive | 737 mA @ 120 Hz | 1.1 A @ 100 kHz | 57 mOhms | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.866" (22.00mm) | - | Through Hole |
