Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Capacitance | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Operating Temperature | Polarization | Ratings | Applications | Ripple Current @ Low Frequency | Ripple Current @ High Frequency | Impedance | Lead Spacing | Size / Dimension | Height - Seated (Max) | Surface Mount Land Size | Mounting Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
URS2C151MHD1TNCAP ALUM 150UF 20% 160V RADIAL Nichicon |
12 |
|
![]() Datasheet |
URS | Cut Tape (CT) | Active | 150 µF | ±20% | 160 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 710 mA @ 120 Hz | 1.136 A @ 10 kHz | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.063" (27.00mm) | - | Through Hole | |
![]() |
UHE0J153MHDCAP ALUM 15000UF 20% 6.3V RADIAL Nichicon |
9 |
|
![]() Datasheet |
UHE | Bulk | Active | 15000 µF | ±20% | 6.3 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.376 A @ 120 Hz | 4.22 A @ 100 kHz | 14 mOhms | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 1.398" (35.50mm) | - | Through Hole | |
|
UPM1K181MHD6TNCAP ALUM 180UF 20% 80V RADIAL TH Nichicon |
2,825 |
|
![]() Datasheet |
UPM | Cut Tape (CT) | Not For New Designs | 180 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 545 mA @ 120 Hz | 766 mA @ 10 kHz | 150 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 0.669" (17.00mm) | - | Through Hole | |
![]() |
UKA1A332MHDCAP ALUM 3300UF 20% 10V RADIAL Nichicon |
12 |
|
![]() Datasheet |
UKA | Bulk | Not For New Designs | 3300 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Audio | 1.05 A @ 120 Hz | - | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
![]() |
UKL1J681MHDCAP ALUM 680UF 20% 63V RADIAL TH Nichicon |
7 |
|
![]() Datasheet |
UKL | Bulk | Not For New Designs | 680 µF | ±20% | 63 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 850 mA @ 120 Hz | 1.275 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.299" (33.00mm) | - | Through Hole | |
|
LGN2P391MELA25CAP ALUM 390UF 20% 220V SNAP TH Nichicon |
3,400 |
|
![]() Datasheet |
LGN | Bulk | Active | 390 µF | ±20% | 220 V | - | 3000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.34 A @ 120 Hz | 2.01 A @ 50 kHz | - | 0.394" (10.00mm) | 0.984" Dia (25.00mm) | 1.063" (27.00mm) | - | Through Hole | |
|
UPM1K561MHDCAP ALUM 560UF 20% 80V RADIAL TH Nichicon |
24 |
|
![]() Datasheet |
UPM | Bulk | Not For New Designs | 560 µF | ±20% | 80 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.64 A @ 120 Hz | 2 A @ 10 kHz | 62 mOhms | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.476" (37.50mm) | - | Through Hole | |
![]() |
URZ2D680MHD1TNCAP ALUM 68UF 20% 200V RADIAL TH Nichicon |
3 |
|
![]() Datasheet |
URZ | Cut Tape (CT) | Active | 68 µF | ±20% | 200 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | - | - | 0.295" (7.50mm) | 0.709" Dia (18.00mm) | 0.866" (22.00mm) | - | Through Hole | |
![]() |

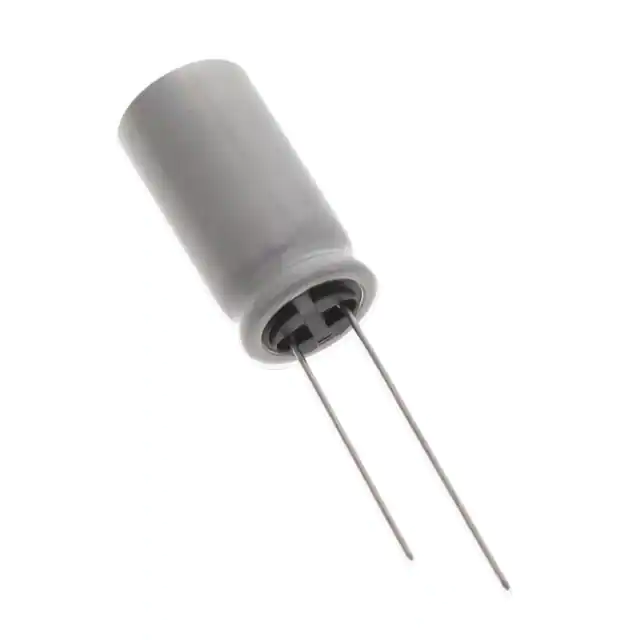

UBY1J561MHLCAP ALUM 560UF 20% 63V RADIAL TH Nichicon |
2 |
|
![]() Datasheet |
UBY | Bulk | Active | 560 µF | ±20% | 63 V | 54mOhm @ 100kHz | 3000 Hrs @ 135°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.26 A @ 120 Hz | 2.52 A @ 100 kHz | - | 0.197" (5.00mm) | 0.492" Dia (12.50mm) | 1.043" (26.50mm) | - | Through Hole | |
![]() |
UPT2P271MHDCAP ALUM 270UF 20% 220V RADIAL Nichicon |
4 |
|
![]() Datasheet |
UPT | Bulk | Active | 270 µF | ±20% | 220 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 880 mA @ 120 Hz | 1.408 A @ 10 kHz | - | 0.295" (7.50mm) | 0.630" Dia (16.00mm) | 1.634" (41.50mm) | - | Through Hole |
