DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KJ05RXTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,885 |
|
Datasheet |
KJ | Tube | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.138" (3.50mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
KR06RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,396 |
|
Datasheet |
KR | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.378" (9.60mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
KJ06RXTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,853 |
|
Datasheet |
KJ | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.138" (3.50mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|

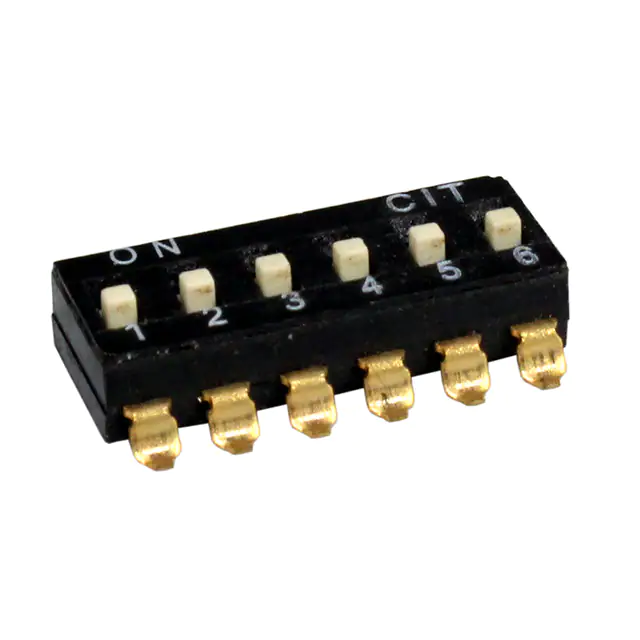

KJ06EXTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
3,397 |
|
Datasheet |
KJ | Tube | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 25mA | 0.161" (4.10mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
KJ05RXRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,794 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.138" (3.50mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
KJ05EXRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,559 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 5 | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 25mA | 0.161" (4.10mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
KJ06RXRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
3,421 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.138" (3.50mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
KJ05RTRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,413 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 5 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.140" (3.55mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | Yes |
|
|
KJ06EXRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
3,802 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 25mA | 0.161" (4.10mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
KJ06RTRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
3,182 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 6 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.140" (3.55mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | Yes |
