DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Part Status | Circuit | Number of Positions | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Current Rating (Amps) | Height Above Board | Mounting Style | Operating Temperature | Termination Style | Features | Pitch | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

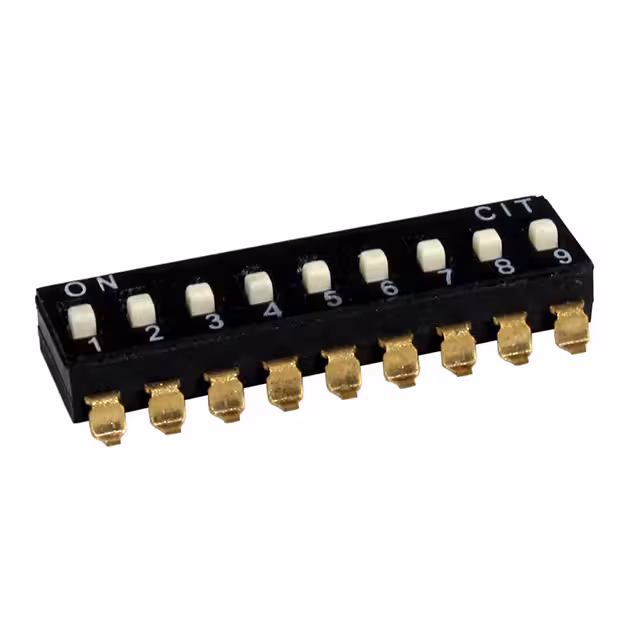

KJ09EXRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,681 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 25mA | 0.161" (4.10mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
KJ09RXRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,410 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 9 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.138" (3.50mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
KR09ETSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
3,931 |
|
Datasheet |
KR | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 25mA | 0.378" (9.60mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
KR09RTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,545 |
|
Datasheet |
KR | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.378" (9.60mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
|
KP10RTSWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
2,657 |
|
Datasheet |
KP | Tube | Active | SPST | 10 | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 25mA | 0.374" (9.50mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
|
KP10ETSWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
3,662 |
|
Datasheet |
KP | Tube | Active | SPST | 10 | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 25mA | 0.374" (9.50mm) | Through Hole, Right Angle | -40°C ~ 85°C | PC Pin | - | 0.100" (2.54mm), Full | Yes |
|
|
KJ09EXTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
2,337 |
|
Datasheet |
KJ | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 25mA | 0.161" (4.10mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
|
KJ09RXTSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,704 |
|
Datasheet |
KJ | Tube | Active | SPST | 9 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.138" (3.50mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|
KJ10RXRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,582 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 10 | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 25mA | 0.138" (3.50mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
|

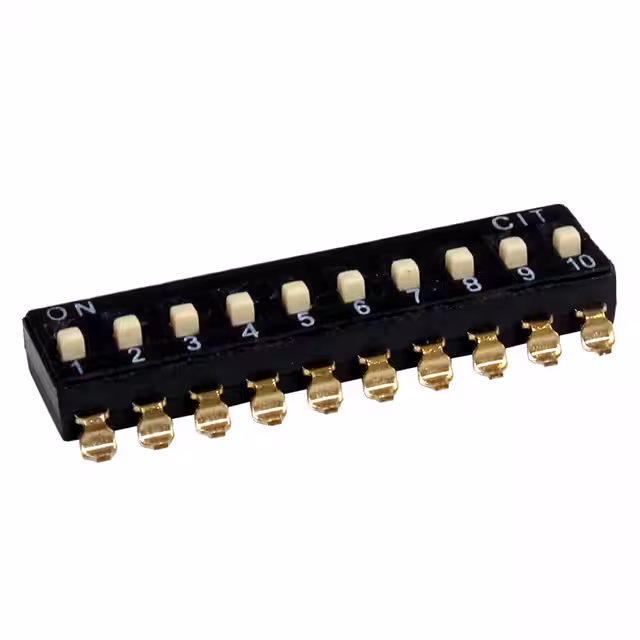

KJ10EXRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
4,179 |
|
Datasheet |
KJ | Tape & Reel (TR) | Active | SPST | 10 | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 25mA | 0.161" (4.10mm) | Surface Mount | -40°C ~ 85°C | Gull Wing | - | 0.100" (2.54mm), Full | No |
