FETs, MOSFETs
| 制造商 | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
全部重置
应用所有
结果:
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APT10078BLLGMOSFET N-CH 1000V 14A TO247 Microchip Technology |
30 | - |
|
Datasheet |
POWER MOS 7® | TO-247-3 | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 14A (Tc) | 10V | 780mOhm @ 7A, 10V | 5V @ 1mA | 95 nC @ 10 V | ±30V | 2525 pF @ 25 V | - | 403W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
APT28M120B2MOSFET N-CH 1200V 29A T-MAX Microchip Technology |
56 | - |
|
Datasheet |
POWER MOS 8™ | TO-247-3 Variant | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 29A (Tc) | 10V | 560mOhm @ 14A, 10V | 5V @ 2.5mA | 300 nC @ 10 V | ±30V | 9670 pF @ 25 V | - | 1135W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | T-MAX™ [B2] |
|
APT10050LVRGMOSFET N-CH 1000V 21A TO264 Microchip Technology |
25 | - |
|
Datasheet |
POWER MOS V® | TO-264-3, TO-264AA | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 21A (Tc) | - | 500mOhm @ 500mA, 10V | 4V @ 2.5mA | 500 nC @ 10 V | - | 7900 pF @ 25 V | - | - | - | - | - | Through Hole | TO-264 [L] |
|
MSC040SMA120BSICFET N-CH 1200V 66A TO247-3 Microchip Technology |
35 | - |
|
Datasheet |
- | TO-247-3 | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 66A (Tc) | 20V | 50mOhm @ 40A, 20V | 2.7V @ 2mA | 137 nC @ 20 V | +23V, -10V | 1990 pF @ 1000 V | - | 323W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|

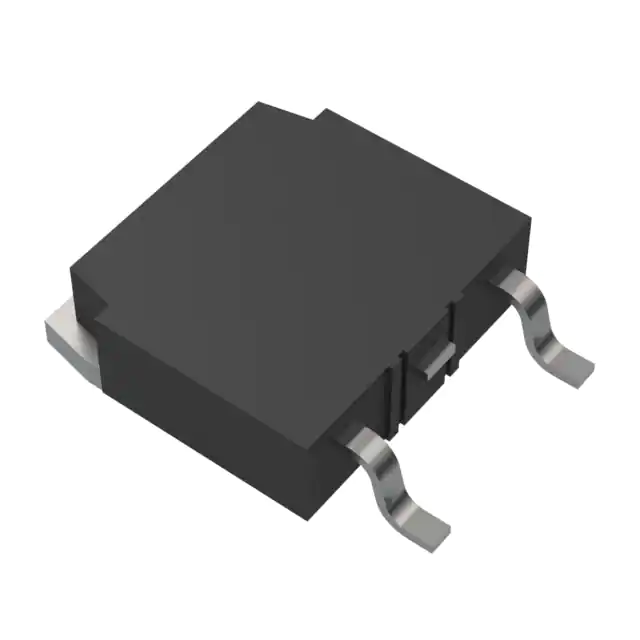

MSC040SMA120SSICFET N-CH 1200V 64A TO268 Microchip Technology |
12 | - |
|
Datasheet |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 64A (Tc) | 20V | 50mOhm @ 40A, 20V | 2.6V @ 2mA | 137 nC @ 20 V | +23V, -10V | 1990 pF @ 1000 V | - | 303W | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D3PAK |
|
APT5010JVRMOSFET N-CH 500V 44A ISOTOP Microchip Technology |
12 | - |
|
Datasheet |
POWER MOS V® | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 44A (Tc) | - | 100mOhm @ 500mA, 10V | 4V @ 2.5mA | 470 nC @ 10 V | - | 8900 pF @ 25 V | - | - | - | - | - | Chassis Mount | ISOTOP® |
|
|
APT5010JVFRMOSFET N-CH 500V 44A ISOTOP Microchip Technology |
20 | - |
|
Datasheet |
POWER MOS V® | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 44A (Tc) | - | 100mOhm @ 500mA, 10V | 4V @ 2.5mA | 470 nC @ 10 V | - | 8900 pF @ 25 V | - | - | - | - | - | Chassis Mount | ISOTOP® |
|
MSC035SMA170SMOSFET SIC 1700V 35 MOHM TO-268 Microchip Technology |
23 | - |
|
Datasheet |
- | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Bulk | Active | N-Channel | SiCFET (Silicon Carbide) | 1700 V | 59A (Tc) | 20V | 45mOhm @ 30A, 20V | 3.25V @ 2.5mA (Typ) | 178 nC @ 20 V | +23V, -10V | 3300 pF @ 1000 V | - | 278W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D3PAK |
|
APT50M65JLLMOSFET N-CH 500V 58A ISOTOP Microchip Technology |
20 | - |
|
Datasheet |
POWER MOS 7® | SOT-227-4, miniBLOC | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 58A (Tc) | 10V | 65mOhm @ 29A, 10V | 5V @ 2.5mA | 141 nC @ 10 V | ±30V | 7010 pF @ 25 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | ISOTOP® |
|

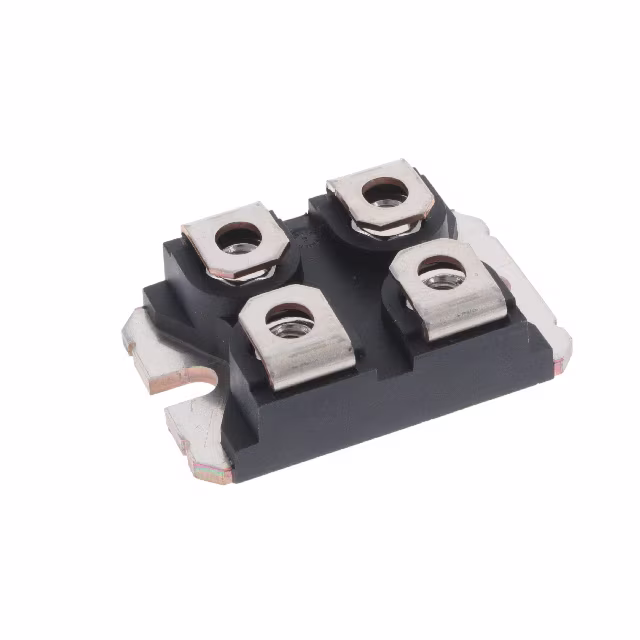

MSC40SM120JCU3SICFET N-CH 1.2KV 55A SOT227 Microchip Technology |
66 | - |
|
Datasheet |
- | SOT-227-4, miniBLOC | Tube | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 55A (Tc) | 20V | 50mOhm @ 40A, 20V | 2.7V @ 1mA | 137 nC @ 20 V | +25V, -10V | 1990 pF @ 1000 V | - | 245W (Tc) | -55°C ~ 150°C (TJ) | - | - | Chassis Mount | SOT-227 (ISOTOP®) |
