Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

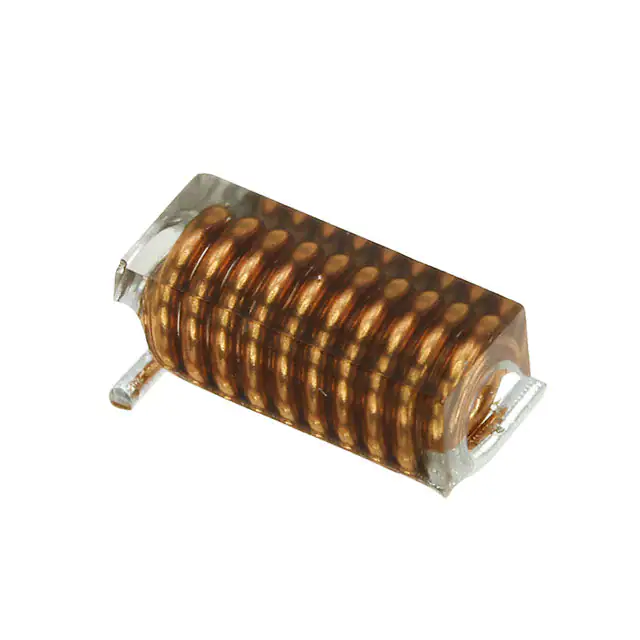

744914143FIXED IND 43NH 4A 7.9 MOHM SMD Würth Elektronik |
892 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 43 nH | ±5% | 4 A | - | Unshielded | 7.9mOhm Max | 106 @ 150MHz | 1.2GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
744911112FIXED IND 12.55NH 1.6A 14MOHM SM Würth Elektronik |
767 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 12.55 nH | ±5% | 1.6 A | - | Unshielded | 14mOhm Max | 100 @ 800MHz | 4.6GHz | AEC-Q200 | -40°C ~ 125°C | 800 MHz | - | Surface Mount | 1340 | 0.159" L x 0.056" W (4.04mm x 1.42mm) | 0.060" (1.52mm) |
|

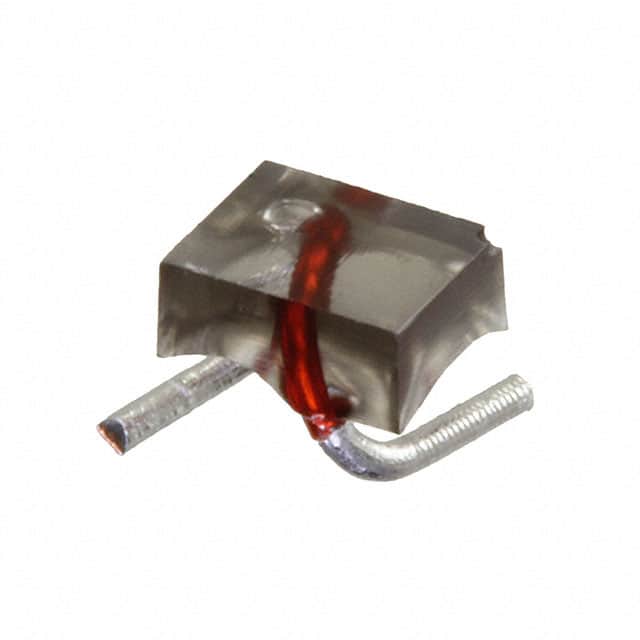

744913025FIXED IND 2.5NH 4A 1.1 MOHM SMD Würth Elektronik |
500 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 2.5 nH | ±5% | 4 A | - | Unshielded | 1.1mOhm Max | 140 @ 150MHz | 12.5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|
|
744910038FIXED IND 3.85NH 1.6A 6 MOHM SMD Würth Elektronik |
458 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 3.85 nH | ±5% | 1.6 A | - | Unshielded | 6mOhm Max | 100 @ 800MHz | 7.5GHz | AEC-Q200 | -40°C ~ 125°C | 800 MHz | - | Surface Mount | 1322 | 0.087" L x 0.056" W (2.21mm x 1.42mm) | 0.060" (1.52mm) |
|

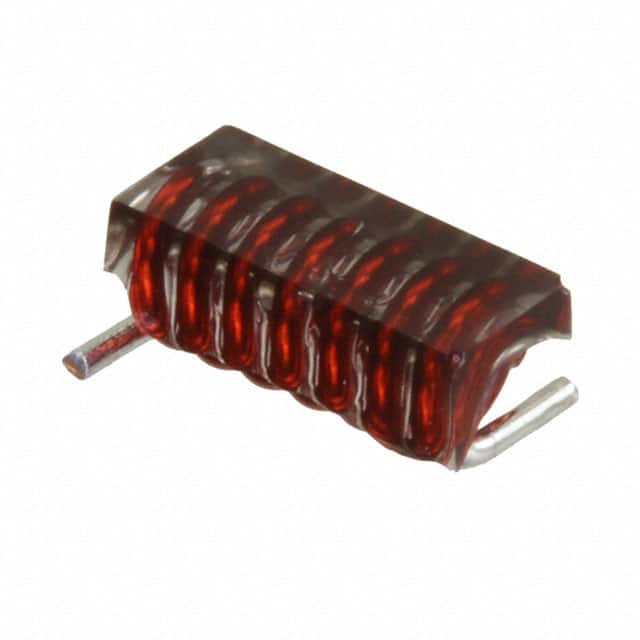

744914122FIXED IND 22NH 4A 5.2 MOHM SMD Würth Elektronik |
368 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 22 nH | ±5% | 4 A | - | Unshielded | 5.2mOhm Max | 102 @ 150MHz | 2.1GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|

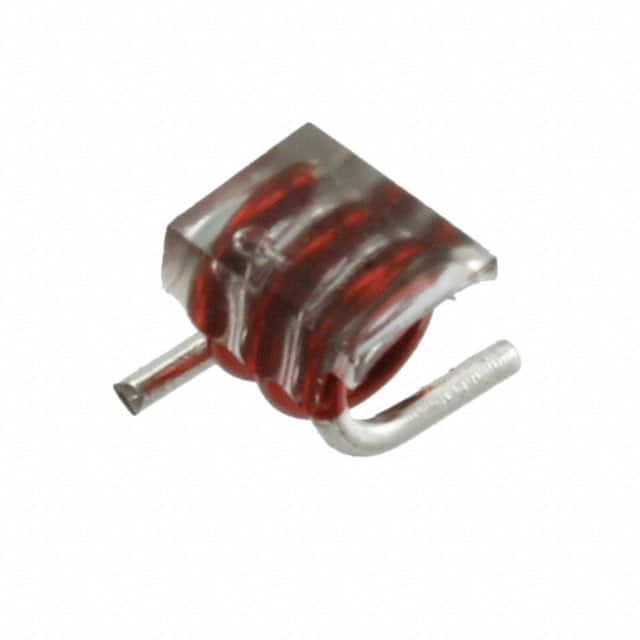

744913080FIXED IND 8NH 4A 2.6 MOHM SMD Würth Elektronik |
60 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 8 nH | ±5% | 4 A | - | Unshielded | 2.6mOhm Max | 140 @ 150MHz | 5GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | 0.125" (3.18mm) |
|

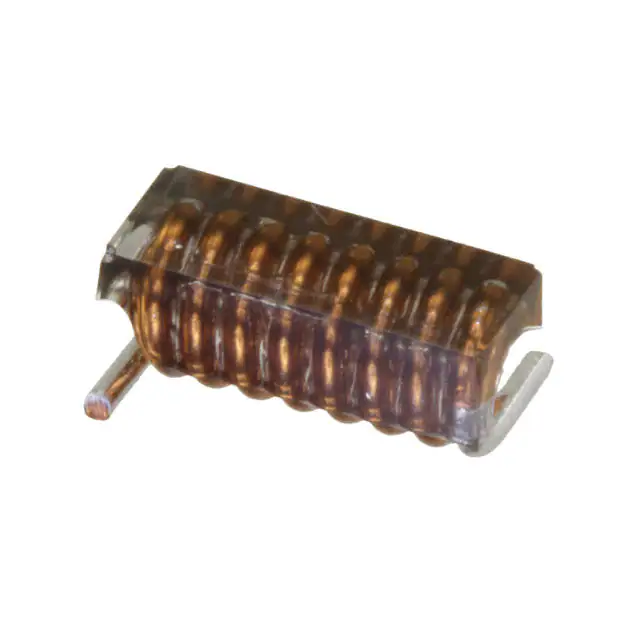

744914128FIXED IND 28NH 4A 6 MOHM SMD Würth Elektronik |
47 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 28 nH | ±5% | 4 A | - | Unshielded | 6mOhm Max | 105 @ 150MHz | 1.8GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|

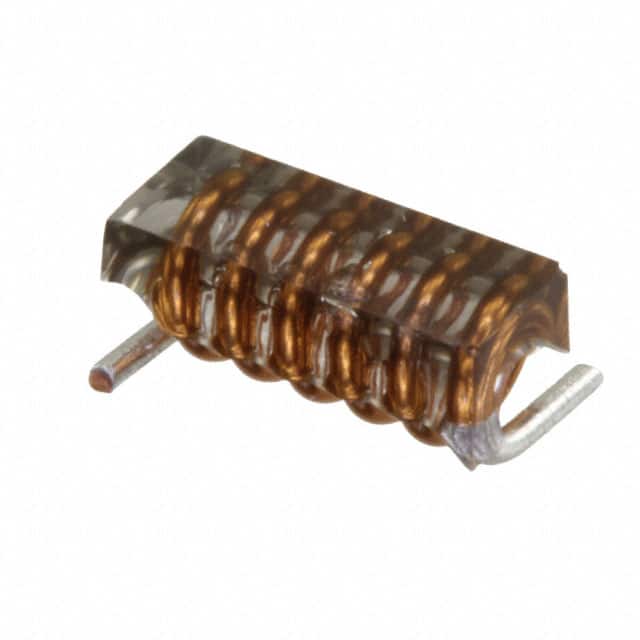

744914117FIXED IND 17.5NH 4A 4.5 MOHM SMD Würth Elektronik |
38 |
|
Datasheet |
WE-CAIR | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 17.5 nH | ±5% | 4 A | - | Unshielded | 4.5mOhm Max | 100 @ 150MHz | 2.2GHz | AEC-Q200 | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.270" L x 0.120" W (6.86mm x 3.05mm) | 0.125" (3.18mm) |
|
7447462152FIXED IND 1.5MH 190MA 8 OHM TH Würth Elektronik |
523 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±5% | 190 mA | 200mA | Unshielded | 8Ohm Max | - | 1.4MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
|
|
7447462047FIXED IND 4.7UH 4.2A 30 MOHM TH Würth Elektronik |
488 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.2 A | 3.7A | Unshielded | 30mOhm Max | - | 40MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.236" Dia (6.00mm) | 0.335" (8.50mm) |
