Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

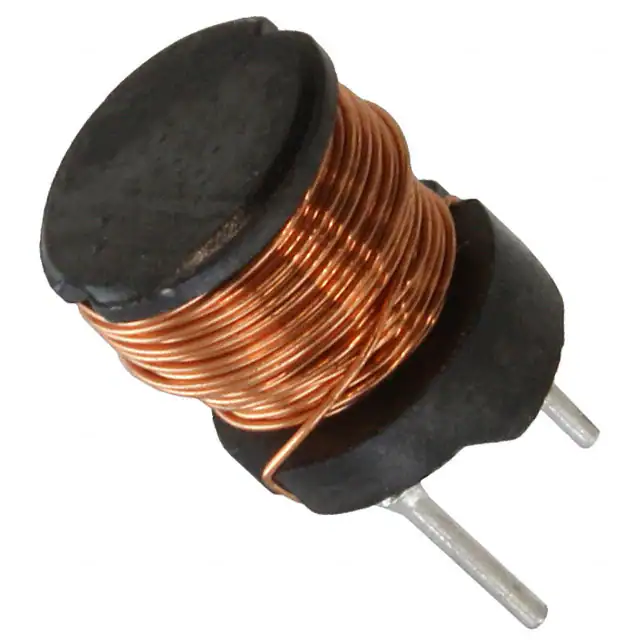

744772102FIXED IND 1MH 300MA 1.84 OHM TH Würth Elektronik |
272 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 300 mA | 500mA | Unshielded | 1.84Ohm Max | - | 1.6MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
7447728215FIXED IND 820UH 360MA 1.56OHM TH Würth Elektronik |
247 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±5% | 360 mA | 700mA | Unshielded | 1.56Ohm Max | - | 1.7MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
744772820FIXED IND 82UH 1.45A 160 MOHM TH Würth Elektronik |
186 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 1.45 A | 1.9A | Unshielded | 160mOhm Max | - | 6.1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
744772121FIXED IND 120UH 850MA 220MOHM TH Würth Elektronik |
180 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 850 mA | 1A | Unshielded | 220mOhm Max | - | 5.6MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|

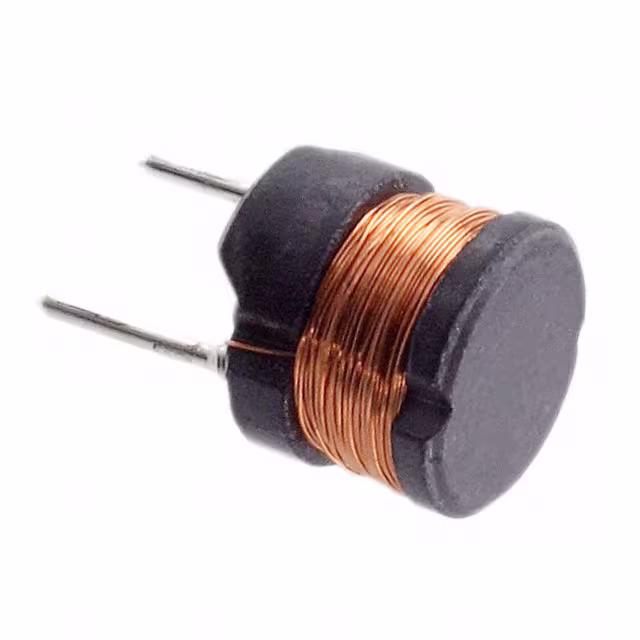

7447721047FIXED IND 4.7MH 200MA 15 OHM TH Würth Elektronik |
178 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±5% | 200 mA | 175mA | Unshielded | 15Ohm Max | - | 950kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
744772033FIXED IND 3.3UH 6.1A 13 MOHM TH Würth Elektronik |
171 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 6.1 A | 6.3A | Unshielded | 13mOhm Max | - | 46.7MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
744772068FIXED IND 6.8UH 3.8A 25 MOHM TH Würth Elektronik |
150 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.8 A | 6.5A | Unshielded | 25mOhm Max | - | 25.6MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|

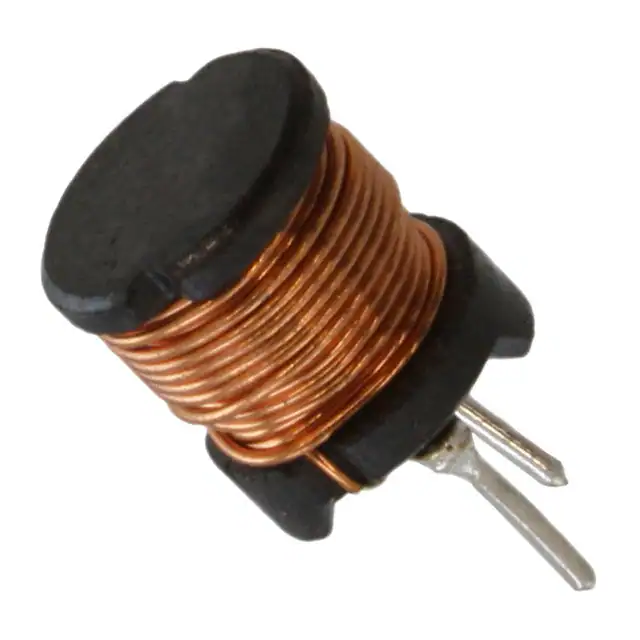

7447720151FIXED IND 150UH 1.1A 300 MOHM TH Würth Elektronik |
140 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 1.1 A | 1.2A | Unshielded | 300mOhm Max | - | 4.4MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
744772221FIXED IND 220UH 950MA 450MOHM TH Würth Elektronik |
108 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 950 mA | 1.2A | Unshielded | 450mOhm Max | - | 3.7MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|

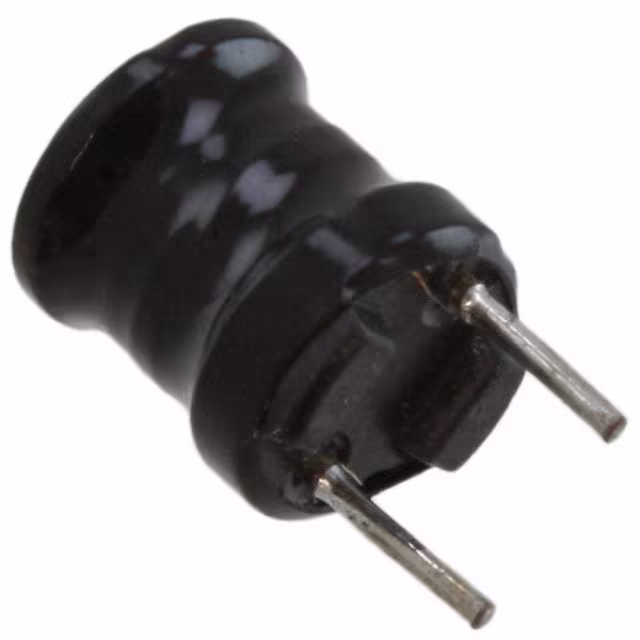

744742223FIXED IND 22MH 90MA 55 OHM TH Würth Elektronik |
104 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±5% | 90 mA | 110mA | Unshielded | 55Ohm Max | - | 330kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.335" Dia (8.50mm) | 0.236" (6.00mm) |
