Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744772681FIXED IND 680UH 350MA 1.4 OHM TH Würth Elektronik |
92 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 350 mA | 600mA | Unshielded | 1.4Ohm Max | - | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
744772560FIXED IND 56UH 2A 120 MOHM TH Würth Elektronik |
90 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 2 A | 2.4A | Unshielded | 120mOhm Max | - | 7.7MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|

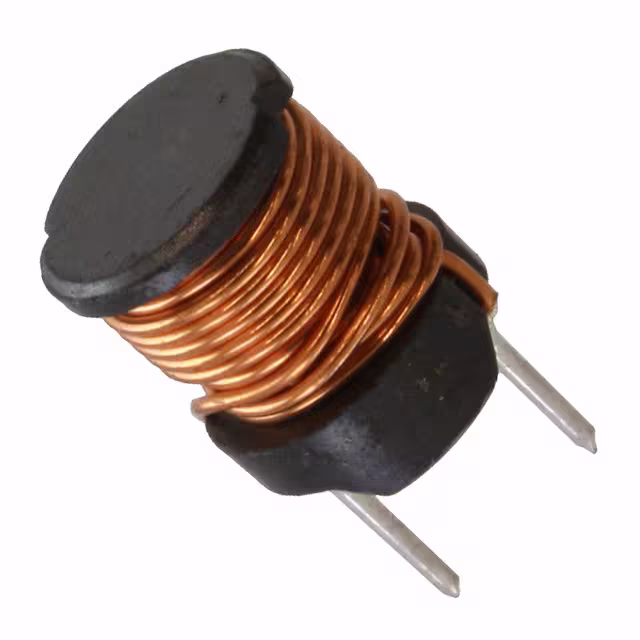

744772390FIXED IND 39UH 2.5A 90 MOHM TH Würth Elektronik |
65 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±10% | 2.5 A | 2.5A | Unshielded | 90mOhm Max | - | 9.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
74406043047FIXED IND 4.7UH 2.3A 51 MOHM SMD Würth Elektronik |
371 |
|
Datasheet |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2.3 A | 1.62A | Shielded | 51mOhm Max | - | 81MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4828 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
74406043027FIXED IND 2.7UH 2.93A 32MOHM SMD Würth Elektronik |
79 |
|
Datasheet |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±30% | 2.93 A | 2.07A | Shielded | 32mOhm Max | - | 119MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4828 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
74404031047AFIXED IND 4.7UH 1.4A 139MOHM SMD Würth Elektronik |
42 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 1.3 A | 1.2A | Shielded | 139mOhm | - | 95MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
74404024180FIXED IND 18UH 460MA 830MOHM SMD Würth Elektronik |
32 |
|
Datasheet |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 460 mA | 650mA | Shielded | 830mOhm | - | 26MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
744732681FIXED IND 680UH 420MA 2.2 OHM TH Würth Elektronik |
100 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 420 mA | 750mA | Unshielded | 2.2Ohm Max | - | 2.3MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
744732470FIXED IND 47UH 1.8A 140 MOHM TH Würth Elektronik |
90 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 1.8 A | 1.9A | Unshielded | 140mOhm Max | - | 9.6MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
|
|
744732471FIXED IND 470UH 450MA 1.7 OHM TH Würth Elektronik |
62 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 450 mA | 900mA | Unshielded | 1.7Ohm Max | - | 2.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.295" (7.50mm) |
