Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74406032220FIXED IND 22UH 660MA 481MOHM SMD Würth Elektronik |
971 |
|
Datasheet |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 660 mA | 460mA | Shielded | 481mOhm Max | - | 37MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3818 | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
|
74406032470FIXED IND 47UH 450MA 1 OHM SMD Würth Elektronik |
948 |
|
Datasheet |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 450 mA | 340mA | Shielded | 1Ohm Max | - | 25MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3818 | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
|
74406042033FIXED IND 3.3UH 2.72A 61MOHM SMD Würth Elektronik |
889 |
|
Datasheet |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.72 A | 2.12A | Shielded | 61mOhm Max | - | 99MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4818 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
|
74406032047FIXED IND 4.7UH 1.36A 110MOHM SM Würth Elektronik |
781 |
|
Datasheet |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.36 A | 1.07A | Shielded | 110mOhm Max | - | 99MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3818 | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|
|
74406042101FIXED IND 100UH 420MA 1.386 OHM Würth Elektronik |
780 |
|
Datasheet |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 420 mA | 320mA | Shielded | 1.386Ohm Max | - | 15MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4818 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
|
74406042068FIXED IND 6.8UH 2.04A 97MOHM SMD Würth Elektronik |
372 |
|
Datasheet |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 2.04 A | 1.26A | Shielded | 97mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4818 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
|
74406042470FIXED IND 47UH 630MA 627MOHM SMD Würth Elektronik |
180 |
|
Datasheet |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 630 mA | 470mA | Shielded | 627mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4818 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
|
74406032330FIXED IND 33UH 540MA 715MOHM SMD Würth Elektronik |
83 |
|
Datasheet |
WE-LQFS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 540 mA | 400mA | Shielded | 715mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3818 | 0.150" L x 0.150" W (3.80mm x 3.80mm) | 0.079" (2.00mm) |
|

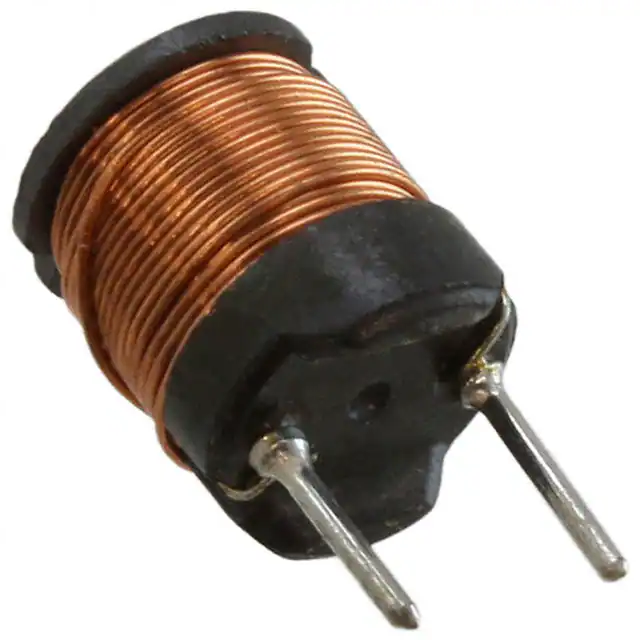

744772471FIXED IND 470UH 430MA 890MOHM TH Würth Elektronik |
364 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 430 mA | 800mA | Unshielded | 890mOhm Max | - | 2.6MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|

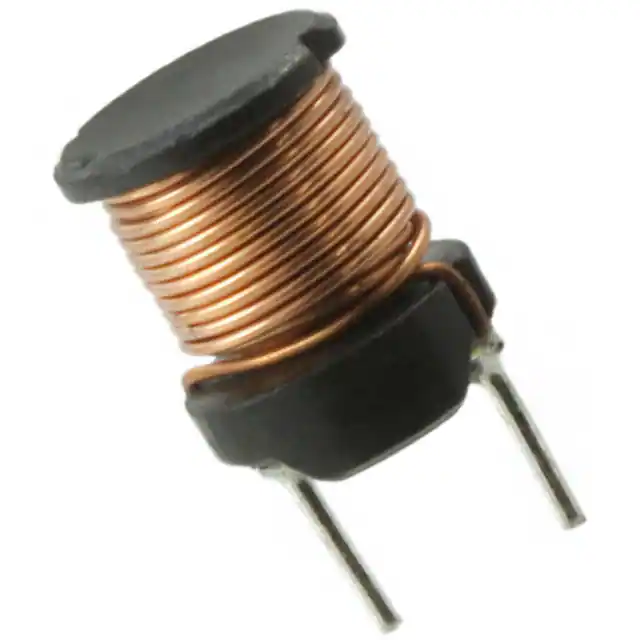

744772680FIXED IND 68UH 1.7A 140 MOHM TH Würth Elektronik |
327 |
|
Datasheet |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.7 A | 2.1A | Unshielded | 140mOhm Max | - | 6.4MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
